pH in pulp and paper industry: how pH is used, controlled and measured

Why pH matters in the pulp and paper industry?

pH matters in the pulp and paper industry because it directly controls lignin removal efficiency, bleaching chemistry performance, fiber swelling and bonding, sizing reactions (AKD, ASA), filler retention (CaCO₃), enzyme activity, pitch and deposit control, corrosion behavior, microbial growth, and wastewater treatment efficiency, making it a central chemical parameter across pulping, bleaching, stock preparation, papermaking, coating, and effluent treatment processes.

• Lignin removal efficiency: During kraft or sulfite pulping, alkaline pH (often 12–14 in kraft cooking) promotes lignin dissolution while preserving cellulose fiber strength.
• Bleaching chemistry performance: Oxidizing bleaching agents such as chlorine dioxide (ClO₂), hydrogen peroxide (H₂O₂), and oxygen require controlled pH windows to maximize brightness and minimize fiber damage.
• Fiber swelling and bonding: pH influences fiber charge and swelling behavior, affecting fiber flexibility, sheet formation, and final paper strength.
• Sizing reactions: Internal sizing agents such as AKD (alkyl ketene dimer) and ASA (alkenyl succinic anhydride) perform optimally within defined pH ranges (typically neutral to slightly alkaline).
• Filler retention: Calcium carbonate fillers require alkaline conditions (often pH 7–9) to remain stable and improve paper opacity and brightness.
• Enzyme activity: Enzymes used for fiber modification or pitch control operate within narrow pH ranges where catalytic efficiency is maximized.
• Pitch and deposit control: pH influences resin and fatty acid solubility, helping prevent sticky deposits on machine surfaces.
• Corrosion behavior: Extremely acidic or alkaline conditions accelerate corrosion of pipes, pumps, and process vessels.
• Microbial growth: pH conditions affect bacterial and fungal activity in mill water circuits, influencing slime formation and system hygiene.
• Wastewater treatment efficiency: Biological treatment and chemical precipitation processes depend on controlled pH (commonly 6.0–9.0) to meet environmental discharge requirements.

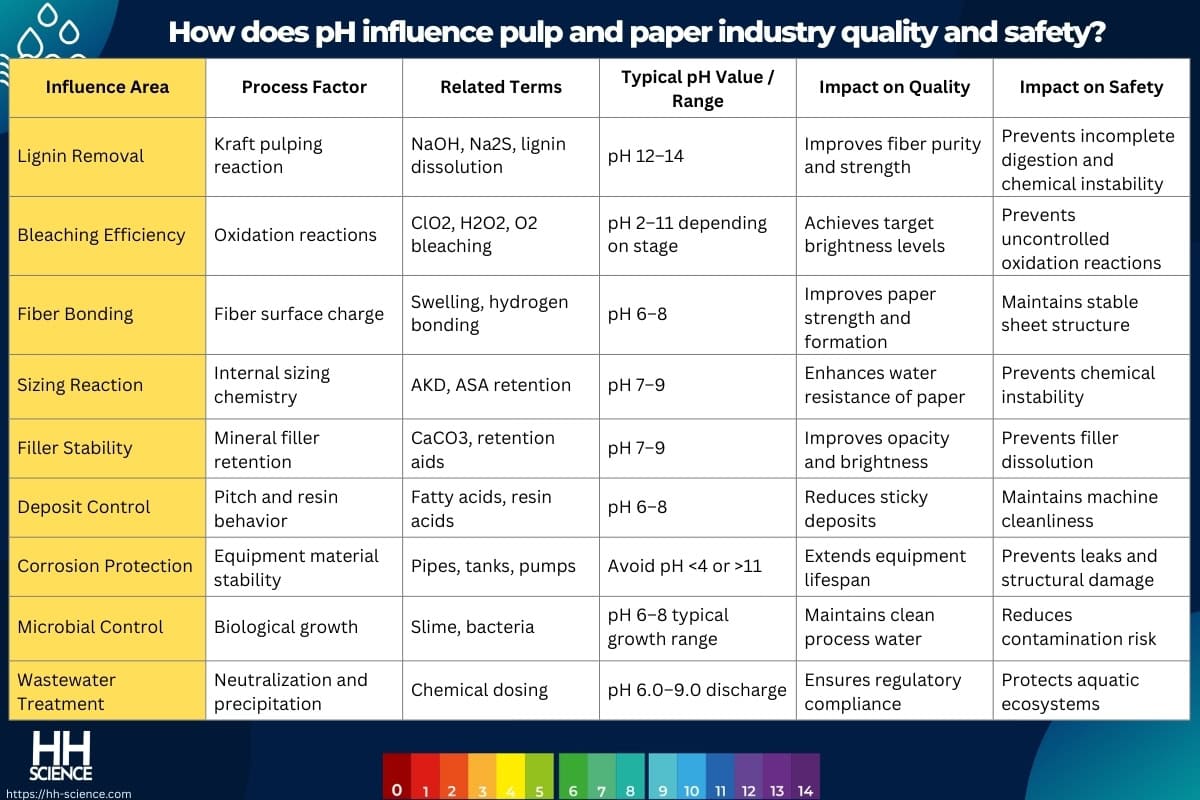

How does pH influence pulp and paper industry quality and safety?

pH influences pulp and paper industry quality and safety because it governs lignin solubility, bleaching reaction efficiency, fiber surface chemistry, filler stability (CaCO₃), sizing chemistry (AKD, ASA), enzyme activity, microbial growth control, corrosion behavior, and wastewater neutralization, all of which directly affect paper strength, brightness, machine runnability, chemical consumption, worker safety, and regulatory compliance. Across pulping, bleaching, stock preparation, papermaking, coating, and effluent treatment systems, deviations outside target ranges (often ±0.05–0.10 pH in controlled stages) can lead to reduced product quality, increased deposits, equipment damage, unstable chemical reactions, or environmental discharge violations.

Why are pulp and paper industry systems sensitive to pH deviations?

Pulp and paper industry systems are highly sensitive to pH deviations because pH directly controls lignin solubility during pulping, oxidation efficiency in bleaching reactions (ClO₂, H₂O₂, O₂), fiber surface charge and swelling behavior, filler stability (CaCO₃), sizing chemistry (AKD, ASA hydrolysis), enzyme activity ranges, microbial growth conditions, corrosion rates, and wastewater neutralization equilibria, all of which operate within defined chemical windows across pulping, stock preparation, papermaking, coating, and effluent treatment processes. In many stages, optimal operation depends on controlled ranges such as pH 12–14 for kraft pulping, pH 2–5 or 9–11 depending on bleaching stage, pH 7–9 for sizing and filler stability, and pH 6.0–9.0 for effluent discharge compliance, meaning even moderate deviations (±0.1–0.3 pH in controlled stages) can shift reaction kinetics, destabilize additives, or alter fiber chemistry.

If pH is not correctly controlled, lignin removal efficiency during pulping may decrease, resulting in darker pulp and higher chemical consumption in downstream bleaching stages. In bleaching systems, incorrect pH can cause inefficient oxidation reactions or excessive cellulose degradation, reducing fiber strength and final paper quality. In papermaking, pH outside the neutral to slightly alkaline range can destabilize calcium carbonate fillers and cause hydrolysis of sizing agents (AKD, ASA), leading to poor water resistance, sheet defects, and increased additive consumption. Incorrect pH also promotes pitch deposition, scaling, and microbial slime formation in white water circuits, which can cause machine downtime, sheet breaks, and maintenance costs. Additionally, extreme acidic or alkaline conditions accelerate corrosion of stainless steel equipment and pipelines, while improper pH in wastewater treatment systems can prevent effective coagulation or biological treatment, leading to non-compliant discharge outside the typical 6.0–9.0 regulatory range.

Typical pH ranges and control targets in the pulp and paper industry

Typical pH ranges and control targets in the pulp and paper industry vary across pulping, bleaching, stock preparation, papermaking, coating, chemical recovery, and wastewater treatment processes, where each stage operates within defined chemical windows to optimize lignin removal, bleaching efficiency, fiber swelling, filler stability (CaCO₃), sizing reactions (AKD, ASA), enzyme activity, deposit control, and environmental discharge compliance (commonly pH 6.0–9.0). Understanding these target ranges, tolerance bands (often ±0.05–0.10 pH in controlled process loops), and their relationship to reaction kinetics, chemical equilibrium, and additive performance provides the basis for detailed analysis of each process stage in the sections that follow.

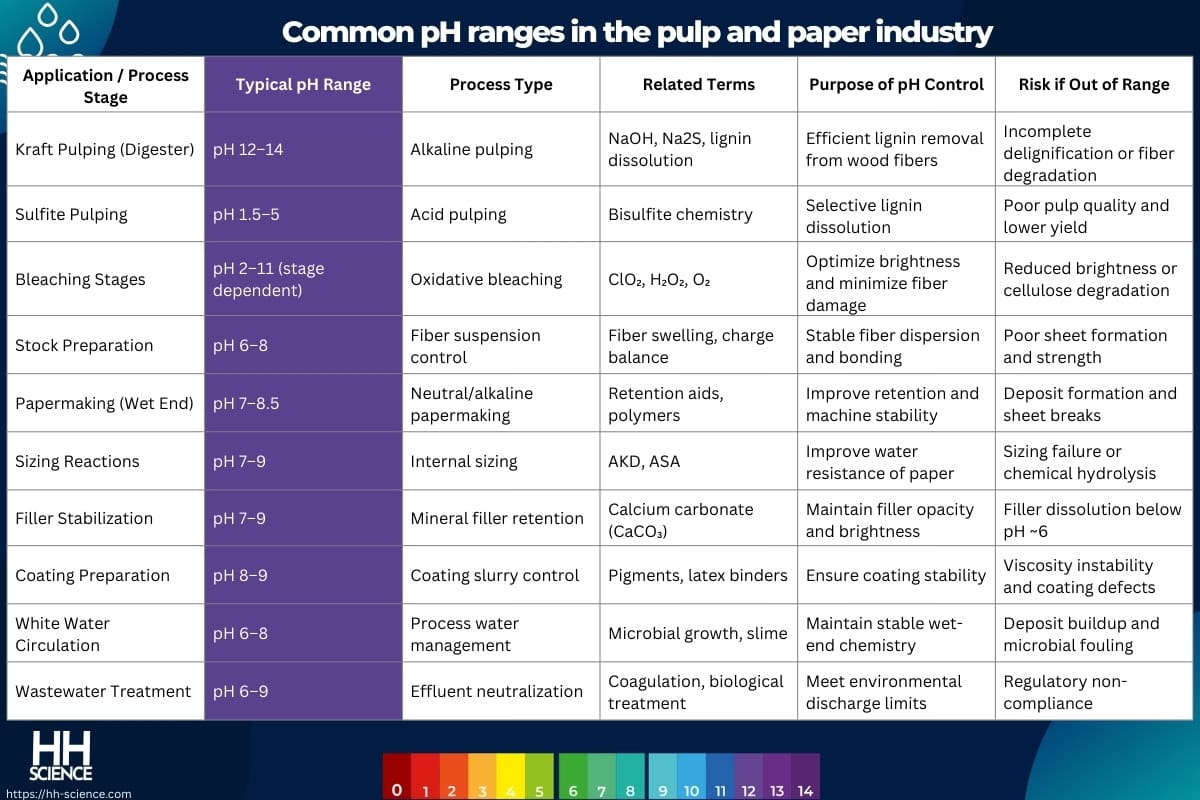

Common pH ranges in the pulp and paper industry

Common pH ranges in the pulp and paper industry span from strongly acidic conditions (pH 2–5) used in certain bleaching stages to highly alkaline environments (pH 12–14) in kraft pulping, with neutral to mildly alkaline ranges (pH 6–9) dominating papermaking, filler stabilization, sizing reactions, and wastewater treatment. These ranges are defined by lignin dissolution chemistry, oxidizing bleaching agent stability (ClO₂, H₂O₂, O₂), calcium carbonate filler stability (CaCO₃ dissolves below ~pH 6), sizing agent reactivity (AKD/ASA optimal near neutral–alkaline), enzyme activity windows, microbial control in white water systems, and environmental discharge regulations (typically pH 6.0–9.0).

Factors that define pH control targets

pH control targets in the pulp and paper industry are defined by fiber chemistry, lignin solubility, bleaching reagent stability, filler chemistry (CaCO₃ stability), sizing reactions (AKD, ASA hydrolysis), enzyme activity windows, microbial growth potential, corrosion risk, process stage requirements (pulping, bleaching, wet-end papermaking, coating, wastewater treatment), temperature conditions (often 40–90 °C in pulp processes), water chemistry and ionic strength, and environmental discharge regulations (commonly pH 6.0–9.0), because each of these factors influences chemical equilibria, reaction kinetics, fiber properties, additive performance, and operational safety.

1. Fiber chemistry: The surface charge and swelling behavior of cellulose fibers change with pH, affecting fiber bonding, paper strength, and sheet formation.
2. Lignin solubility: Alkaline conditions (often pH 12–14 in kraft pulping) promote lignin dissolution from wood chips while preserving cellulose fibers.
3. Bleaching reagent stability: Oxidizing agents such as chlorine dioxide (ClO₂), hydrogen peroxide (H₂O₂), and oxygen require specific pH windows to maximize bleaching efficiency and prevent fiber damage.
4. Filler chemistry: Calcium carbonate fillers remain stable at alkaline pH (typically above ~7), while acidic conditions can dissolve the filler and reduce paper opacity and brightness.
5. Sizing reactions: Internal sizing agents like AKD and ASA react optimally near neutral to slightly alkaline pH, where hydrolysis and retention performance are balanced.
6. Enzyme activity: Enzymes used for pitch control, fiber modification, or deinking operate effectively only within specific pH ranges where catalytic activity is highest.
7. Microbial growth potential: Neutral pH environments (around 6–8) favor bacterial and fungal growth, requiring pH monitoring to manage slime and biofilm formation in white water systems.
8. Corrosion risk: Extremely acidic or highly alkaline conditions accelerate corrosion of stainless steel equipment, pumps, and piping systems.
9. Process stage requirements: Each production stage—pulping, bleaching, stock preparation, papermaking, coating, and effluent treatment—has different optimal pH windows based on its chemical reactions.
10. Temperature conditions: Elevated process temperatures (40–90 °C in many pulp processes) influence reaction equilibria and chemical stability, requiring adjusted pH targets.
11. Water chemistry and ionic strength: Dissolved salts, process chemicals, and recycled water influence buffering capacity and chemical equilibria, affecting pH control stability.
12. Environmental discharge regulations: Wastewater treatment systems must maintain effluent pH typically within 6.0–9.0 to comply with environmental permits and protect aquatic ecosystems.

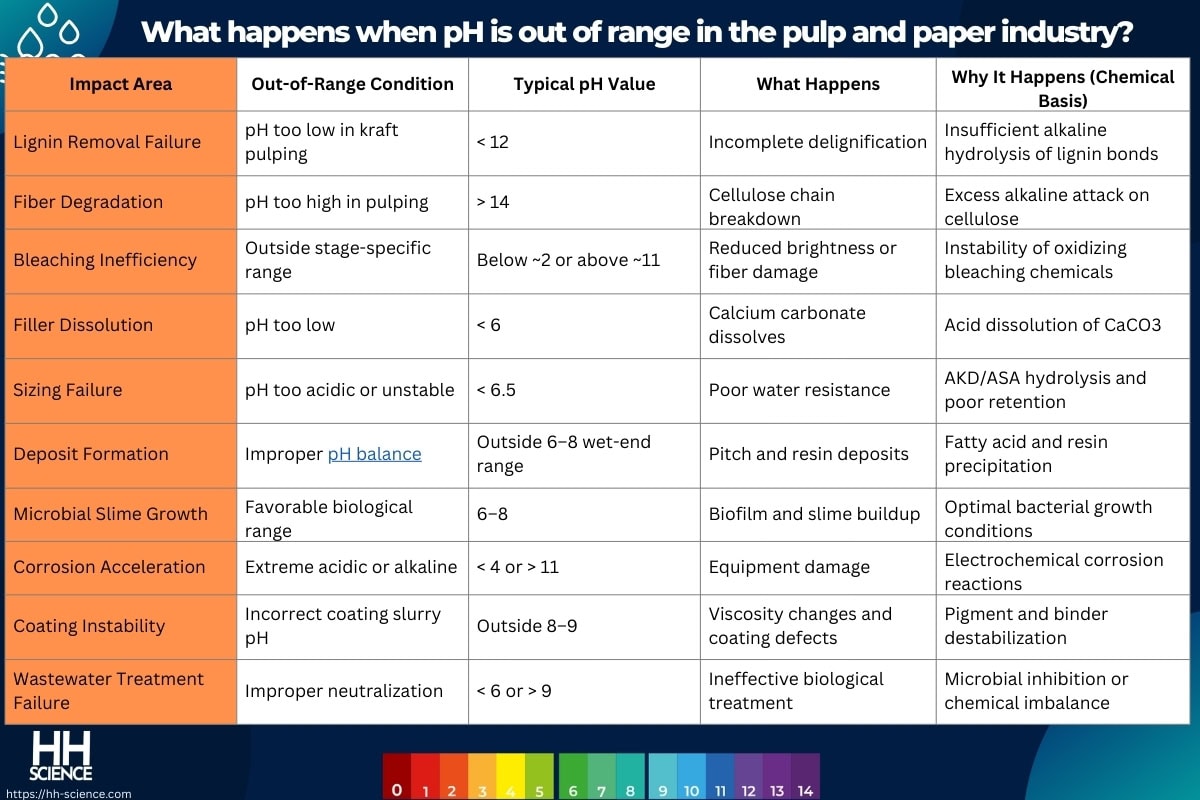

What happens when pH is out of range in the pulp and paper industry?

When pH is out of range in the pulp and paper industry, it can cause inefficient lignin removal, unstable bleaching reactions, reduced fiber strength, filler dissolution (CaCO₃ instability), sizing failure (AKD/ASA hydrolysis), deposit and pitch formation, microbial slime growth, excessive chemical consumption, accelerated corrosion, coating instability, wastewater treatment failure, and environmental discharge violations, because pH controls lignin solubility, oxidation reaction kinetics, fiber surface charge, mineral equilibrium, polymer retention chemistry, and biological activity across pulping, bleaching, papermaking, coating, and effluent treatment systems.

Effects of low pH in the pulp and paper industry

Low pH in the pulp and paper industry can cause calcium carbonate filler dissolution, reduced paper brightness and opacity, sizing failure (AKD/ASA hydrolysis), fiber weakening, corrosion of equipment, unstable bleaching reactions, increased pitch and resin deposition, microbial imbalance, and wastewater treatment inefficiency, because acidic conditions increase hydrogen ion concentration (H⁺ activity), shift mineral equilibria toward dissolution, destabilize polymer additives, alter fiber surface charge, and accelerate electrochemical reactions across pulping, papermaking, coating, and effluent treatment systems.

Effects of high pH in the pulp and paper industry

High pH in the pulp and paper industry can cause cellulose fiber degradation, reduced bleaching efficiency, excessive scaling and deposit formation, unstable coating formulations, poor filler retention, increased chemical consumption, accelerated alkaline corrosion, enzyme deactivation, and wastewater treatment imbalance, because high hydroxide ion concentration (OH⁻ activity) shifts chemical equilibria, promotes cellulose alkaline hydrolysis, reduces stability of certain bleaching chemicals and additives, alters mineral solubility behavior, and disrupts biological treatment processes across pulping, papermaking, coating preparation, and effluent treatment systems.

Operational, quality, and compliance risks

When pH is out of range in pulp and paper industry systems, operational instability, product quality degradation, and regulatory compliance risks increase because lignin solubility, bleaching reaction efficiency, fiber surface charge, filler stability (CaCO₃), sizing chemistry (AKD, ASA), microbial growth conditions, and wastewater treatment equilibria are all strongly pH-dependent and typically controlled within defined process windows (often ±0.05–0.10 pH in critical loops and 6.0–9.0 for discharge compliance).

• Operational risks: Process instability can occur when pulping chemistry shifts outside alkaline digestion conditions (typically pH 12–14), bleaching stages move outside their reaction windows (pH 2–11 depending on stage), or wet-end papermaking deviates from the neutral–alkaline range (pH 7–8.5), leading to fluctuating fiber properties, increased acid or alkali consumption, scaling or pitch deposits, microbial slime growth, machine fouling, and unplanned downtime.
• Quality risks: Paper strength, brightness, opacity, and water resistance can deteriorate when pH causes calcium carbonate filler dissolution (<6), hydrolysis of sizing agents such as AKD/ASA (<6.5), enzyme deactivation (>9), or destabilization of coating formulations (outside ~8–9), resulting in poor sheet formation, inconsistent surface quality, higher reject rates, and increased additive consumption.
• Compliance risks: Environmental and safety exposure increases when wastewater treatment systems operate outside biological treatment limits (commonly pH 6.0–9.0), chemical precipitation becomes ineffective, or acidic/alkaline effluent damages aquatic ecosystems, which can lead to permit violations, regulatory penalties, operational shutdowns, and long-term environmental liability.

pH measurement challenges in the pulp and paper industry

pH measurement in the pulp and paper industry presents specific technical challenges because sensors must operate in fiber slurries (typically 1–5% consistency), high-temperature process streams (often 40–90 °C), chemically aggressive environments ranging from strongly acidic bleaching stages (pH 2–5) to highly alkaline pulping liquors (pH 12–14), and systems with high dissolved solids, coatings, and scaling potential. These conditions affect electrode response stability, reference junction performance, membrane fouling, calibration accuracy (often requiring ±0.05–0.10 pH in controlled loops), and long-term sensor durability, making proper sensor design, installation, and maintenance strategies essential for reliable process control and environmental compliance.

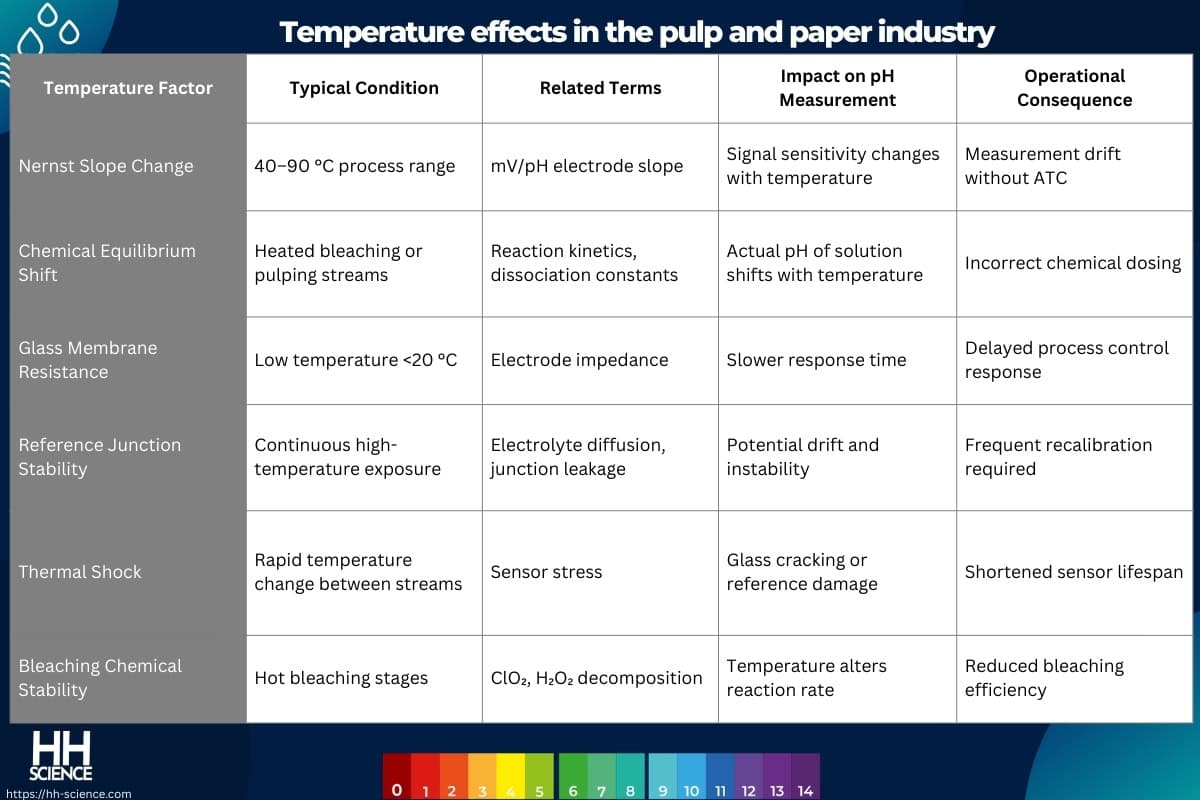

Temperature effects

Temperature effects present a significant pH measurement challenge in the pulp and paper industry because many process streams—such as kraft cooking liquor, bleaching stages, stock preparation tanks, coating kitchens, and white water circuits—operate at elevated temperatures (commonly 40–90 °C and sometimes higher), where temperature directly influences chemical equilibrium constants, reaction kinetics, electrode response slope (Nernst behavior ~59.16 mV/pH at 25 °C), and the physical properties of the glass membrane and reference electrolyte. If temperature compensation (ATC) is not properly applied or sensors are exposed to thermal shocks, the measured pH can deviate by ±0.1–0.3 pH or more, leading to incorrect chemical dosing, bleaching inefficiency, fiber damage, scaling formation, or unstable papermaking chemistry.

Fouling and contamination

Fouling and contamination are major pH measurement challenges in the pulp and paper industry because process streams contain suspended fibers (typically 1–5% consistency), fillers such as calcium carbonate (CaCO₃) and clay, organic additives (AKD, ASA, starch, latex), pitch and resin acids, and coating pigments that can accumulate on the glass membrane or clog the reference junction. These deposits form insulating layers that slow ion exchange, increase membrane impedance, destabilize the reference potential, and cause measurement drift (often ±0.1–0.3 pH), which can lead to incorrect chemical dosing, unstable wet-end chemistry, bleaching inefficiency, and higher maintenance frequency.

Pressure and flow conditions

Pressure and flow conditions create important pH measurement challenges in the pulp and paper industry because many measurement points—such as pulp slurry pipelines, stock preparation systems, bleaching reactors, white water recirculation loops, and coating preparation lines—operate under varying flow velocities, turbulent mixing, and sometimes pressurized process streams. These hydraulic conditions can mechanically stress the sensor, influence the stability of the reference junction, create measurement noise from turbulence or air entrainment, and affect response time due to stagnant zones or boundary layer formation, which may lead to inaccurate readings (often ±0.1–0.3 pH) and unstable chemical dosing control.

Chemical exposure

Chemical exposure is a significant pH measurement challenge in the pulp and paper industry because process streams often contain disinfectants, oxidizing bleaching agents, corrosion inhibitors, antiscalants, biocides, and wet-end additives that can chemically interact with the glass membrane or reference junction of pH sensors. These chemicals—such as chlorine dioxide (ClO₂), hydrogen peroxide (H₂O₂), sodium hypochlorite (NaOCl), amine-based corrosion inhibitors, phosphates, and biocides used in white water systems—can oxidize sensor surfaces, form insulating films, poison reference electrolytes, or alter electrode response slope (ideally ~59.16 mV/pH at 25 °C), leading to measurement drift (±0.1–0.3 pH), slower response time, shortened sensor lifespan, and inaccurate chemical dosing control.

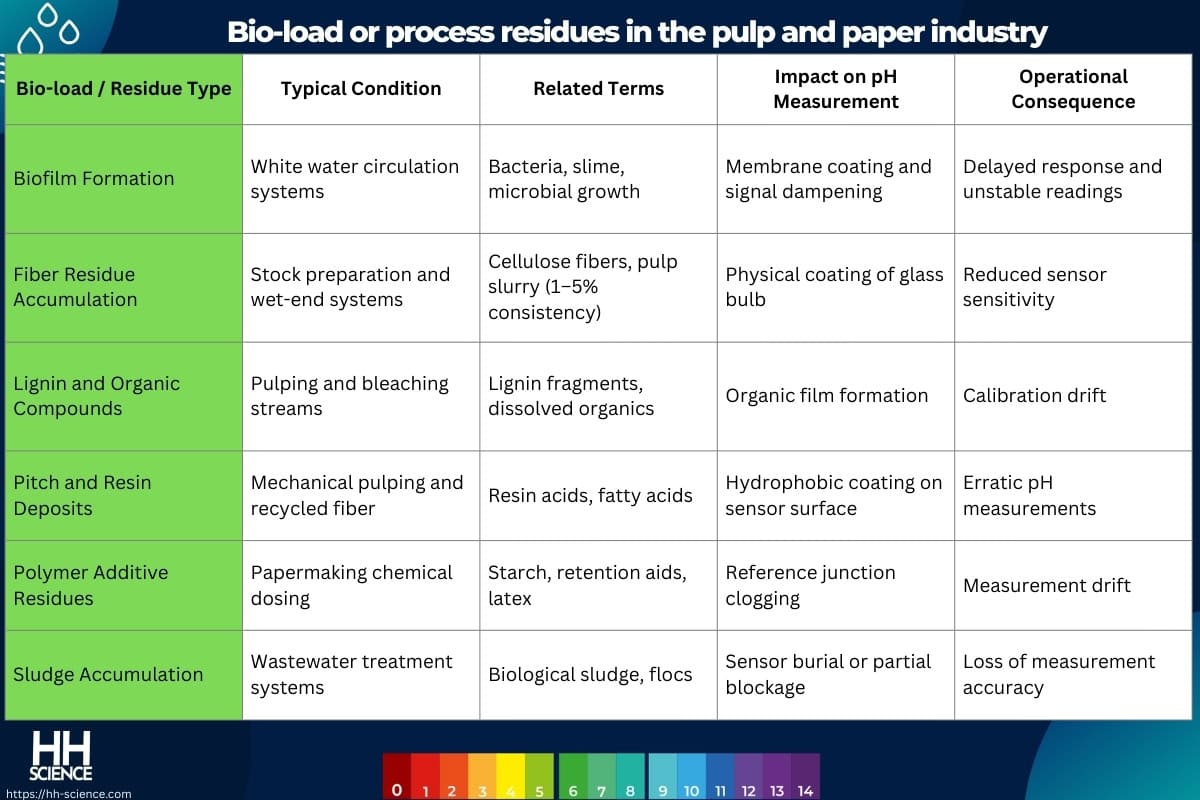

Bio-load or process residues

Bio-load and process residues create significant pH measurement challenges in the pulp and paper industry because circulating process water (white water), fiber suspensions, recycled pulp streams, and wastewater treatment systems often contain microorganisms (bacteria, fungi, algae) and accumulated organic residues such as lignin fragments, starch, sizing chemicals (AKD, ASA), latex binders, pitch, and resin acids. These biological and organic materials can form biofilms or sticky deposits on the pH electrode glass membrane and clog the reference junction, increasing membrane impedance, slowing ion exchange, and destabilizing the electrode potential, which leads to slower response times, measurement drift (often ±0.1–0.3 pH), increased calibration frequency, and unreliable control of wet-end chemistry or wastewater treatment processes.

Common pH sensor types used in the pulp and paper industry

Common pH sensor types used in the pulp and paper industry include combination glass electrodes (standard industrial probes), differential pH sensors, flat-surface or anti-fouling electrodes, high-temperature and chemical-resistant electrodes, double- or triple-junction reference sensors, digital or smart pH sensors with built-in diagnostics, solid-state ISFET sensors, and sensors installed in inline, immersion, or retractable assemblies. These sensor types are selected to withstand fiber slurry environments (typically 1–5% consistency), high temperatures (40–90 °C), chemically aggressive liquors ranging from acidic bleaching stages (pH 2–5) to alkaline pulping processes (pH 12–14), scaling from calcium carbonate fillers, organic fouling from pitch and starch additives, and the need for stable measurement accuracy (often ±0.05–0.10 pH) with integration into automated dosing and mill control systems.

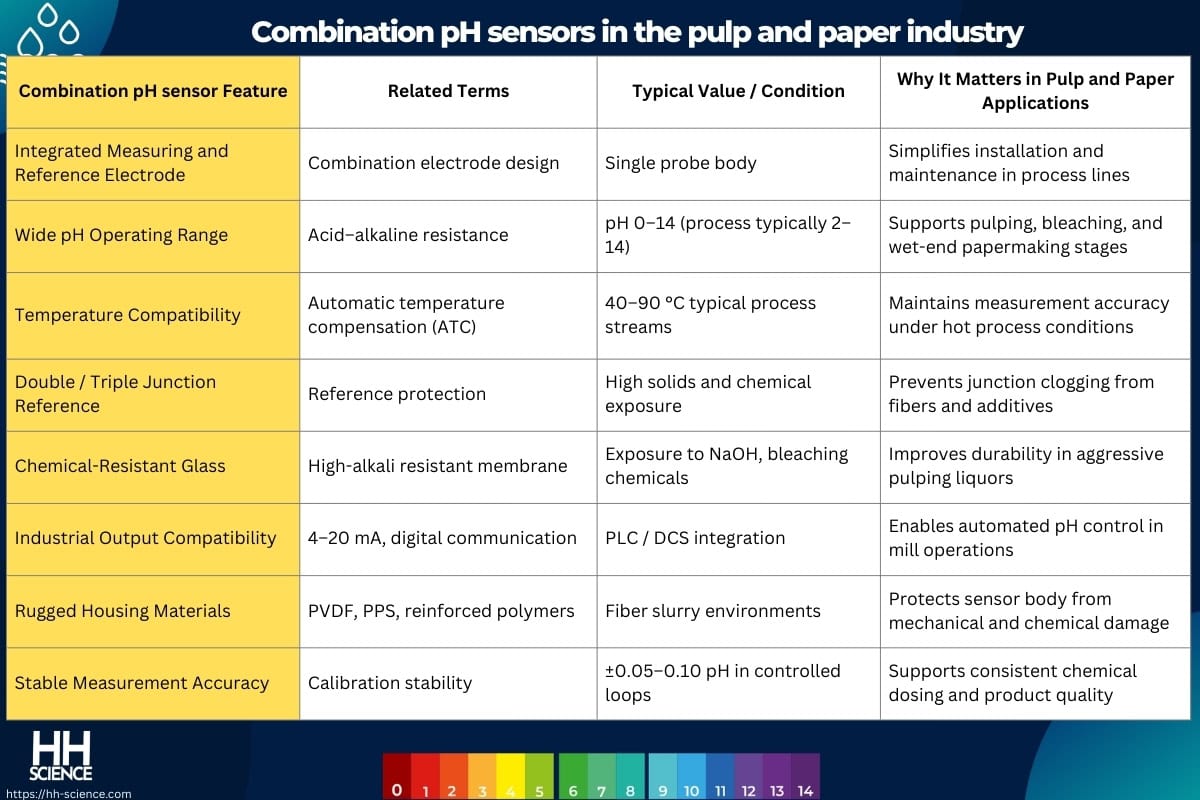

Combination pH sensors

Combination pH sensors are widely used in the pulp and paper industry because they integrate the measuring glass electrode and reference electrode into a single compact probe, simplifying installation and maintenance in process streams such as pulp slurry pipelines, bleaching stages, stock preparation tanks, and white water circuits. Their suitability for environments with fiber suspensions (typically 1–5% consistency), elevated temperatures (40–90 °C), and a wide chemical range from acidic bleaching (pH 2–5) to highly alkaline pulping liquors (pH 12–14) makes them a reliable general-purpose solution when equipped with chemical-resistant glass, double-junction reference systems, automatic temperature compensation (ATC), and industrial signal outputs to maintain stable control accuracy (often ±0.05–0.10 pH).

Differential pH sensors

Differential pH sensors are used in the pulp and paper industry because they provide more stable measurements in highly contaminated process streams where conventional reference junctions may become clogged by fibers, fillers (CaCO₃, clay), pitch deposits, starch additives, or biological residues present in white water and pulp slurry systems. By using two measurement electrodes and a buffered reference system instead of a traditional liquid junction, differential sensors reduce reference poisoning, maintain stable potential even in high-solids environments (typically 1–5% fiber consistency), and deliver reliable readings across harsh process conditions such as alkaline pulping liquors (pH 12–14), bleaching stages (pH 2–5), and papermaking wet-end chemistry (pH 6–8.5).

Digital or smart pH sensors

Digital or smart pH sensors are increasingly used in the pulp and paper industry because they provide more stable measurements, advanced diagnostics, and easier integration with mill automation systems in environments that include fiber suspensions (typically 1–5% consistency), high temperatures (40–90 °C), chemically aggressive liquors ranging from acidic bleaching stages (pH 2–5) to highly alkaline pulping processes (pH 12–14), and heavy fouling from fillers, pitch, starch, and coating additives. By converting the analog electrode signal to a digital signal directly inside the sensor head, these sensors minimize electrical noise, support automatic temperature compensation (ATC), enable predictive maintenance through diagnostics such as slope %, impedance, and sensor aging indicators, and allow seamless communication with PLC, DCS, or SCADA systems for precise chemical dosing and process control (often maintaining ±0.05–0.10 pH accuracy in controlled loops).

Inline, immersion, or portable configurations

Inline, immersion, and portable pH sensor configurations are used in the pulp and paper industry because different process stages require different measurement approaches depending on flow conditions, accessibility, maintenance strategy, and process criticality across pulping, bleaching, stock preparation, papermaking wet-end systems, coating preparation, and wastewater treatment. Inline installations enable continuous real-time monitoring in pipelines and dosing loops, immersion probes allow stable measurement in tanks or process vessels containing fiber suspensions (typically 1–5% consistency) and elevated temperatures (40–90 °C), while portable meters are used for field verification, calibration checks, and troubleshooting to ensure measurement accuracy (often ±0.05–0.10 pH) and regulatory compliance.

Installation and maintenance considerations in the pulp and paper industry

Installation and maintenance considerations in the pulp and paper industry are critical because pH sensors operate in fiber slurries (typically 1–5% consistency), high-temperature process streams (often 40–90 °C), chemically aggressive environments ranging from acidic bleaching stages (pH 2–5) to highly alkaline pulping liquors (pH 12–14), and systems with scaling minerals (CaCO₃), pitch and resin deposits, starch additives, and microbial biofilms. Proper installation location (high-flow representative sampling points), suitable mounting configurations (inline, immersion, or retractable assemblies), regular calibration using certified buffers (pH 4.01, 7.00, 10.01), routine cleaning to remove fiber and chemical deposits, and monitoring of sensor diagnostics (slope typically 95–105% of theoretical response) are essential to maintain measurement accuracy (often ±0.05–0.10 pH), ensure stable chemical dosing, protect equipment, and support consistent product quality and environmental compliance.

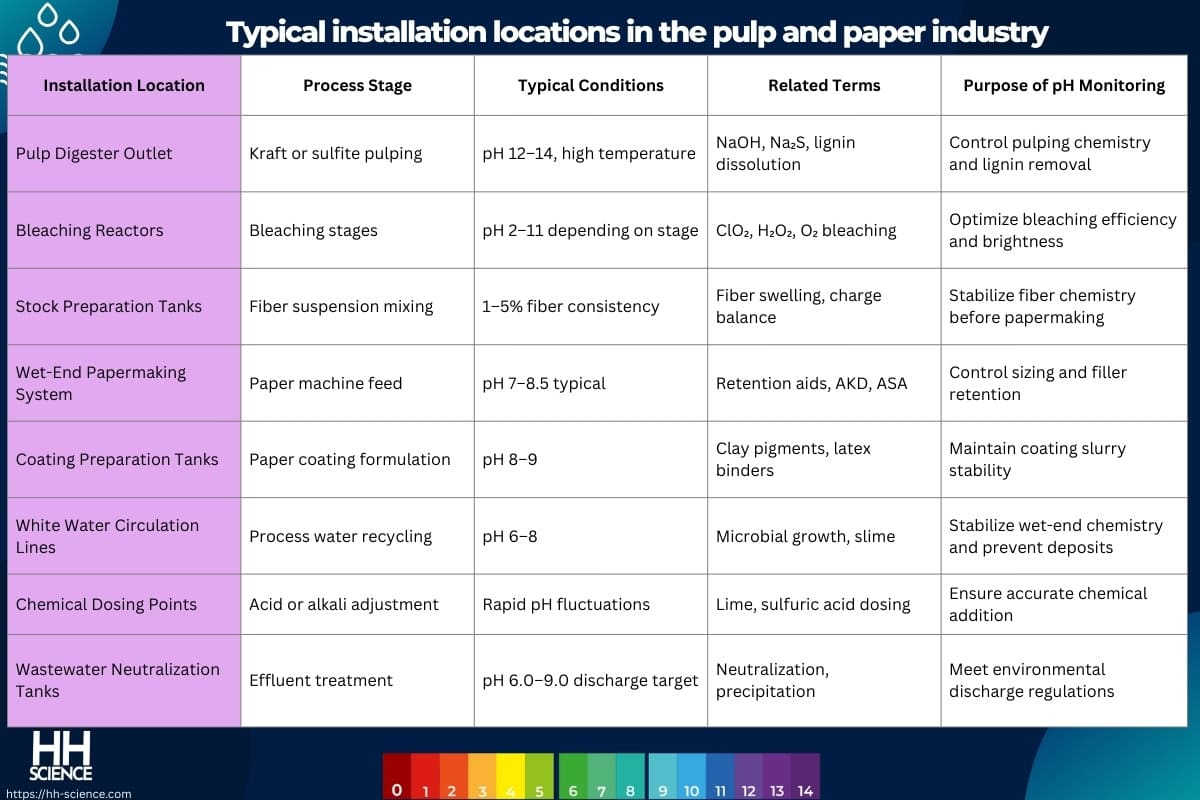

Typical installation locations

Typical pH sensor installation locations in the pulp and paper industry span across major process stages including kraft or sulfite pulping digesters, bleaching reactors, stock preparation tanks, wet-end papermaking systems, coating preparation units, white water recirculation loops, chemical dosing lines, and wastewater treatment basins, because each stage requires real-time pH monitoring to control lignin dissolution, bleaching reactions (ClO₂, H₂O₂, O₂), filler stability (CaCO₃), sizing chemistry (AKD, ASA), microbial growth, and discharge compliance (typically pH 6.0–9.0). Sensors are typically installed in high-flow representative points such as pipelines, mixing tanks, reactors, or basins where fiber slurry (1–5% consistency), elevated temperatures (40–90 °C), and chemical dosing events occur, ensuring accurate measurement and stable automated process control.

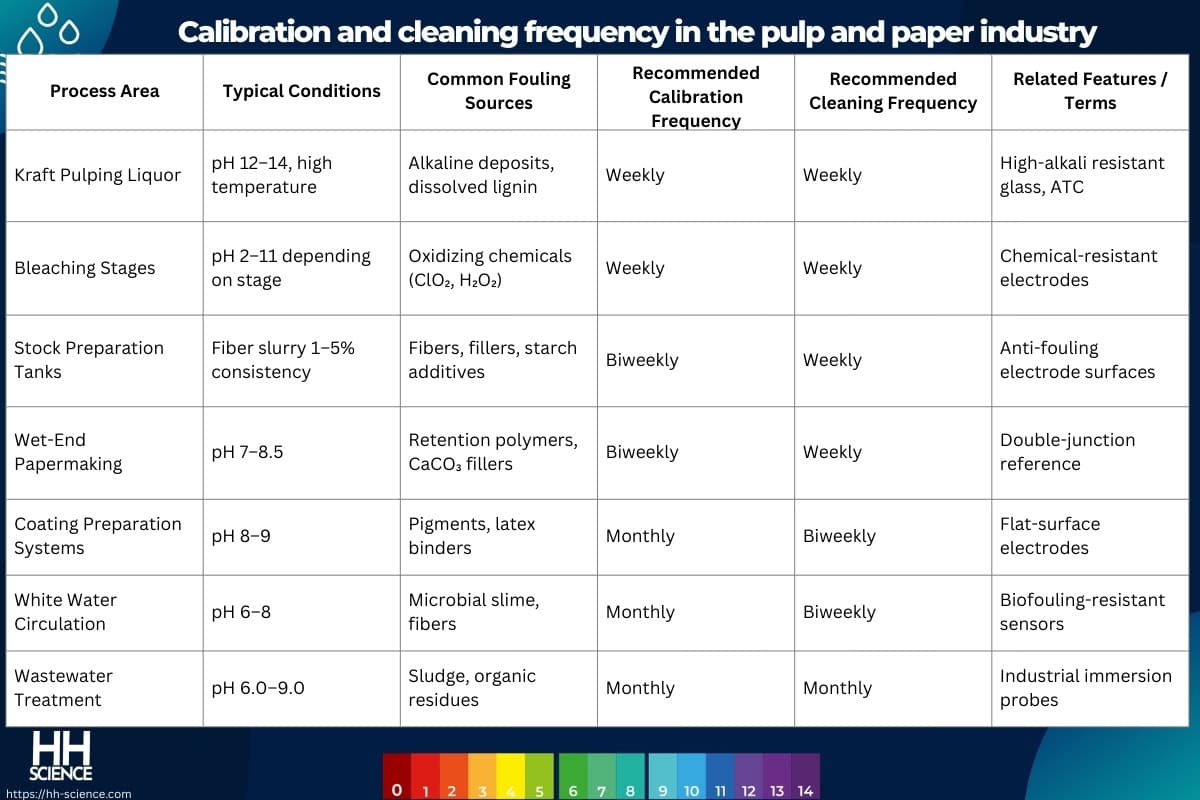

Calibration and cleaning frequency

Calibration and cleaning frequency in the pulp and paper industry depends on fiber slurry content (typically 1–5% consistency), chemical exposure from pulping liquors (pH 12–14) and bleaching stages (pH 2–5), temperature conditions (40–90 °C), fouling from fillers such as calcium carbonate (CaCO₃), pitch and resin deposits, starch and polymer additives, and microbial slime in white water systems. Because these conditions can cause sensor drift (often ±0.1–0.3 pH), membrane coating, and reference junction clogging, routine calibration using certified buffer standards (pH 4.01, 7.00, 10.01) and scheduled cleaning procedures are required to maintain stable measurement accuracy (typically ±0.05–0.10 pH) and reliable chemical dosing control.

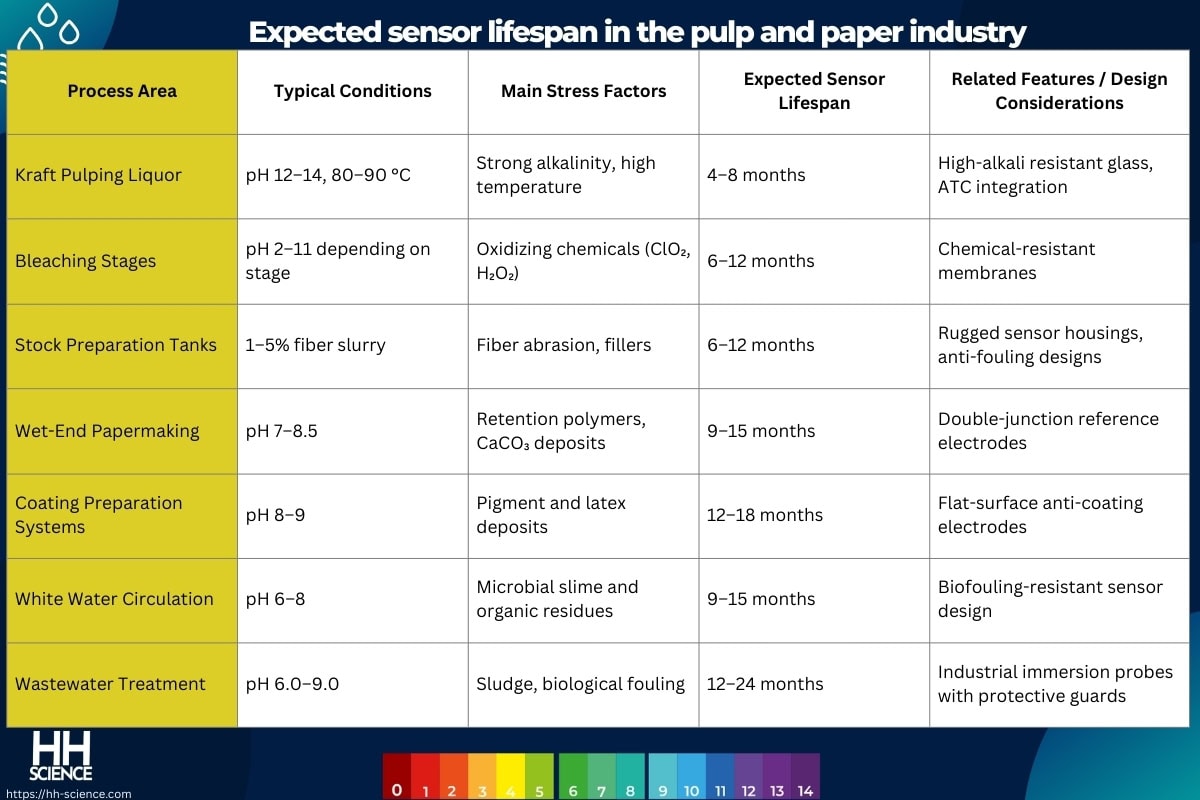

Expected sensor lifespan

Expected pH sensor lifespan in the pulp and paper industry depends on chemical exposure from alkaline pulping liquors (pH 12–14), acidic bleaching stages (pH 2–5), fiber slurry abrasion (typically 1–5% consistency), temperature stress (40–90 °C), scaling from calcium carbonate fillers (CaCO₃), pitch and resin deposits, and biofouling in white water systems. These factors gradually affect the glass membrane, reference junction stability, and electrode slope (ideally ~95–105% of the theoretical 59.16 mV/pH at 25 °C), meaning industrial sensors typically operate for several months to over a year depending on process severity, maintenance practices, and sensor design features such as chemical-resistant glass, double-junction references, and protective housings.

Trade-offs between accuracy, maintenance, and durability

In the pulp and paper industry, trade-offs between measurement accuracy, maintenance requirements, and sensor durability arise because pH sensors must operate in fiber slurry environments (typically 1–5% consistency), high-temperature process streams (40–90 °C), chemically aggressive conditions ranging from acidic bleaching stages (pH 2–5) to highly alkaline pulping liquors (pH 12–14), and systems prone to scaling from calcium carbonate (CaCO₃), pitch deposition, starch additives, and microbial biofilms.

• Accuracy: High-precision pH control (often ±0.05–0.10 pH in bleaching and wet-end chemistry) requires sensitive glass membranes and stable reference systems, but these components are more susceptible to fouling and chemical attack, increasing the need for frequent calibration and cleaning.
• Maintenance: Sensors designed to minimize fouling—such as flat-surface electrodes, double-junction references, or differential designs—can extend maintenance intervals but may slightly reduce response speed or measurement sensitivity in rapidly changing process conditions.
• Durability: Rugged industrial sensors with reinforced housings (PVDF, PPS), chemical-resistant glass, and protective guards improve lifespan in abrasive pulp streams and aggressive chemicals, but these designs may trade off some measurement responsiveness or require larger installation assemblies to maintain stable readings.

Regulatory or quality considerations in the pulp and paper industry

Regulatory and quality considerations in the pulp and paper industry are closely tied to pH because it governs critical process reactions such as lignin dissolution during pulping (typically pH 12–14 in kraft processes), bleaching chemistry efficiency (stage-dependent pH 2–11 for ClO₂, H₂O₂, or oxygen bleaching), wet-end papermaking stability (often pH 7–8.5 for filler retention and sizing agents such as AKD or ASA), coating formulation stability (pH 8–9), and wastewater treatment compliance (commonly pH 6.0–9.0 discharge limits). Maintaining calibrated, traceable pH measurements (often within ±0.05–0.10 pH in controlled loops) and documented monitoring practices ensures consistent paper quality, efficient chemical usage, protection of equipment from corrosion or scaling, and adherence to environmental permits and international industry standards governing mill operations and effluent discharge.

Industry standards in the pulp and paper industry

Industry standards in the pulp and paper industry define how process water quality, chemical control, measurement accuracy, and environmental discharge must be monitored and documented, because parameters such as pH influence pulping reactions (pH 12–14 in kraft cooking), bleaching chemistry stability (pH 2–11 depending on stage), wet-end papermaking chemistry (typically pH 7–8.5 for filler retention and sizing), and effluent compliance (commonly pH 6.0–9.0). These standards establish consistent laboratory testing methods, calibration traceability, environmental reporting requirements, and quality management procedures to ensure product quality, operational stability, worker safety, and regulatory compliance across pulp mills and paper manufacturing plants.

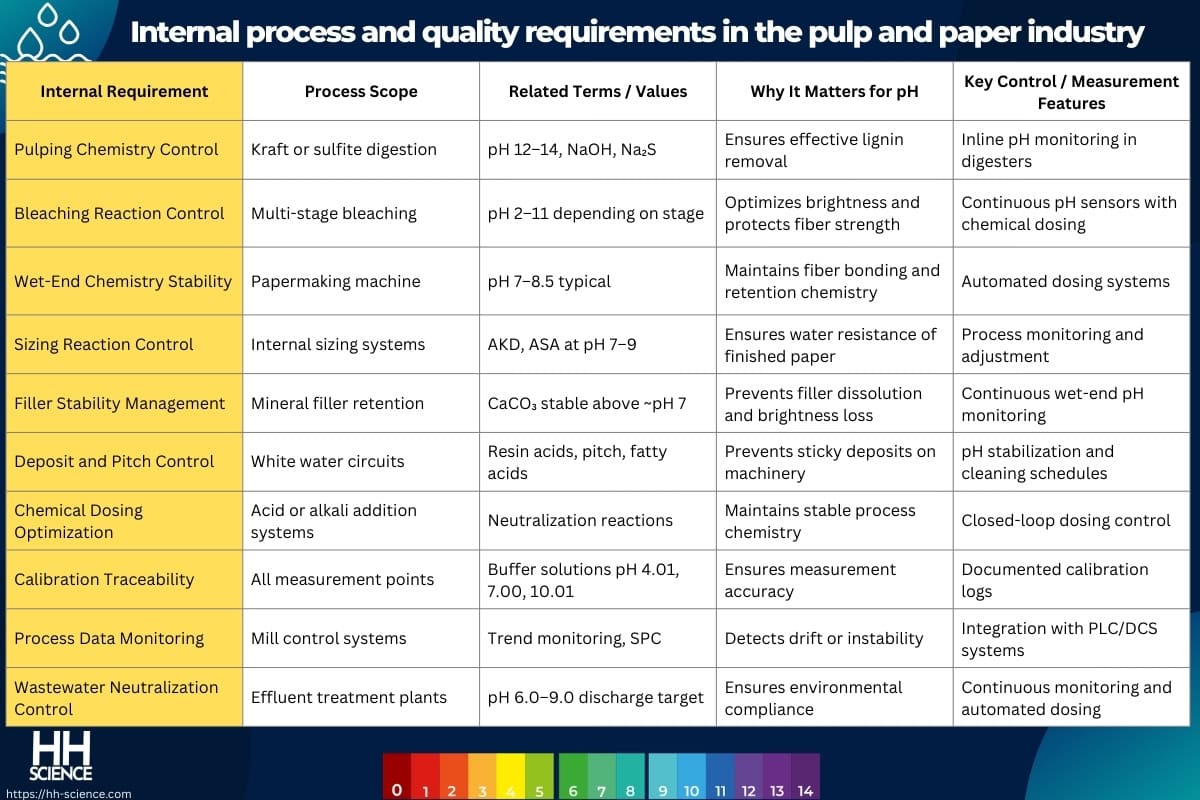

Internal process and quality requirements in the pulp and paper industry

Internal process and quality requirements in the pulp and paper industry define how pH must be monitored, controlled, documented, and verified across pulping, bleaching, stock preparation, papermaking wet-end chemistry, coating formulation, chemical recovery, and wastewater treatment, because pH directly affects lignin dissolution (typically pH 12–14 in kraft pulping), bleaching reaction efficiency (stage-specific pH 2–11), filler stability (CaCO₃ above ~pH 7), sizing performance (AKD/ASA near pH 7–9), enzyme activity, corrosion control, and effluent neutrality (commonly pH 6.0–9.0). These internal requirements establish control limits (often ±0.05–0.10 pH in critical loops), calibration traceability using certified buffers (pH 4.01, 7.00, 10.01), statistical process monitoring, chemical dosing optimization, and maintenance schedules to ensure consistent paper quality, stable machine operation, efficient chemical usage, and environmental compliance readiness.

Compliance-driven monitoring needs in the pulp and paper industry

Compliance-driven monitoring needs in the pulp and paper industry focus on maintaining controlled pH levels across pulping, bleaching, papermaking, coating preparation, chemical recovery, and wastewater treatment systems to meet environmental regulations, product quality requirements, and occupational safety standards. Because pH influences lignin dissolution (typically pH 12–14 in kraft pulping), bleaching chemistry stability (stage-specific pH 2–11), filler stability (CaCO₃ above ~pH 7), sizing performance (AKD/ASA at pH 7–9), microbial control in white water circuits (pH ~6–8), corrosion risk, and effluent discharge limits (commonly pH 6.0–9.0), mills must implement continuous monitoring, documented calibration, and traceable data logging to ensure regulatory compliance, stable production, and environmental protection.

Selecting the right pH measurement approach in the pulp and paper industry

Selecting the right pH measurement approach in the pulp and paper industry is essential because process stages such as kraft pulping (pH 12–14), bleaching reactions (pH 2–11 depending on stage), wet-end papermaking chemistry (typically pH 7–8.5 for filler retention and sizing with AKD/ASA), coating preparation (pH 8–9), and wastewater neutralization (pH 6.0–9.0) operate under challenging conditions including fiber slurry (1–5% consistency), elevated temperatures (40–90 °C), chemical exposure (NaOH, ClO₂, H₂O₂), scaling from calcium carbonate fillers, pitch and resin deposits, and microbial biofilms. Choosing appropriate sensor types (combination, differential, or digital), installation methods (inline, immersion, or retractable), reference designs (double or triple junction), and supporting features such as automatic temperature compensation (ATC), fouling-resistant surfaces, and integration with PLC/DCS control systems ensures stable measurement accuracy (often ±0.05–0.10 pH), reliable chemical dosing, consistent paper quality, and regulatory compliance.

Decision support for the pulp and paper industry

Decision support in the pulp and paper industry evaluates process stage requirements (kraft pulping pH 12–14, bleaching stages pH 2–11, wet-end papermaking pH 7–8.5, coating preparation pH 8–9, wastewater discharge pH 6.0–9.0), fiber slurry conditions (1–5% consistency), temperature ranges (40–90 °C), chemical exposure (NaOH, ClO₂, H₂O₂), and fouling risks from fillers (CaCO₃), pitch, starch, and microbial slime. By combining these parameters with required measurement accuracy (typically ±0.05–0.10 pH in controlled loops) and maintenance constraints, decision support frameworks help engineers select appropriate sensor technologies, installation points, and calibration strategies that maintain process stability and regulatory compliance.

Application-driven measurement strategies

Application-driven measurement strategies align pH monitoring design with specific pulp and paper processes such as lignin dissolution during pulping, oxidation reactions in bleaching, fiber chemistry control in stock preparation, filler retention and sizing performance in the wet end, coating formulation stability, and neutralization in wastewater treatment. These strategies define measurement tolerance ranges, response time requirements, fouling resistance needs, and temperature compensation features to ensure reliable chemical dosing and stable papermaking chemistry under varying process conditions.

Linking pulp and paper industry to sensor selection and oem solutions

Linking pulp and paper process requirements to sensor selection and OEM solutions ensures that instrumentation design matches real operating environments, including abrasive pulp slurry, high temperatures (40–90 °C), aggressive chemicals, and heavy fouling conditions. By integrating suitable sensor types (combination, differential, or digital), protective housings (PVDF, PPS), reference junction designs, automatic temperature compensation, and communication interfaces (4–20 mA, Modbus, or Ethernet) with mill automation systems such as PLC or DCS, OEM solutions enable durable, low-maintenance pH monitoring systems that support consistent product quality, efficient chemical usage, and long-term operational reliability.
