pH in Pharmaceutical Production: how pH is used, controlled and measured

Why pH matters in pharmaceutical production?

pH matters in pharmaceutical production because it directly controls API stability, solubility and bioavailability, reaction kinetics, crystallization behavior, microbial control, formulation compatibility, and regulatory compliance, with many processes operating within tightly validated limits of ±0.02–0.05 pH.

• API stability: Many drug substances degrade via hydrolysis, oxidation, or isomerization outside defined pH ranges, reducing potency and shelf life.
• Solubility and bioavailability: pH determines ionization state (pKa relationship), directly affecting dissolution rate and absorption performance.
• Reaction kinetics: Synthetic and biocatalytic reactions are pH-dependent, influencing conversion rate, impurity formation, and yield.
• Crystallization control: pH affects supersaturation and polymorph formation, impacting purity and downstream processing.
• Microbial control: Defined pH conditions help limit contamination risk during aqueous processing and biomanufacturing.
• Formulation compatibility: Excipients, buffers, and stabilizers function within narrow pH windows to maintain drug integrity.
• Process reproducibility: Tight pH control (often ±0.02–0.05) ensures consistent batch-to-batch performance under validated CPP frameworks.
• Regulatory compliance: pH is a documented critical process parameter under GMP, requiring traceable measurement, calibration, and deviation management.

How does pH influence pharmaceutical production quality and safety?

In pharmaceutical production, pH directly influences chemical stability, impurity formation, solubility, crystallization behavior, microbial control, formulation compatibility, and regulatory validation, because many drug substances and intermediates are highly sensitive to small pH variations (often ±0.02–0.05 pH). Deviations can reduce potency, alter bioavailability, increase degradation products, or invalidate critical process parameters (CPPs), making precise and traceable pH control essential for GMP-compliant manufacturing.

Why are pharmaceutical production systems sensitive to pH deviations?

Pharmaceutical production systems are highly sensitive to pH deviations because API chemistry, reaction kinetics, impurity formation, solubility equilibria, protein structure (for biologics), and validated critical process parameters (CPPs) are all tightly pH-dependent, often within narrow limits of ±0.02–0.05 pH. Even small excursions can shift chemical equilibria, accelerate degradation pathways, or compromise batch validation, leading to quality failure and regulatory risk.

• Chemical degradation acceleration: APIs may undergo hydrolysis, oxidation, or isomerization outside their validated pH stability window, increasing impurity levels beyond ICH limits.
• Impurity profile changes: Slight pH shifts (≈±0.05–0.1) can alter side-reaction rates, leading to out-of-specification (OOS) impurity formation.
• Solubility and precipitation issues: Deviations from the optimal pH relative to pKa can reduce solubility, causing crystallization or precipitation in solution processes.
• Protein instability (biologics): Monoclonal antibodies and enzymes can denature, aggregate, or lose activity outside narrow pH ranges, affecting efficacy and safety.
• Reaction yield loss: Synthetic reaction rates and selectivity depend on pH-controlled kinetics, so drift reduces conversion efficiency and increases waste.
• Formulation incompatibility: Excipients and buffers operate within defined pH windows; deviations can alter viscosity, color, or stability.
• Microbial risk in aqueous systems: pH outside validated ranges may weaken microbial control during bulk solution handling.
• Regulatory non-compliance: Operating outside validated pH setpoints violates GMP-controlled CPP frameworks, potentially leading to batch rejection or audit findings.

Typical pH ranges and control targets in Pharmaceutical Production

Typical pH ranges and control targets in pharmaceutical production are defined according to API chemistry, dosage form, process stage, and validated critical process parameters (CPPs), with many operations requiring narrow control tolerances of ±0.02–0.05 pH. These targets are established through stability studies, solubility profiling, reaction optimization, and regulatory validation, ensuring consistent product quality, impurity control, and GMP-compliant manufacturing performance.

Common pH ranges in pharmaceutical production

pH ranges in pharmaceutical production vary because API chemistry, solubility behavior (pKa-dependent), protein stability, reaction kinetics, impurity control, and dosage form requirements differ across small-molecule, biologics, and formulation processes. Each range is defined through stability studies, reaction optimization, and GMP validation to balance chemical integrity, microbial control, and process reproducibility.

Factors that define pH control targets

pH control targets in pharmaceutical production are defined by API chemical stability, solubility and pKa characteristics, reaction kinetics, impurity profile limits, dosage form requirements, protein structural stability (for biologics), microbial control needs, buffer capacity, scale-up behavior, and regulatory validation frameworks, because each factor directly influences product quality, safety, and compliance.

• API chemical stability: Stability studies determine the pH window that minimizes hydrolysis, oxidation, or degradation and maintains potency within specification.
• Solubility and pKa characteristics: The relationship between pH and ionization state defines dissolution behavior and precipitation risk.
• Reaction kinetics: Synthetic and bioprocess reaction rates are pH-dependent, affecting conversion efficiency and impurity formation.
• Impurity profile limits: ICH impurity thresholds require pH control to prevent formation of degradation products beyond validated limits.
• Dosage form requirements: Injectable, oral, ophthalmic, and topical products require pH compatibility for efficacy and patient safety.
• Protein structural stability (biologics): Monoclonal antibodies and enzymes have narrow pH stability ranges to prevent aggregation or denaturation.
• Microbial control needs: Aqueous systems may rely on defined pH windows to support preservative effectiveness or limit contamination.
• Buffer capacity and formulation design: Buffer systems must maintain stable pH during storage and handling.
• Scale-up behavior: pH control must remain stable during process transfer from lab to commercial scale.
• Regulatory validation frameworks: GMP and CPP documentation require defined pH setpoints and tight tolerances (often ±0.02–0.05 pH) for compliant operation.

What happens when pH is out of range in Pharmaceutical Production?

When pH moves outside validated limits in pharmaceutical production, it can cause accelerated API degradation, impurity formation, solubility loss or precipitation, reduced bioavailability, protein denaturation (biologics), reaction yield reduction, microbial risk in aqueous systems, batch failure, and regulatory non-compliance, because chemical equilibria, reaction kinetics, and molecular stability are highly pH-dependent within narrow control bands (often ±0.02–0.05 pH).

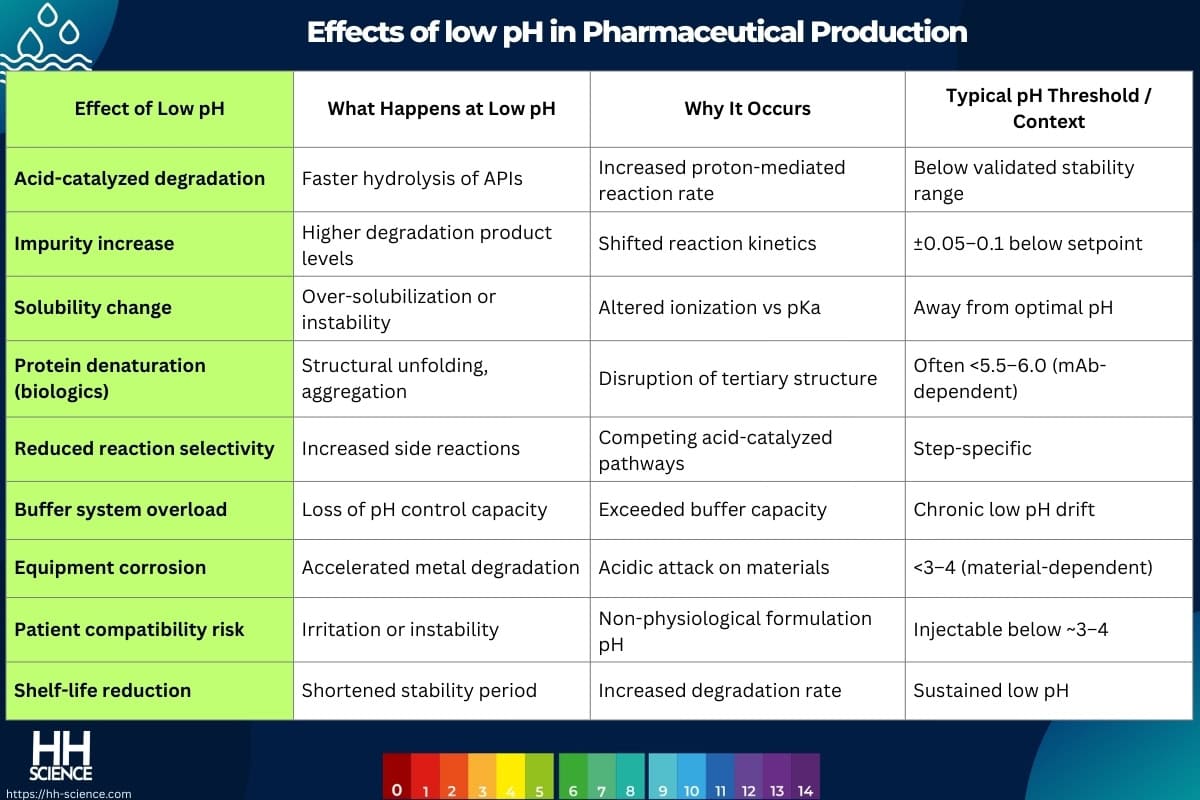

Effects of low pH in Pharmaceutical Production

Low pH in pharmaceutical production can cause accelerated acid-catalyzed degradation, increased impurity formation, solubility shifts, protein denaturation or aggregation (biologics), reduced reaction selectivity, equipment corrosion, and potential patient compatibility issues, because excess hydrogen ion concentration drives chemical reactions and destabilizes molecular structures outside validated stability windows.

Effects of high pH in Pharmaceutical Production

High pH in pharmaceutical production can cause base-catalyzed degradation, impurity formation, precipitation due to solubility shifts, protein instability (for biologics), reduced reaction selectivity, excipient incompatibility, equipment corrosion, and potential patient safety concerns, because alkaline conditions accelerate certain chemical reactions and alter molecular charge states beyond validated stability limits.

Operational, quality, and compliance risks

When pH deviates from validated setpoints in pharmaceutical production—often controlled within ±0.02–0.05 pH as a Critical Process Parameter (CPP)—it creates significant operational disruption, quality failure, and regulatory exposure because pH directly affects chemical stability, impurity formation, and GMP compliance.

• Operational risk: Process instability – pH excursions alter reaction kinetics, crystallization behavior, and purification performance, leading to yield loss, reprocessing, or batch delays.
• Operational risk: Increased cost and downtime – Off-target pH increases acid/base consumption, waste generation, and corrective interventions, reducing manufacturing efficiency.
• Quality risk: Out-of-specification (OOS) results – Small deviations (≈±0.05–0.1 pH) can push impurity levels beyond ICH acceptance limits, resulting in failed release testing.
• Quality risk: Reduced potency or purity – Degradation or aggregation reduces API strength, impacting stability and shelf-life claims.
• Compliance risk: CPP deviation under GMP – Operating outside validated pH ranges violates GMP process validation and control strategy requirements, triggering deviation reports and potential batch rejection.
• Compliance risk: Audit and inspection findings – Inadequate pH monitoring, documentation gaps, or uncontrolled drift can result in regulatory observations from authorities such as FDA or EMA.
• Compliance risk: Product recall exposure – If instability or impurity issues reach the market, pH-related failures can lead to recalls and reputational damage.

pH measurement challenges in the pharmaceutical production

pH measurement in pharmaceutical production presents unique challenges because sensors must operate under GMP-controlled conditions, tight tolerances (often ±0.02–0.05 pH), chemically aggressive media, high purity requirements, and strict data integrity standards. Factors such as clean-in-place/sterilize-in-place (CIP/SIP) exposure, low-conductivity solutions, high-purity water systems, temperature variation, and traceable calibration requirements directly impact measurement accuracy, stability, and validation readiness.

Temperature effects

Temperature is a critical challenge in pharmaceutical pH measurement because it affects both the electrode response (Nernst slope), true chemical equilibrium (pKa shifts), reaction kinetics, and solubility behavior, while pharmaceutical processes often involve temperature-controlled synthesis, crystallization, sterile filtration, and CIP/SIP cycles (≈5–130 °C). If temperature effects are not accurately compensated, even small variations can create systematic pH error (>±0.02–0.05 pH), false CPP deviations, impurity formation risk, and failed validation, particularly in tightly regulated GMP environments.

Fouling and contamination

Fouling and contamination are critical challenges in pharmaceutical pH measurement because processes often involve high-purity APIs, proteins (biologics), buffers, solvents, and cleaning residues, where even minimal surface buildup or carryover can compromise measurement accuracy, sterility, and GMP validation. Deposits on the glass membrane or reference junction can cause signal drift, slow response, offset error (>±0.02–0.05 pH), and false CPP deviations, directly affecting batch release decisions and regulatory compliance.

Pressure and flow conditions

Pressure and flow conditions are critical challenges in pharmaceutical pH measurement because processes often involve pressurized reactors, high-purity transfer lines, filtration systems, and chromatographic purification steps, where stable and representative measurement is required within tight CPP tolerances (±0.02–0.05 pH). Variations in flow velocity, pressure gradients, turbulence, and pulsation can affect reference stability, junction potential, signal noise, and response time, potentially leading to inaccurate readings and validation risk.

Chemical exposure

Chemical exposure is a major challenge in pharmaceutical pH measurement because sensors are routinely subjected to aggressive CIP/SIP agents, oxidizing disinfectants, strong acids/alkalis, and corrosion inhibitors used to maintain sterility and equipment integrity under GMP. These chemicals can etch the glass membrane, dehydrate or poison the reference system, alter junction permeability, degrade seals, and accelerate slope loss (>±0.02–0.05 pH drift), compromising CPP control and validation if materials and exposure limits are not properly managed.

Bio-load or process residues

Bio-load and process residues present a significant challenge in pharmaceutical pH measurement because manufacturing environments—especially in biologics, sterile solutions, and multi-product facilities—contain proteins, cell debris, buffers, solvents, API particles, and microbial contaminants that can deposit on the sensor surface. These residues can cause membrane coating, reference junction blockage, signal drift (>±0.02–0.05 pH), slow response time, and false CPP deviations, directly impacting batch validation, sterility assurance, and GMP compliance.

Common pH sensor types used in Pharmaceutical Production

Common pH sensor types used in pharmaceutical production include hygienic glass electrode sensors, combination pH sensors, differential (junction-free) pH sensors, ISFET pH sensors, low-conductivity pH sensors (for WFI and purified water), and digital or smart pH sensors, each selected based on GMP requirements, CPP criticality, media composition, and cleaning intensity. Glass and combination sensors provide high analytical accuracy (±0.01–0.05 pH) for validated synthesis and formulation steps, differential and ISFET designs improve reliability in high-fouling or frequent CIP/SIP environments, low-conductivity sensors ensure stable measurement in WFI systems (<10 µS/cm), and digital sensors support traceability, diagnostics, and 21 CFR Part 11–ready data integrity in regulated pharmaceutical manufacturing.

Combination pH sensors

Combination pH sensors are widely used in pharmaceutical production because they integrate the measuring electrode and reference electrode into a single hygienic probe, simplifying validation, installation, and maintenance in GMP-controlled environments. Their design supports high analytical accuracy (typically ±0.01–0.05 pH), stable performance in synthesis, formulation, and purification steps, and compatibility with CIP/SIP sterilization and traceable calibration protocols required for validated Critical Process Parameters (CPPs).

Differential pH sensors

Differential pH sensors are particularly suited for pharmaceutical production because they eliminate the traditional liquid reference junction—the most failure-prone component in low-conductivity media, high-purity water systems (WFI), solvent-containing processes, and frequent CIP/SIP environments. By using two matched measuring electrodes instead of a conventional reference system, they provide stable, low-drift performance (±0.02–0.1 pH) under GMP conditions where measurement integrity, validation stability, and minimal maintenance are critical.

Digital or smart pH sensors

Digital (smart) pH sensors are increasingly used in pharmaceutical production because they convert the high-impedance electrode signal into a digital output at the sensor head, improving measurement stability in electrically noisy, automated, GMP-controlled environments. They are particularly valuable where tight CPP tolerances (±0.02–0.05 pH), data integrity, audit traceability, and 21 CFR Part 11–compliant documentation are required for validated manufacturing processes.

Inline, immersion, or portable configurations

Different pH sensor configurations are required in pharmaceutical production because pH must be controlled across pressurized reactors, sterile bioreactors, purification skids, high-purity water loops, and QA/QC laboratories, each with distinct requirements for GMP compliance, sterility, response time, and validation traceability. Selecting the appropriate configuration ensures representative measurement, minimal contamination risk, and reliable CPP monitoring without compromising batch integrity.

Installation and maintenance considerations in Pharmaceutical Production

In pharmaceutical production, proper installation and maintenance of pH sensors are critical because pH often functions as a validated Critical Process Parameter (CPP) controlled within ±0.02–0.05 pH, under GMP-regulated, sterile, and high-purity conditions that include CIP/SIP exposure (pH 1–13, 121–130 °C) and low-conductivity media (e.g., WFI <10 µS/cm). Correct practices—such as hygienic or aseptic mounting at representative process points, stable flow conditions, traceable calibration with certified buffers, temperature compensation, routine inspection for drift or fouling, documented maintenance logs, and proactive replacement when slope drops below ~85–90%—ensure measurement integrity, validated batch performance, and full audit readiness.

Typical installation locations

In pharmaceutical production, pH sensors are installed at locations where pH functions as a Critical Process Parameter (CPP), influencing reaction control, purification performance, formulation stability, and regulatory compliance. Placement is determined by GMP requirements, sterility constraints, pressure rating, flow characteristics, and validation accessibility, ensuring representative and traceable measurement throughout the manufacturing lifecycle.

Calibration and cleaning frequency

In pharmaceutical production, calibration and cleaning frequency are critical because pH is often a validated Critical Process Parameter (CPP) controlled within ±0.02–0.05 pH, and any drift can lead to OOS results, batch rejection, or GMP deviation reports. Maintenance schedules are driven by process criticality, CIP/SIP frequency (pH 1–13, 121–130 °C), media composition, conductivity level (e.g., WFI <10 µS/cm), and regulatory documentation requirements, ensuring traceable and audit-ready measurement performance.

Expected sensor lifespan

In pharmaceutical production, pH sensor lifespan is influenced by GMP-level control requirements (±0.02–0.05 pH), repeated CIP/SIP exposure (pH 1–13, 121–130 °C), solvent contact, low-conductivity media (WFI <10 µS/cm), and strict validation standards, all of which accelerate glass aging, reference degradation, and seal fatigue. Actual service life depends on sensor design, media chemistry, cleaning frequency, and documentation burden, with proactive replacement often scheduled to protect validated CPP performance rather than waiting for total failure.

Trade-offs between accuracy, maintenance, and durability

In industrial water applications, the trade-off between accuracy, maintenance, and durability arises because high-accuracy pH sensors (typically ±0.01–0.05 pH) use thin glass membranes and sensitive reference junctions that deliver precise control in neutral, stable media but are more vulnerable to abrasion, scaling, high TDS, temperature swings (0–80 °C), and pressure variation (1–10 bar). More durable sensors—featuring thicker or ruggedized glass, protected or junction-free references, pressurized electrolytes, and chemically resistant housings—reduce cleaning frequency and extend service life in harsh wastewater, cooling tower, or boiler systems, but generally operate at practical control accuracy levels of ±0.05–0.1 pH, which are sufficient for regulatory discharge compliance but not laboratory-grade analysis.

Regulatory or quality considerations in Pharmaceutical Production

In pharmaceutical production, regulatory and quality considerations are critical because pH is frequently designated as a Critical Process Parameter (CPP) that directly impacts API stability, impurity profile, solubility, protein structure (biologics), and final product specifications, often controlled within ±0.02–0.05 pH under validated conditions. Compliance with GMP requirements, process validation protocols, ICH impurity limits, documented calibration traceability, data integrity standards (e.g., 21 CFR Part 11), and deviation management procedures ensures batch release approval, audit readiness, and consistent, reproducible pharmaceutical manufacturing performance.

Industry Quality Standards in Pharmaceutical Production

Industry quality standards in pharmaceutical production exist to ensure patient safety, product efficacy, process reproducibility, and global regulatory harmonization, with pH frequently designated as a Critical Process Parameter (CPP) controlled within narrow validated tolerances (often ±0.02–0.05 pH). These standards define expectations for process validation, impurity control, calibration traceability, data integrity, documentation, and audit readiness, making robust, traceable, and stable pH measurement systems essential across API synthesis, biologics production, purification, and formulation.

Internal process and quality requirements in Pharmaceutical Production

In pharmaceutical production, internal process and quality requirements translate regulatory expectations into site-specific control limits, SOPs, validation rules, monitoring intensity, maintenance discipline, and lifecycle management, because pH directly impacts API stability, impurity profile, protein integrity, solubility, and final release specifications. These internal requirements ensure that pH remains within validated CPP limits (often ±0.02–0.05 pH) throughout synthesis, purification, formulation, and filling, protecting batch reproducibility and audit readiness.

Compliance-driven monitoring needs in Pharmaceutical Production

In pharmaceutical production, compliance-driven monitoring needs are defined to ensure validated process control, product safety, impurity management, batch traceability, and regulatory audit readiness, because pH is frequently designated as a Critical Process Parameter (CPP) controlled within ±0.02–0.05 pH under GMP. These monitoring requirements ensure that pH data are accurate, continuous (where required), traceable, secure, and defensible under inspection by authorities such as the FDA and EMA, and aligned with ICH quality frameworks.

Selecting the right pH measurement approach in Pharmaceutical Production

Selecting the right pH measurement approach in pharmaceutical production is critical because pH is often a validated Critical Process Parameter (CPP) controlled within narrow tolerances (typically ±0.02–0.05 pH) that directly affect API stability, impurity formation, protein integrity (biologics), solubility, and final product specifications. The chosen approach must align with process stage (synthesis, purification, formulation), media composition (solvents, buffers, low-conductivity WFI), temperature and pressure conditions, CIP/SIP exposure (pH 1–13, 121–130 °C), data integrity requirements (e.g., 21 CFR Part 11), and GMP validation protocols, ensuring accurate, stable, traceable, and audit-ready pH control throughout pharmaceutical manufacturing.

Decision Support for Pharmaceutical Production

Decision support defines how critical pH is within a specific pharmaceutical process by translating CPP classification, validated pH ranges (often ±0.02–0.05 pH), impurity sensitivity, API stability windows, and GMP risk level into measurable performance requirements. Its role is to determine the necessary accuracy, monitoring continuity, alarm thresholds, calibration rigor, and documentation depth, ensuring that the selected pH system protects product quality while remaining compliant and audit-ready.

Application-driven measurement strategies

Application-driven measurement strategies define how pH should be measured based on process stage (synthesis, crystallization, biologics, formulation), media chemistry (solvents, buffers, WFI <10 µS/cm), temperature and pressure conditions, and CIP/SIP exposure (pH 1–13, 121–130 °C). This step ensures the measurement configuration—inline, immersion, bypass, portable—matches real process conditions and delivers stable, representative readings without compromising sterility or validation status.

Linking Pharmaceutical Production to sensor selection and oem solutions

Linking pharmaceutical production to sensor selection converts regulatory, operational, and chemical requirements into specific sensor technologies and OEM capabilities, such as combination vs differential electrodes, low-conductivity designs, solvent-resistant glass, digital diagnostics, 21 CFR Part 11–ready data systems, and pressure-rated hygienic fittings. This step ensures that the chosen OEM solution provides the required accuracy, durability, lifecycle management, validation support, and long-term compliance performance needed for GMP-controlled pharmaceutical manufacturing.
