pH in nuclear power plant water system: how pH is used, controlled and measured

Why does pH matter in the nuclear power plant water system?

pH matters in nuclear power plant water systems because it directly affects reactor coolant chemistry, corrosion control, stress corrosion cracking (SCC), fuel cladding protection, steam generator integrity, radioactive contamination transport, crud deposition, radiolysis balance, steam purity, cooling water treatment, and long-term nuclear safety under high-temperature, high-pressure, and radiation-exposed operating conditions.

• Reactor coolant chemistry stability: Proper pH control maintains stable chemical equilibrium in the primary coolant system, especially in borated and lithium-treated water chemistry environments.
• Corrosion control: Controlled pH minimizes corrosion of stainless steel, nickel alloys, zirconium fuel cladding, and carbon steel components throughout the reactor and steam cycle.
• Stress corrosion cracking (SCC) prevention: Maintaining optimized pH reduces aggressive electrochemical conditions that can initiate cracking in steam generators, piping, and reactor materials.
• Fuel cladding protection: Correct pH chemistry reduces oxide formation and corrosion on zirconium alloy fuel cladding surfaces, improving fuel integrity and reactor performance.
• Steam generator integrity: Stable pH helps prevent corrosion product transport, sludge accumulation, and tube degradation in steam generators.
• Radioactive contamination transport reduction: Proper pH limits the dissolution and transport of activated corrosion products such as cobalt and iron throughout the reactor coolant system.
• Crud deposition control: Optimized pH reduces precipitation and deposition of corrosion products (“crud”) on fuel surfaces and heat-transfer equipment.
• Radiolysis chemistry balance: In radiation fields, water molecules decompose into reactive species, and controlled pH helps stabilize radiolytic chemistry and corrosion behavior.
• Steam purity maintenance: Correct secondary-side pH minimizes carryover of dissolved solids and corrosion products into turbines and steam circuits.
• Cooling water treatment efficiency: In auxiliary and cooling systems, pH affects scaling, biofouling, corrosion rates, and chemical treatment effectiveness.
• Wastewater and environmental compliance: Radioactive and non-radioactive effluent streams must typically remain within regulated discharge ranges such as pH 6.0–9.0 before release.
• Long-term operational safety and reliability: Precise pH control supports safe reactor operation, minimizes material degradation, reduces maintenance frequency, and extends equipment lifespan in nuclear environments.

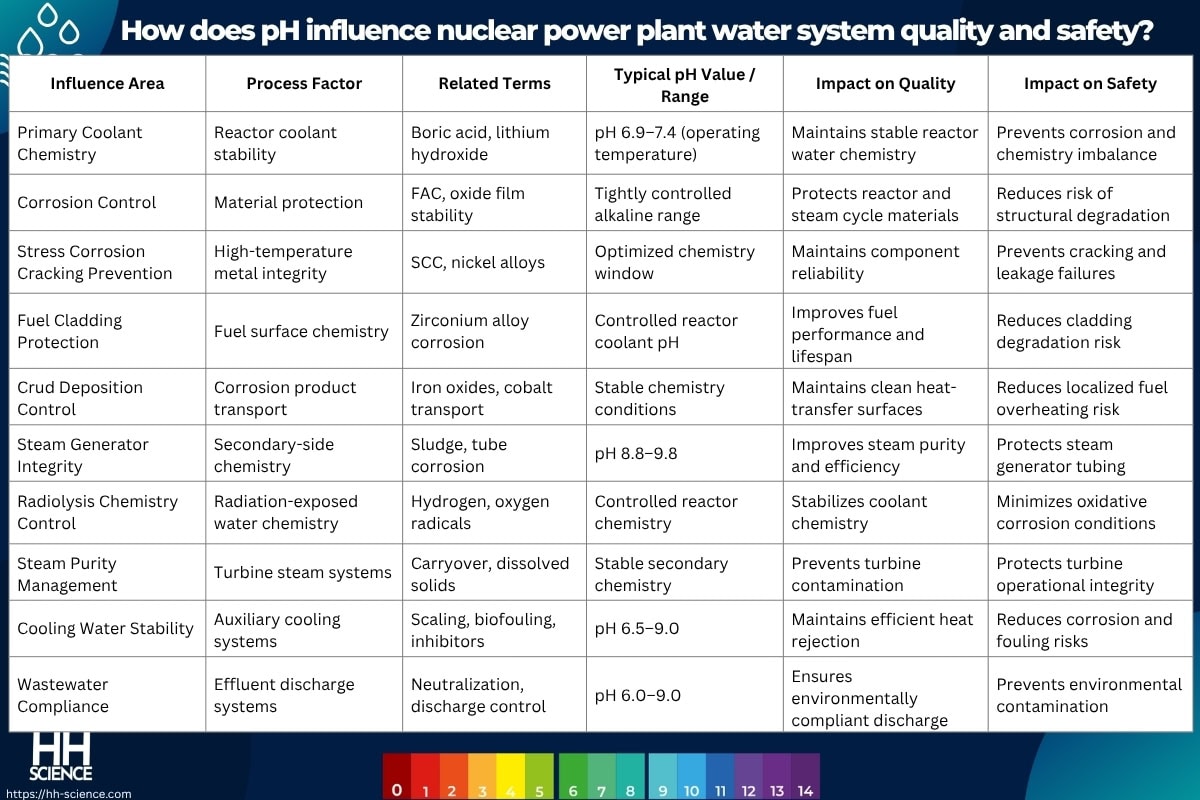

How does pH influence nuclear power plant water system quality and safety?

pH influences nuclear power plant water system quality and safety because hydrogen ion (H⁺) concentration directly affects corrosion kinetics, radiolytic chemistry, metal ion solubility, oxide film stability, fuel cladding behavior, steam generator integrity, and radioactive corrosion product transport under high-temperature, high-pressure, and radiation-exposed operating conditions. Maintaining tightly controlled chemistry ranges—such as pH 6.9–7.4 at operating temperature in primary coolant systems, pH 8.8–9.8 in secondary feedwater systems, and pH 6.0–9.0 for discharge water—is essential to minimize stress corrosion cracking (SCC), reduce crud deposition, maintain steam purity, protect reactor materials, and ensure nuclear operational safety and regulatory compliance.

Why is the nuclear power plant water system sensitive to pH deviations?

Nuclear power plant water systems are extremely sensitive to pH deviations because reactor coolant chemistry directly controls corrosion kinetics, oxide film stability, radiolytic reactions, boric acid–lithium balance, metal ion solubility, stress corrosion cracking (SCC), and radioactive corrosion product transport under high-temperature, high-pressure, and radiation-exposed conditions. Even small deviations outside tightly controlled chemistry windows—such as pH 6.9–7.4 at operating temperature in primary coolant systems or pH 8.8–9.8 in secondary feedwater systems—can rapidly alter electrochemical behavior, destabilize protective oxide layers, and increase the mobility of activated corrosion products like cobalt and iron.

If pH becomes too low, acidic conditions increase general corrosion, flow-accelerated corrosion (FAC), fuel cladding oxidation, steam generator tube degradation, and dissolution of corrosion products, leading to higher radioactive contamination transport and increased radiation field buildup within the plant. Low pH can also destabilize borated reactor coolant chemistry, increase crud deposition on fuel surfaces, and accelerate stress corrosion cracking in stainless steel and nickel-based alloys. If pH becomes too high, excessive alkalinity may promote localized corrosion, caustic concentration effects, mineral deposition, and steam generator fouling, while also disturbing lithium–boron chemistry balance and fuel surface chemistry. Incorrect pH additionally reduces the effectiveness of chemical treatment programs, affects dissolved hydrogen and oxygen control used for radiolysis suppression, and may compromise steam purity, turbine reliability, cooling system performance, and environmental discharge compliance (typically pH 6.0–9.0).

Typical pH ranges and control targets in the nuclear power plant water system

Typical pH ranges and control targets in nuclear power plant water systems are defined by the chemistry requirements of primary reactor coolant loops, secondary steam cycles, condensate return systems, borated water circuits, spent fuel pools, cooling water systems, and radioactive wastewater treatment processes, where precise hydrogen ion balance is essential to control corrosion, radiolysis, crud deposition, radioactive metal transport, and steam generator integrity. These targets—commonly including pH 6.9–7.4 at operating temperature for primary reactor coolant, pH 8.8–9.8 for secondary feedwater systems, and pH 6.0–9.0 for discharge water—are established based on factors such as reactor type, boric acid and lithium concentration, operating temperature and pressure, material compatibility, dissolved hydrogen control, radiation chemistry behavior, and regulatory safety requirements.

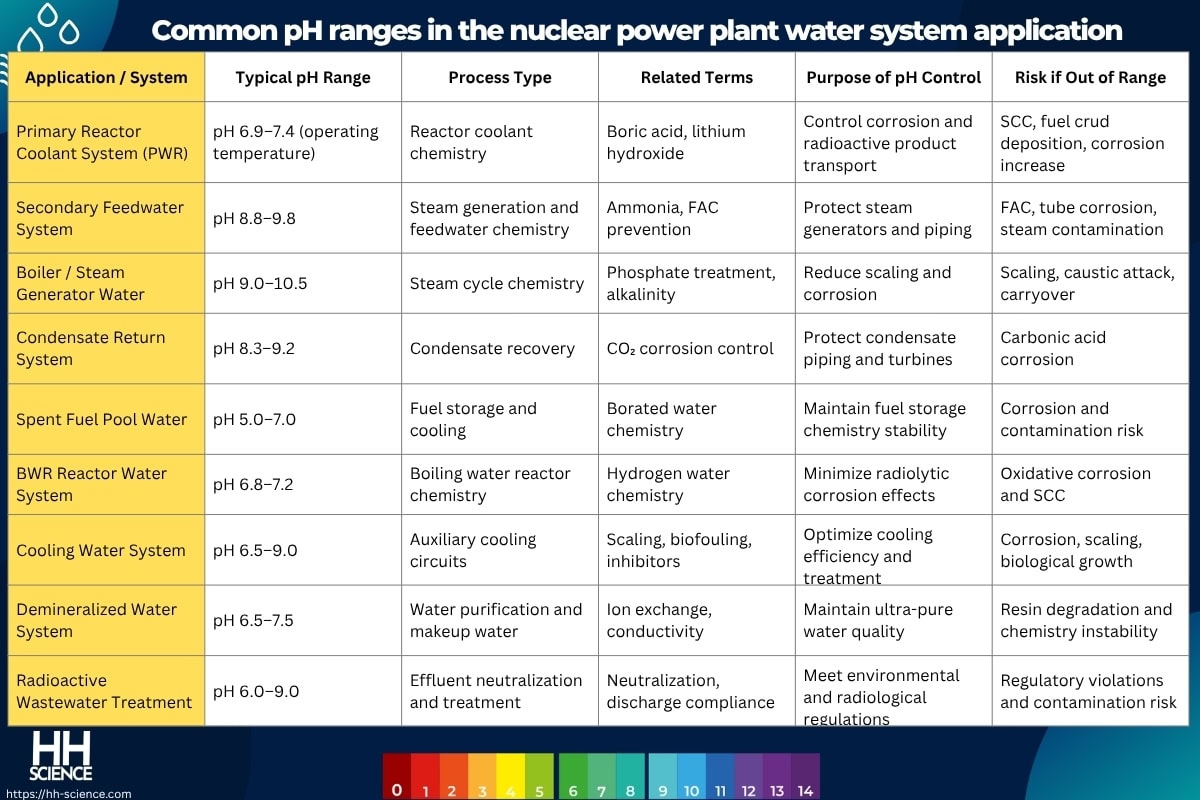

Common pH ranges in the nuclear power plant water system application

Common pH ranges in nuclear power plant water system applications typically include pH 6.9–7.4 (at operating temperature) for primary reactor coolant systems, pH 8.8–9.8 for secondary feedwater and steam cycle systems, pH 8.3–9.2 for condensate return systems, pH 6.5–9.0 for cooling water systems, and pH 6.0–9.0 for radioactive or non-radioactive wastewater discharge. These ranges are carefully selected to minimize stress corrosion cracking (SCC), flow-accelerated corrosion (FAC), fuel cladding oxidation, crud deposition, radioactive corrosion product transport, scaling, and steam contamination while maintaining stable reactor chemistry and regulatory compliance under high-temperature and radiation-exposed conditions.

Factors that define pH control targets

pH control targets in nuclear power plant water systems are defined by reactor type, operating temperature and pressure, boric acid and lithium concentration, metallurgy and material compatibility, radiolysis chemistry, corrosion behavior, stress corrosion cracking (SCC) risk, radioactive corrosion product transport, steam purity requirements, dissolved hydrogen and oxygen levels, chemical treatment programs, fuel cladding protection, cooling water conditions, wastewater discharge regulations, and nuclear safety standards. These factors determine the optimal hydrogen ion (H⁺) balance required to maintain stable reactor chemistry, minimize material degradation, control radioactive contamination transport, and ensure long-term operational safety under high-temperature and radiation-exposed conditions.

• Reactor type: Pressurized water reactors (PWRs) and boiling water reactors (BWRs) require different chemistry strategies and pH targets because their coolant chemistry and radiolysis behavior differ significantly.
• Operating temperature and pressure: High-temperature and high-pressure reactor conditions accelerate corrosion reactions and alter chemical equilibrium, requiring tightly controlled pH ranges such as pH 6.9–7.4 at operating temperature in primary coolant systems.
• Boric acid and lithium concentration: In PWR systems, boric acid controls reactivity while lithium hydroxide adjusts pH to minimize corrosion and radioactive metal transport.
• Metallurgy and material compatibility: Stainless steels, nickel alloys, zirconium fuel cladding, and carbon steel components each have specific chemistry conditions that minimize corrosion and degradation.
• Radiolysis chemistry: Radiation decomposes water into reactive oxidizing and reducing species, and controlled pH helps stabilize these radiolytic reactions.
• Corrosion behavior: pH directly affects general corrosion, flow-accelerated corrosion (FAC), oxide film stability, and metal dissolution throughout the reactor and steam cycle.
• Stress corrosion cracking (SCC) risk: Maintaining optimized pH reduces aggressive electrochemical conditions that can initiate cracking in reactor piping and steam generator materials.
• Radioactive corrosion product transport: Proper pH minimizes the dissolution and transport of activated metals such as cobalt, iron, and nickel within the coolant system.
• Steam purity requirements: Secondary-side pH control helps prevent carryover, sludge formation, and turbine contamination in steam systems.
• Dissolved hydrogen and oxygen control: Hydrogen and oxygen concentrations interact with pH to influence corrosion potential and radiolysis suppression strategies.
• Chemical treatment programs: Ammonia, phosphates, hydrogen injection, and other chemistry additives require stable pH conditions for effective performance.
• Fuel cladding protection: Controlled pH reduces oxidation and crud deposition on zirconium alloy fuel surfaces, improving fuel reliability.
• Cooling water conditions: Auxiliary cooling systems require balanced pH to control corrosion, scaling, and microbial growth simultaneously.
• Wastewater discharge regulations: Radioactive and non-radioactive effluent streams must typically remain within pH 6.0–9.0 to meet environmental compliance requirements.
• Nuclear safety and regulatory standards: Chemistry control targets are established according to reactor safety guidelines, OEM specifications, and nuclear regulatory requirements to ensure long-term safe operation.

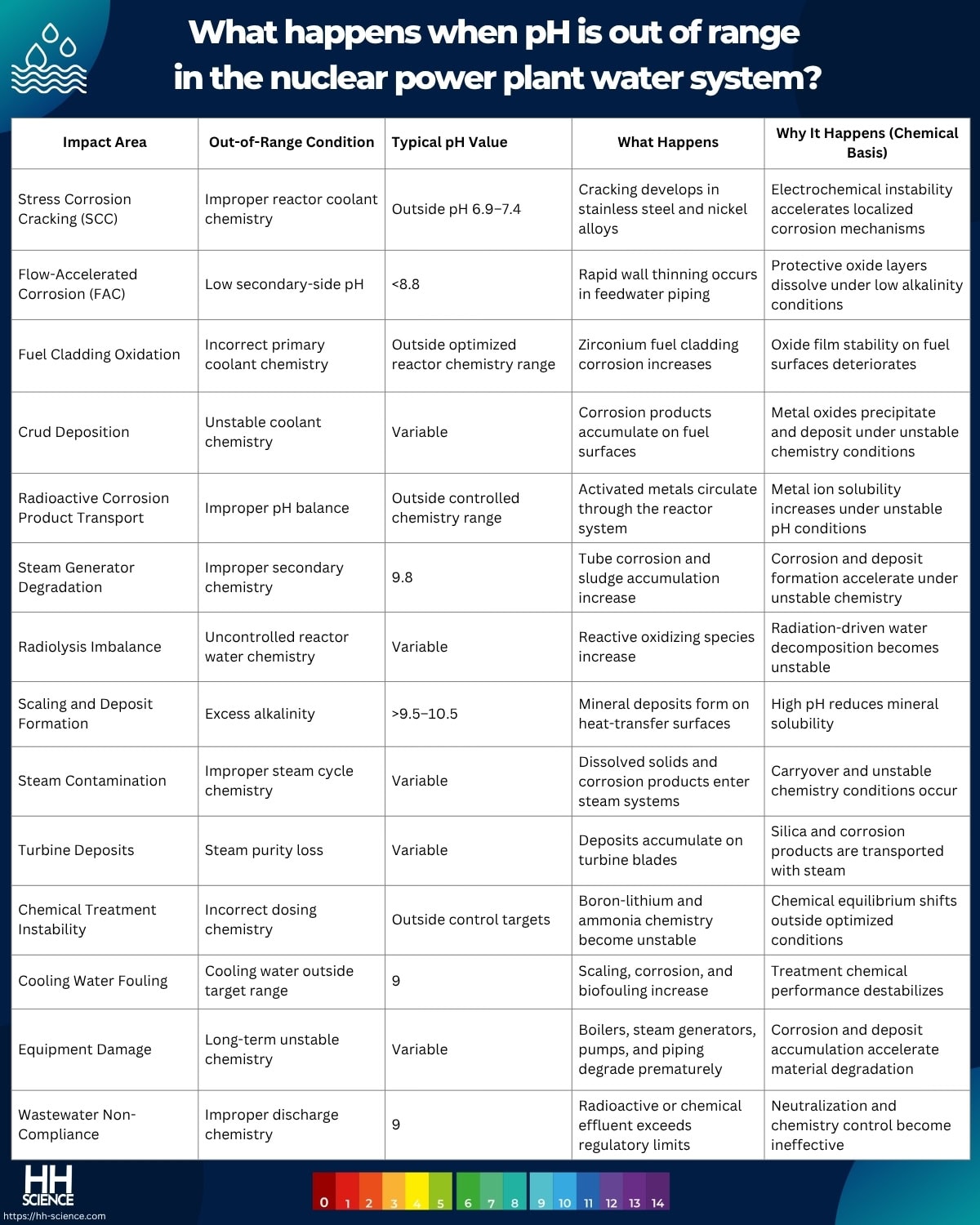

What happens when pH is out of range in the nuclear power plant water system?

When pH is out of range in nuclear power plant water systems, it can cause stress corrosion cracking (SCC), flow-accelerated corrosion (FAC), fuel cladding oxidation, crud deposition, radioactive corrosion product transport, steam generator degradation, radiolysis imbalance, scaling, steam contamination, turbine deposits, chemical treatment instability, cooling water fouling, equipment damage, and radioactive wastewater non-compliance because hydrogen ion (H⁺) concentration directly controls electrochemical corrosion reactions, oxide film stability, boron–lithium chemistry balance, metal solubility, and radiolytic chemistry behavior under high-temperature, high-pressure, and radiation-exposed conditions.

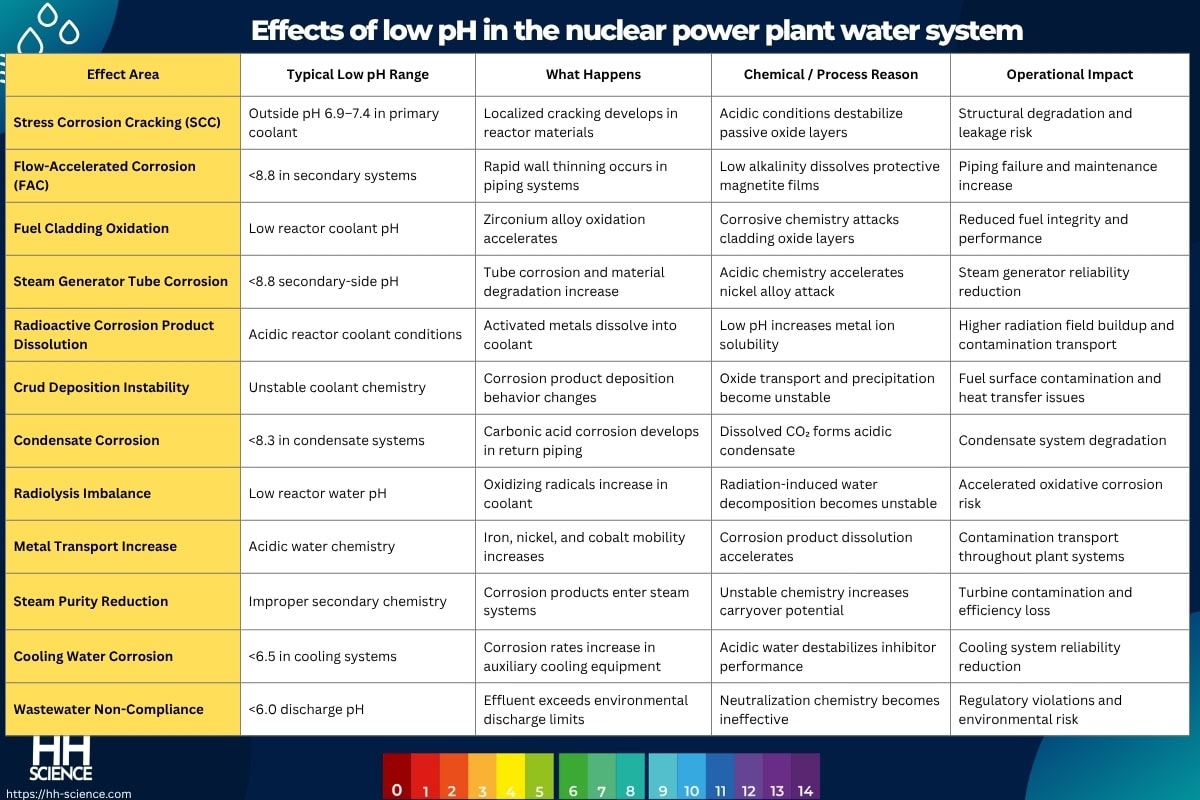

Effects of low pH in the nuclear power plant water system

Low pH in nuclear power plant water systems can cause stress corrosion cracking (SCC), flow-accelerated corrosion (FAC), fuel cladding oxidation, steam generator tube degradation, dissolution of radioactive corrosion products, crud deposition instability, condensate corrosion, radiolysis imbalance, increased metal transport, reduced steam purity, cooling water corrosion, and radioactive wastewater non-compliance because acidic conditions destabilize protective oxide films, increase metal ion solubility, accelerate electrochemical corrosion reactions, and intensify oxidative chemistry under high-temperature, high-pressure, and radiation-exposed conditions.

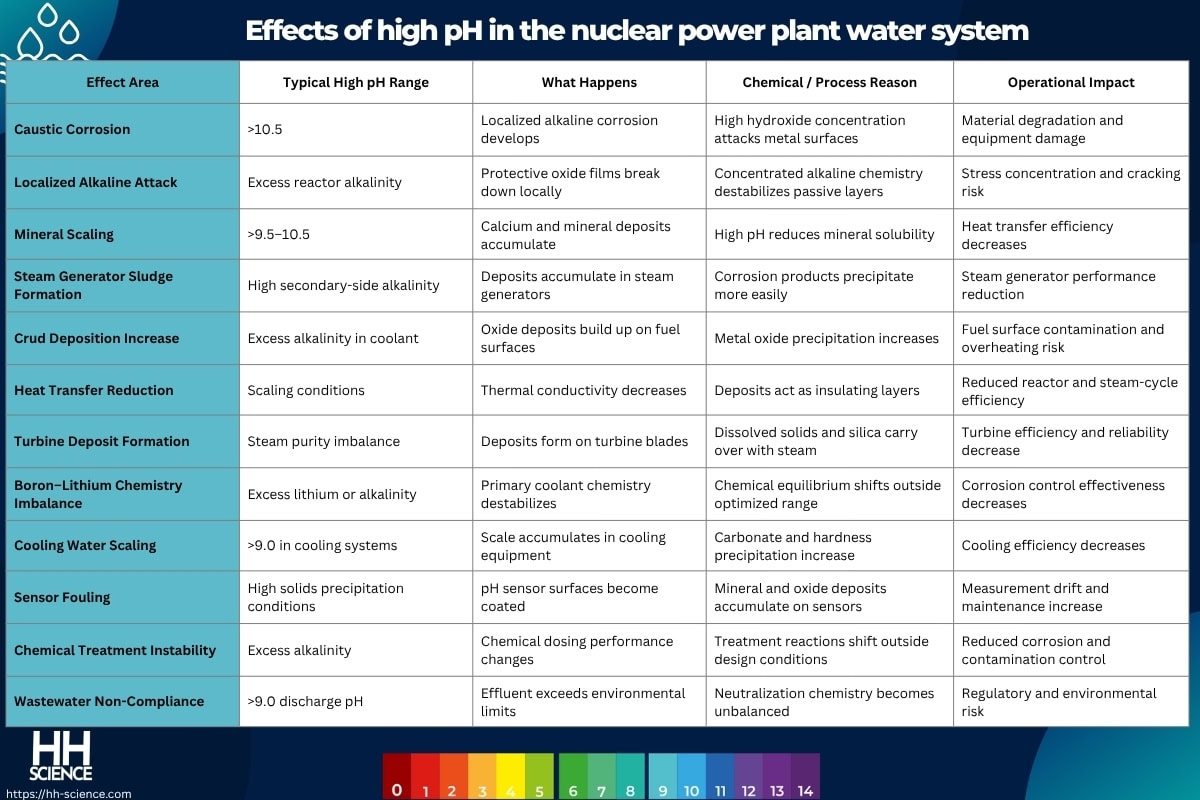

Effects of high pH in the nuclear power plant water system

High pH in nuclear power plant water systems can cause caustic corrosion, localized alkaline attack, mineral scaling, steam generator sludge accumulation, crud deposition, reduced heat transfer efficiency, turbine deposits, chemistry imbalance, boron–lithium control instability, cooling water scaling, sensor fouling, and wastewater discharge non-compliance because excessive hydroxide ion (OH⁻) concentration alters chemical equilibrium, decreases mineral solubility, destabilizes oxide films in localized areas, and promotes precipitation of corrosion products and dissolved solids under high-temperature and radiation-exposed operating conditions.

Operational, quality, and compliance risks

Operational, quality, and compliance risks in nuclear power plant water systems increase significantly when pH moves outside tightly controlled chemistry targets because reactor coolant chemistry, corrosion behavior, radiolysis balance, steam purity, radioactive corrosion product transport, and chemical treatment performance are all highly dependent on stable hydrogen ion (H⁺) concentration under high-temperature, high-pressure, and radiation-exposed conditions. Even small deviations from optimized ranges such as pH 6.9–7.4 in primary coolant systems, pH 8.8–9.8 in secondary feedwater systems, and pH 6.0–9.0 for discharge water can accelerate material degradation, destabilize oxide films, increase contamination transport, reduce heat-transfer efficiency, and create environmental or regulatory compliance issues that directly affect reactor reliability, operational safety, maintenance cost, and long-term plant performance.

• Reactor system reliability risk: Incorrect pH destabilizes primary and secondary water chemistry, increasing stress corrosion cracking (SCC), flow-accelerated corrosion (FAC), fuel cladding oxidation, and steam generator degradation under high-temperature and high-pressure conditions.
• Radiation field buildup risk: Low pH increases the solubility and transport of activated corrosion products such as cobalt, nickel, and iron, causing higher radioactive contamination levels throughout the coolant system and maintenance areas.
• Fuel performance risk: Unstable coolant pH promotes crud deposition and oxide growth on zirconium alloy fuel cladding, reducing heat transfer efficiency and increasing localized overheating risk.
• Steam generator and turbine quality risk: Improper secondary-side pH (commonly outside pH 8.8–9.8) increases sludge formation, corrosion product carryover, and steam contamination, which can reduce turbine efficiency and equipment lifespan.
• Heat transfer efficiency loss: Excessively high pH can promote mineral scaling and oxide deposition on heat-transfer surfaces, while low pH accelerates corrosion product generation, both reducing thermal efficiency.
• Chemical treatment instability: Incorrect pH disrupts boric acid–lithium balance, ammonia treatment, hydrogen water chemistry, oxygen scavenger performance, and corrosion inhibitor effectiveness, reducing overall chemistry control stability.
• Cooling system operational risk: Cooling water outside typical ranges such as pH 6.5–9.0 increases scaling, biofouling, microbiological growth, and corrosion in auxiliary cooling circuits and heat exchangers.
• Instrumentation and monitoring risk: Extreme pH conditions accelerate pH sensor fouling, reference poisoning, slope degradation, and calibration drift, reducing measurement reliability in ultra-low conductivity water systems (<10 µS/cm).
• Wastewater compliance risk: Radioactive and non-radioactive effluent streams outside discharge limits (commonly pH 6.0–9.0) may violate environmental permits and nuclear regulatory discharge requirements.
• Safety and regulatory risk: Persistent pH deviations can compromise nuclear chemistry specifications, OEM operating limits, and reactor safety margins, potentially triggering operational restrictions, increased inspection requirements, or regulatory corrective actions.

pH measurement challenges in the nuclear power plant water system

pH measurement challenges in nuclear power plant water systems are driven by ultra-low conductivity reactor coolant conditions (<10 µS/cm), high-temperature and high-pressure sampling environments, radiation exposure, boric acid–lithium chemistry balance, dissolved hydrogen control, corrosion product contamination, radiolysis effects, and the need for continuous high-accuracy monitoring (typically ±0.05–0.10 pH) across primary coolant loops, secondary steam cycles, condensate systems, and radioactive wastewater treatment processes. These demanding operating conditions can affect electrode stability, reference junction performance, temperature compensation accuracy, signal noise resistance, sensor lifespan, and calibration reliability, making specialized low-conductivity, radiation-resistant, and contamination-resistant pH measurement technologies essential for safe and stable nuclear chemistry control.

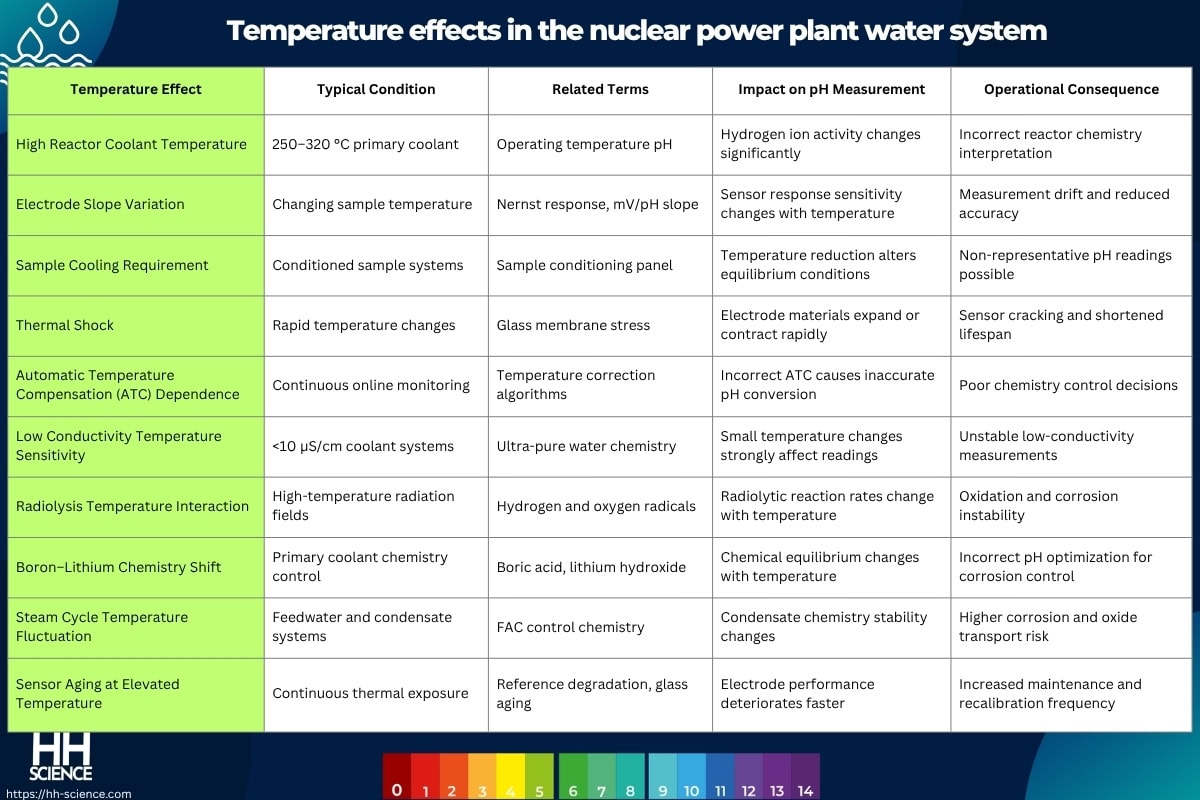

Temperature effects

Temperature effects are one of the most critical pH measurement challenges in nuclear power plant water systems because reactor coolant loops, steam generators, condensate systems, and sample conditioning lines operate under extreme thermal conditions where temperature directly changes hydrogen ion activity, water dissociation equilibrium, electrode response slope, conductivity, and chemical reaction behavior. In nuclear applications, process temperatures may exceed 250–320 °C in reactor coolant systems, while pH sensors typically measure conditioned samples cooled to approximately 25–80 °C, meaning improper temperature compensation, unstable sample cooling, thermal shock, or delayed thermal equilibrium can cause significant measurement drift, inaccurate chemistry control, unstable boric acid–lithium balance, and incorrect corrosion management decisions.

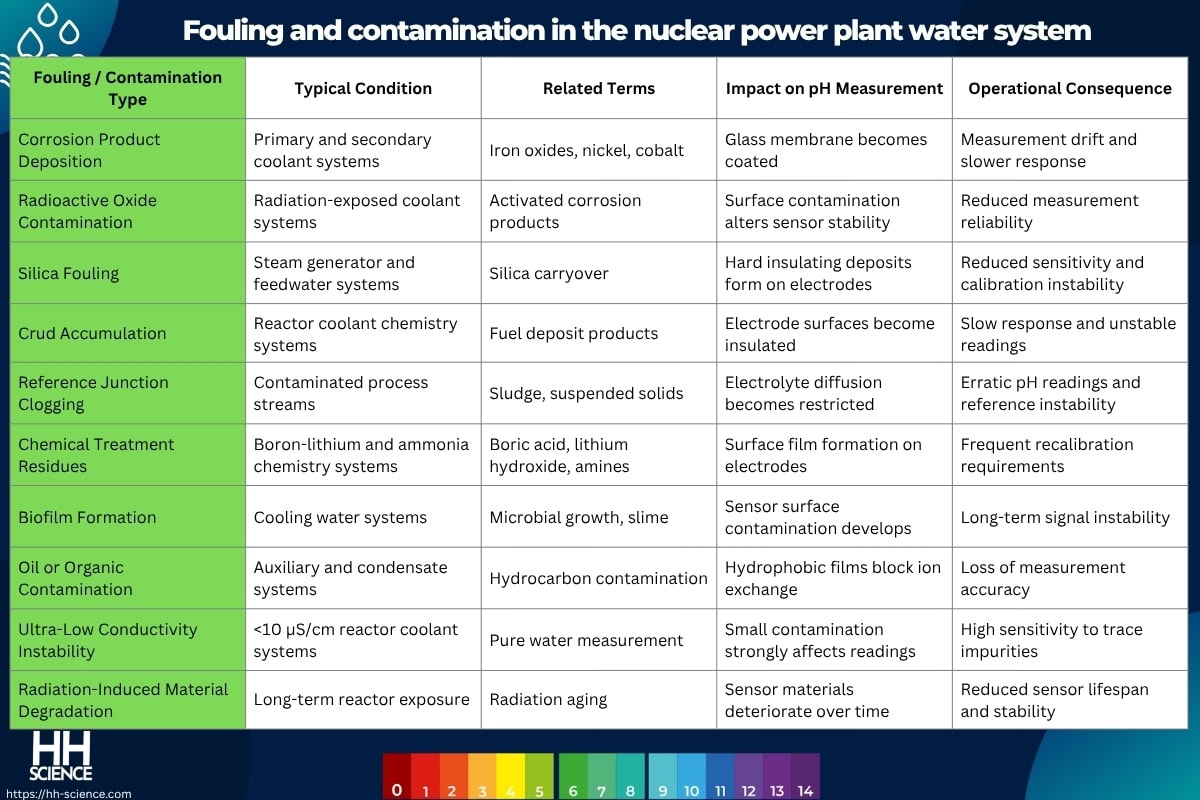

Fouling and contamination

Fouling and contamination are major pH measurement challenges in nuclear power plant water systems because reactor coolant loops, steam generators, condensate systems, cooling circuits, and radioactive wastewater treatment processes continuously expose sensors to corrosion products, radioactive metal oxides, silica deposits, sludge, biofilms, treatment chemical residues, and ultra-fine particulate contamination under high-temperature and radiation-exposed conditions. These contaminants can coat the pH glass membrane, poison or clog the reference junction, alter hydrogen ion diffusion, increase electrical resistance, destabilize ultra-low conductivity measurements (<10 µS/cm), and cause slower response times, signal drift (commonly ±0.1–0.3 pH), unstable calibration behavior, and shortened sensor lifespan in continuous nuclear chemistry monitoring applications.

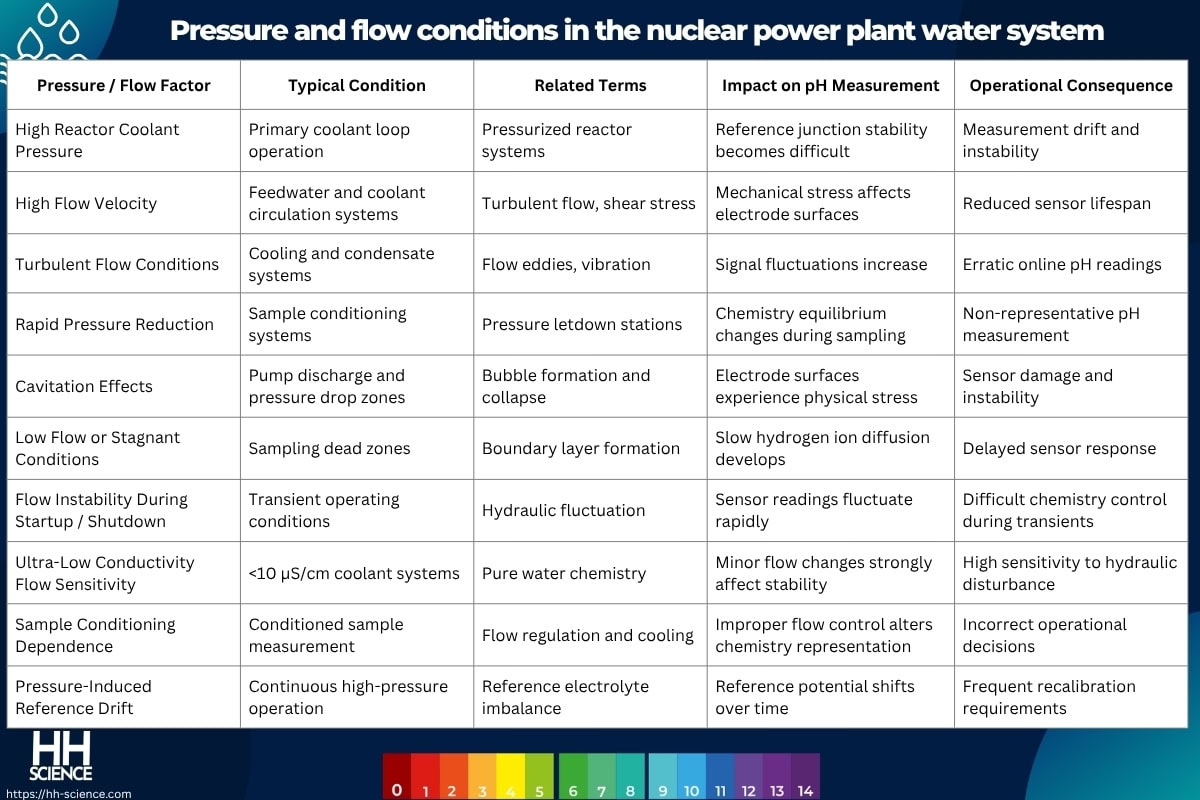

Pressure and flow conditions

Pressure and flow conditions are major pH measurement challenges in nuclear power plant water systems because primary reactor coolant loops, steam generator circuits, feedwater systems, condensate return lines, and sample conditioning systems operate under extreme hydraulic conditions involving high pressure, high flow velocity, thermal cycling, turbulence, cavitation, and rapid pressure reduction before measurement. These conditions can disturb the electrochemical stability of the glass membrane and reference junction, alter hydrogen ion diffusion behavior, introduce vibration and signal noise, destabilize ultra-low conductivity measurements (<10 µS/cm), and create non-representative chemistry readings if sample pressure and flow are not properly conditioned before reaching the pH sensor.

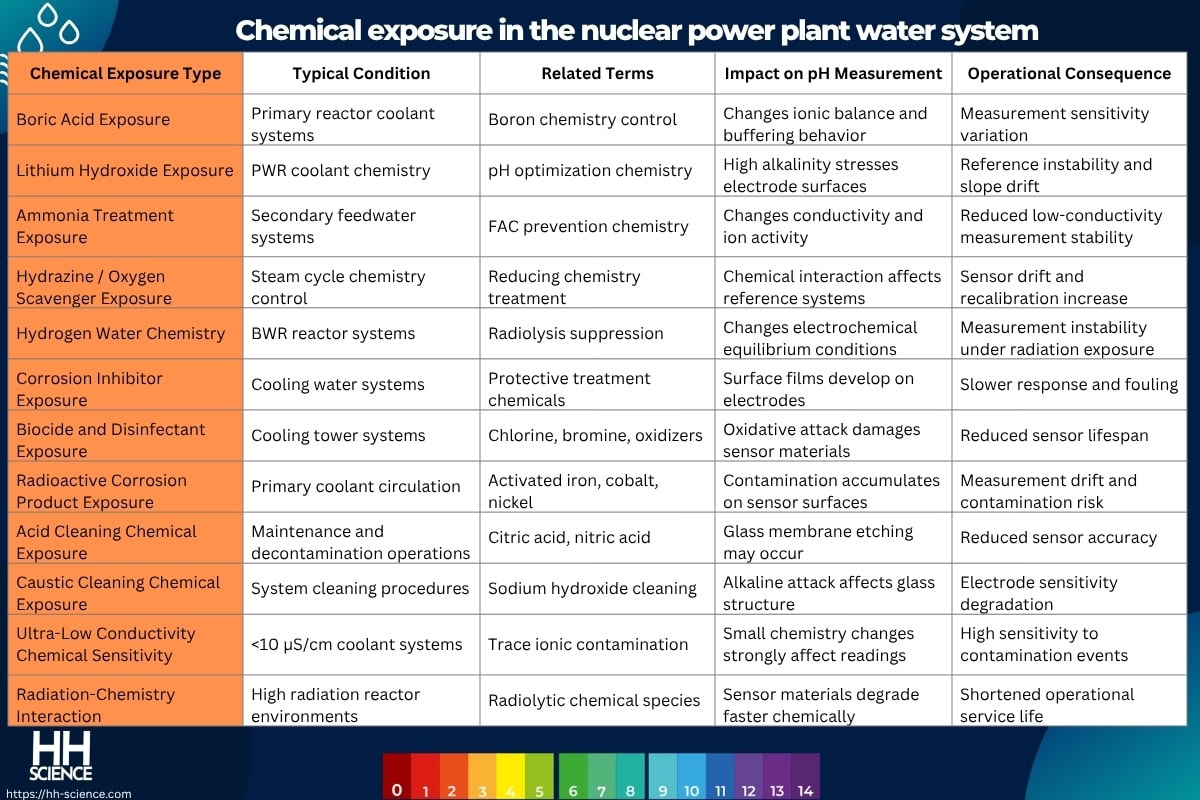

Chemical exposure (disinfectants, corrosion inhibitors)

Chemical exposure is a major pH measurement challenge in nuclear power plant water systems because sensors are continuously exposed to aggressive chemistry additives and treatment compounds such as boric acid, lithium hydroxide, ammonia, hydrazine, hydrogen injection chemistry, corrosion inhibitors, oxygen scavengers, biocides, oxidizing disinfectants, and radioactive corrosion products across primary coolant systems, secondary steam cycles, cooling water circuits, and radioactive wastewater treatment processes. These chemicals can alter reference junction chemistry, attack glass membrane surfaces, form insulating deposits, change ionic activity in ultra-low conductivity water (<10 µS/cm), and accelerate sensor aging, resulting in signal drift, unstable calibration, slower response time, reduced electrode slope stability (normally near 59.16 mV/pH at 25 °C), and shortened operational lifespan under continuous radiation and high-temperature exposure.

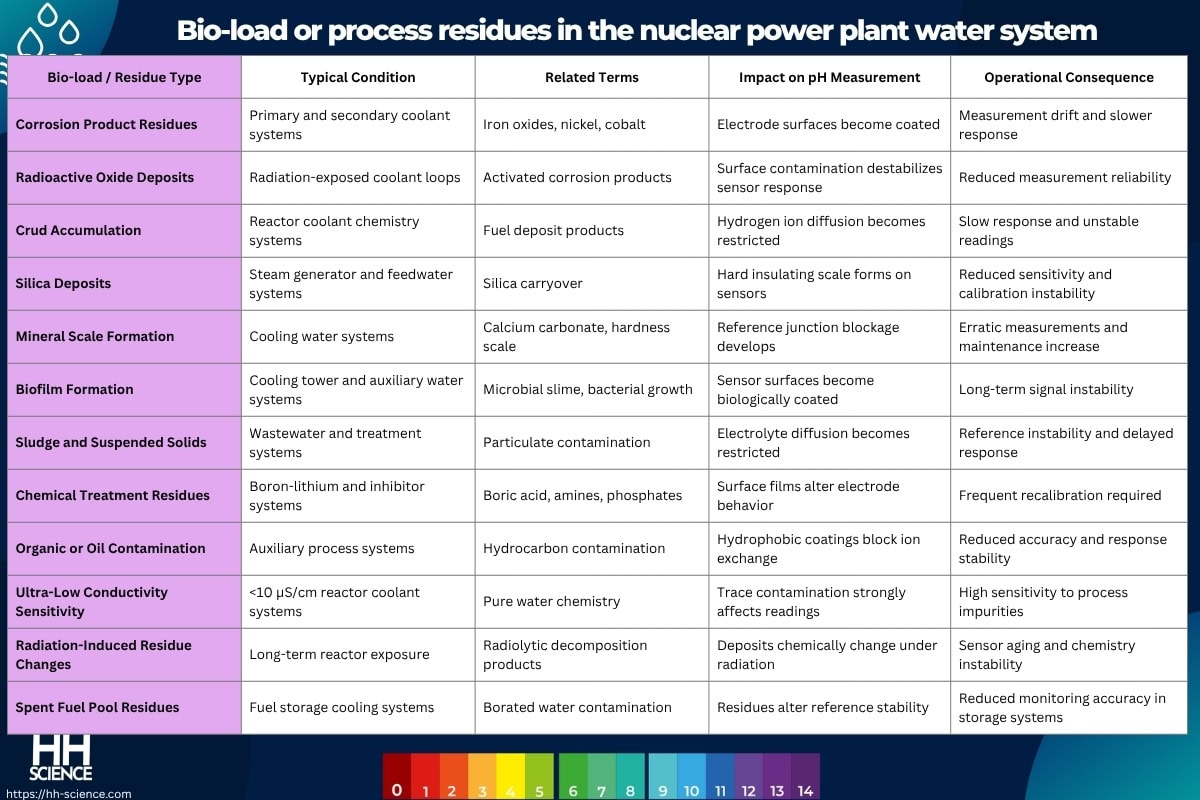

Bio-load or process residues

Bio-load and process residues are important pH measurement challenges in nuclear power plant water systems because cooling water circuits, condensate systems, auxiliary treatment loops, radioactive wastewater units, and spent fuel pool systems can accumulate corrosion products, radioactive oxides, sludge, silica deposits, biofilms, mineral scale, chemical treatment residues, and organic contamination during long-term operation. These deposits interfere with hydrogen ion exchange at the glass membrane, clog or poison reference junctions, destabilize ultra-low conductivity measurements (<10 µS/cm), increase electrical resistance, and cause slower response times, unstable calibration, signal drift (commonly ±0.1–0.3 pH), and shortened sensor lifespan in continuous nuclear chemistry monitoring applications.

Common pH sensor types used in the nuclear power plant water system

Common pH sensor types used in nuclear power plant water systems include low-conductivity combination pH sensors, differential pH sensors, double- and triple-junction reference electrodes, high-temperature and high-pressure pH sensors, radiation-resistant pH sensors, digital or smart pH sensors, flow-through sample chamber sensors, retractable inline sensors, immersion probes, and ISFET or solid-state pH sensors for specialized nuclear chemistry applications. These sensor technologies are selected to maintain stable and high-accuracy measurement (typically ±0.05–0.10 pH) in ultra-pure coolant systems (<10 µS/cm), boric acid–lithium chemistry control, high-temperature reactor coolant loops, steam generator sampling systems, condensate return circuits, cooling water treatment, and radioactive wastewater monitoring while resisting radiation exposure, corrosion product contamination, thermal shock, pressure fluctuation, and long-term process fouling under continuous nuclear plant operating conditions.

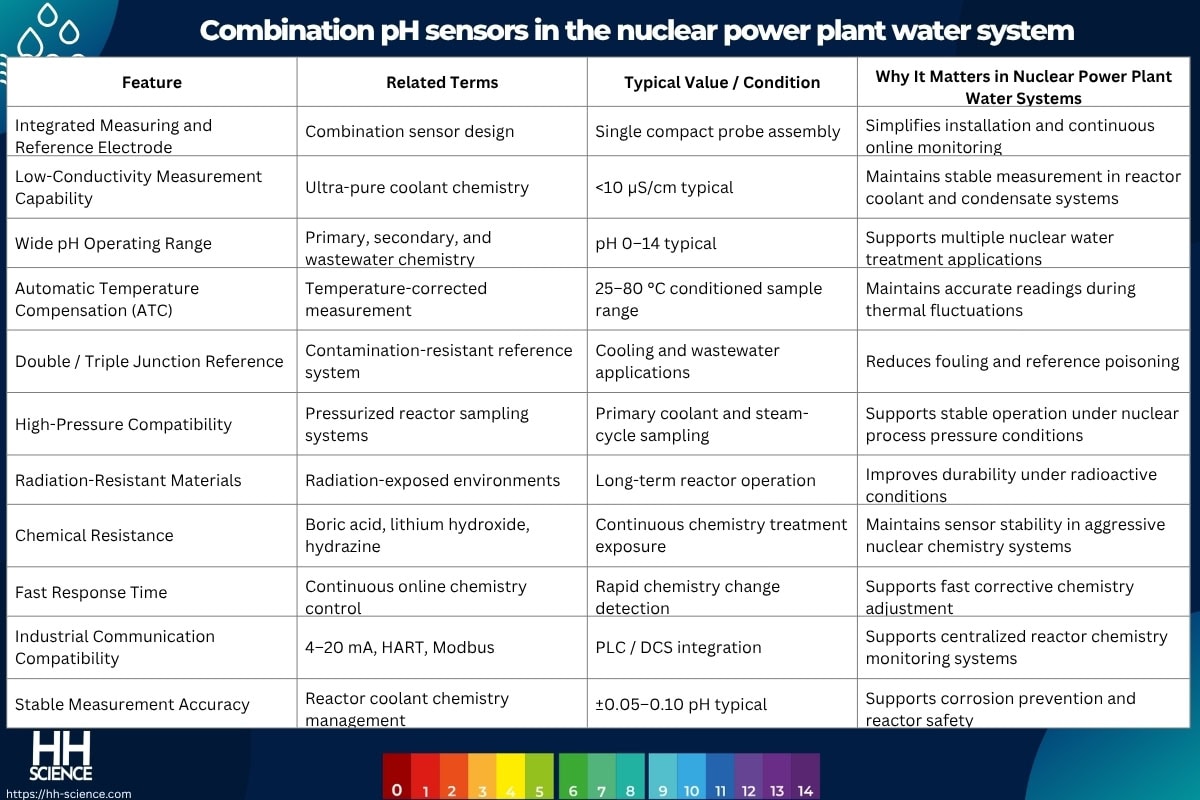

Combination pH sensors

Combination pH sensors are widely used in nuclear power plant water systems because they integrate the measuring electrode and reference electrode into a single compact assembly, allowing stable and continuous monitoring in primary reactor coolant systems, secondary steam cycles, condensate return loops, cooling water systems, spent fuel pools, and radioactive wastewater treatment processes. Their design supports critical nuclear chemistry requirements such as ultra-low conductivity measurement (<10 µS/cm), boric acid–lithium chemistry control, high-pressure sample conditioning, automatic temperature compensation (ATC), radiation-resistant operation, and stable accuracy (typically ±0.05–0.10 pH) under high-temperature and radiation-exposed conditions.

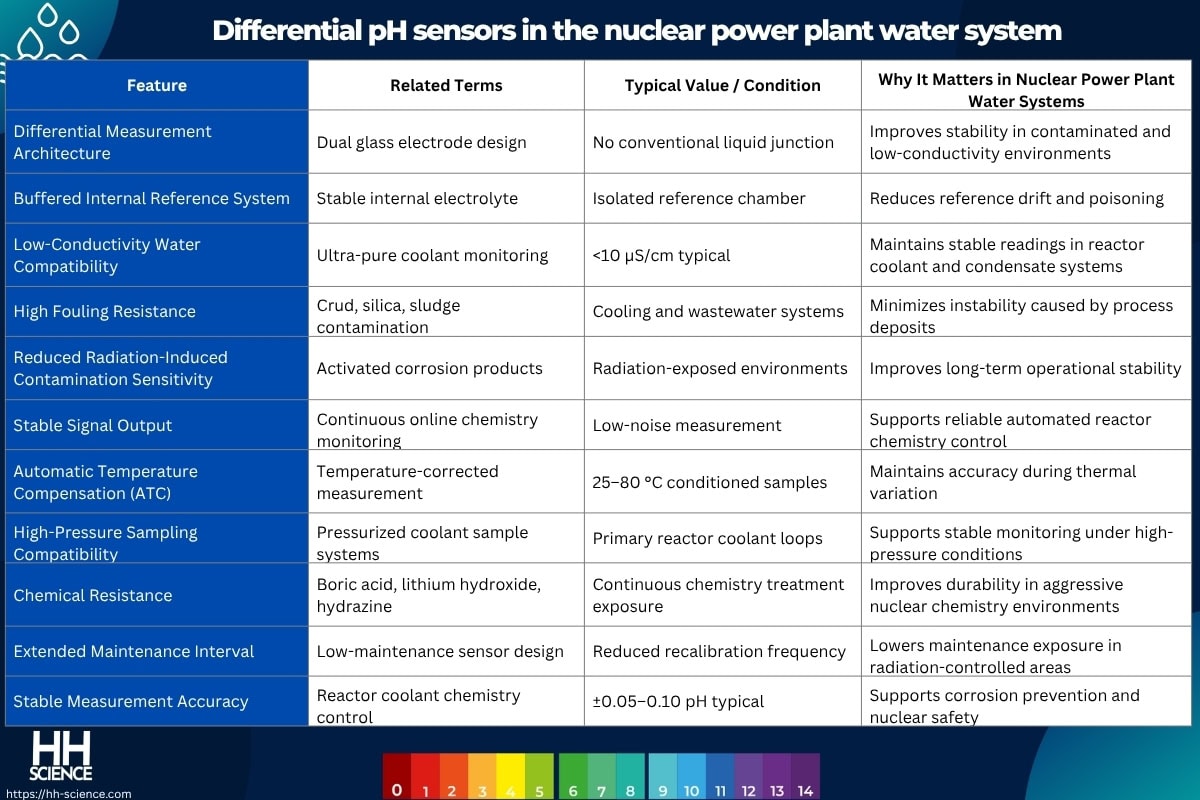

Differential pH sensors

Differential pH sensors are highly suitable for nuclear power plant water systems because they provide stable and contamination-resistant measurement in applications where conventional liquid-junction reference electrodes are vulnerable to fouling, radiation-induced contamination, corrosion products, boric acid chemistry, sludge accumulation, and ultra-low conductivity coolant conditions. By using a differential measurement architecture with multiple glass electrodes and an internally buffered reference system instead of a traditional flowing junction, these sensors reduce reference poisoning, improve long-term stability, minimize drift in pure water systems (<10 µS/cm), and maintain reliable accuracy (typically ±0.05–0.10 pH) across primary coolant loops, secondary steam cycles, condensate systems, cooling water circuits, and radioactive wastewater treatment processes.

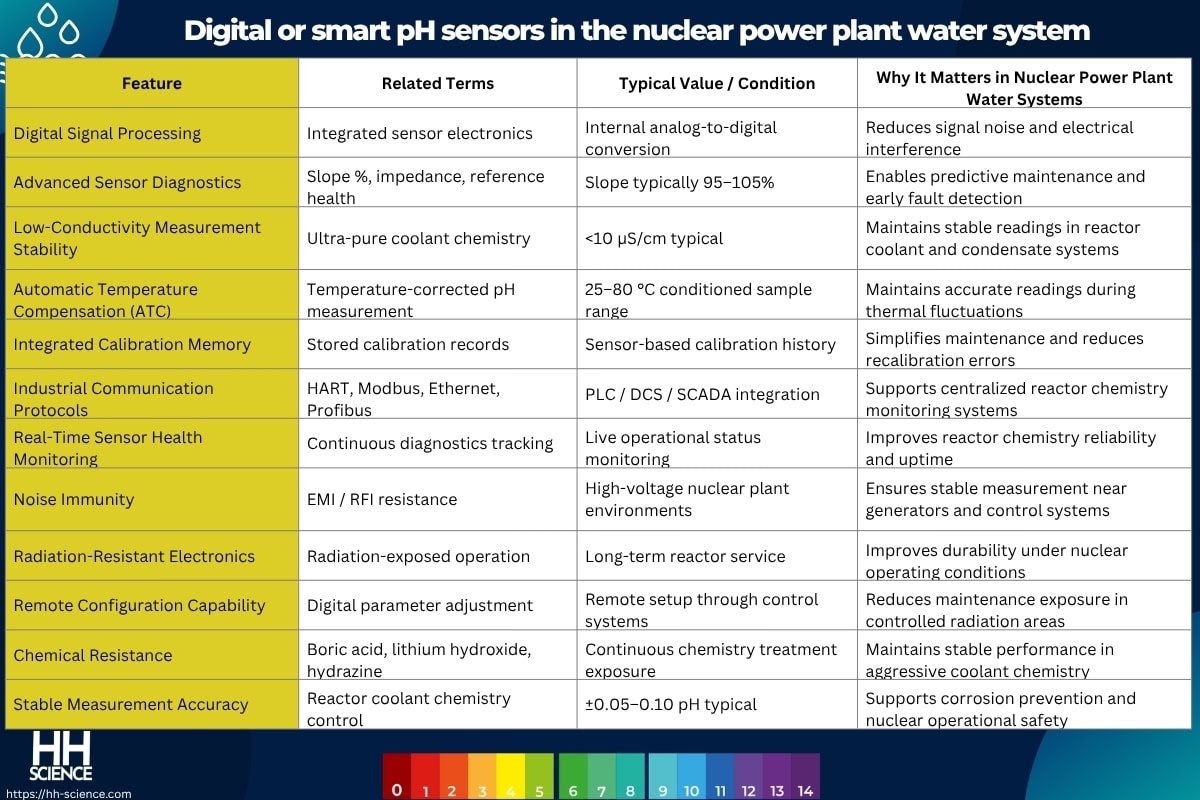

Digital or smart pH sensors

Digital or smart pH sensors are highly suitable for nuclear power plant water systems because they provide stable, diagnostics-driven, and low-noise measurements in ultra-low conductivity reactor coolant systems (<10 µS/cm), high-temperature sample conditioning loops, condensate return circuits, cooling water systems, and radioactive wastewater treatment applications where continuous online chemistry monitoring is critical for reactor safety and corrosion control. By converting analog signals into digital data directly inside the sensor, they minimize electromagnetic interference from nuclear plant equipment, improve measurement stability under radiation exposure, support predictive diagnostics, and maintain reliable accuracy (typically ±0.05–0.10 pH) during long-term operation in high-pressure and chemically aggressive environments.

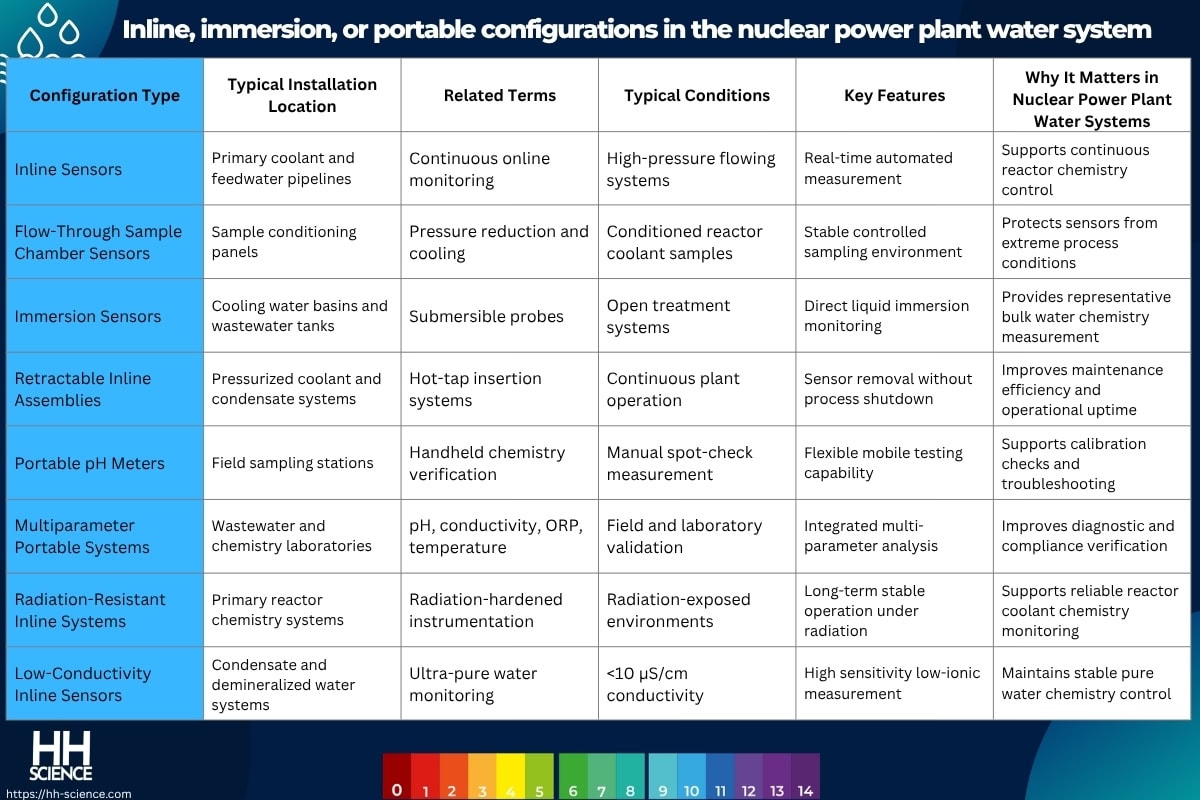

Inline, immersion, or portable configurations

Inline, immersion, and portable pH sensor configurations are all used in nuclear power plant water systems because different process areas—such as primary reactor coolant loops, secondary steam cycles, condensate return systems, spent fuel pools, cooling water circuits, demineralized water systems, and radioactive wastewater treatment units—require different installation approaches depending on pressure, radiation exposure, temperature, accessibility, contamination level, and monitoring objectives. Inline configurations support continuous automated chemistry monitoring in pressurized systems, immersion sensors are used in tanks and open treatment basins, and portable pH systems provide field verification, calibration confirmation, emergency troubleshooting, and independent chemistry validation while maintaining tight control ranges such as pH 6.9–7.4 in primary coolant systems and pH 6.0–9.0 for discharge water.

Installation and maintenance considerations in the nuclear power plant water system

Installation and maintenance considerations in nuclear power plant water systems are critical because pH sensors must operate reliably in ultra-low conductivity coolant environments (<10 µS/cm), high-temperature and high-pressure sample conditioning systems, radiation-exposed areas, boric acid–lithium chemistry loops, condensate return circuits, steam generator systems, and radioactive wastewater treatment processes where even small measurement deviations can affect reactor chemistry stability and corrosion control. Proper installation in representative sampling locations with controlled flow, pressure reduction, thermal conditioning, shielding from radiation exposure, and stable hydraulic conditions—combined with regular calibration using traceable buffers (pH 4.01, 7.00, 10.01), cleaning to remove corrosion products, radioactive oxides, silica deposits, crud, and biofilm contamination, and monitoring of reference junction integrity, electrode slope (typically 95–105%), and automatic temperature compensation (ATC)—is essential to maintain reliable accuracy (typically ±0.05–0.10 pH), minimize maintenance exposure in controlled radiation zones, and ensure long-term nuclear chemistry stability and regulatory compliance.

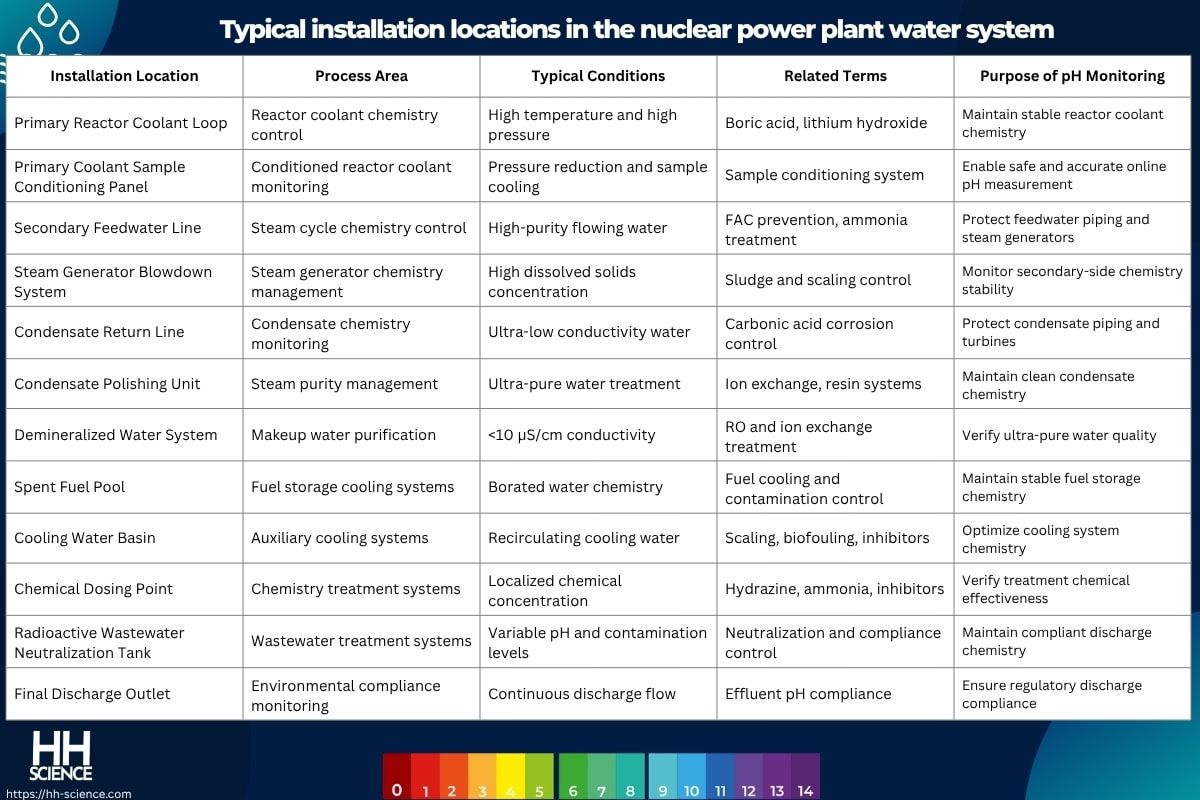

Typical installation locations

Typical pH sensor installation locations in nuclear power plant water systems are selected at critical chemistry control points where reactor safety, corrosion prevention, steam purity, radioactive contamination management, cooling efficiency, and wastewater compliance depend on stable and accurate pH monitoring. These locations include primary reactor coolant loops, secondary feedwater systems, steam generator sample panels, condensate return lines, demineralized water systems, spent fuel pools, cooling water circuits, chemical dosing systems, and radioactive wastewater treatment units, each requiring specific installation designs based on pressure, radiation exposure, conductivity, flow stability, and contamination risk.

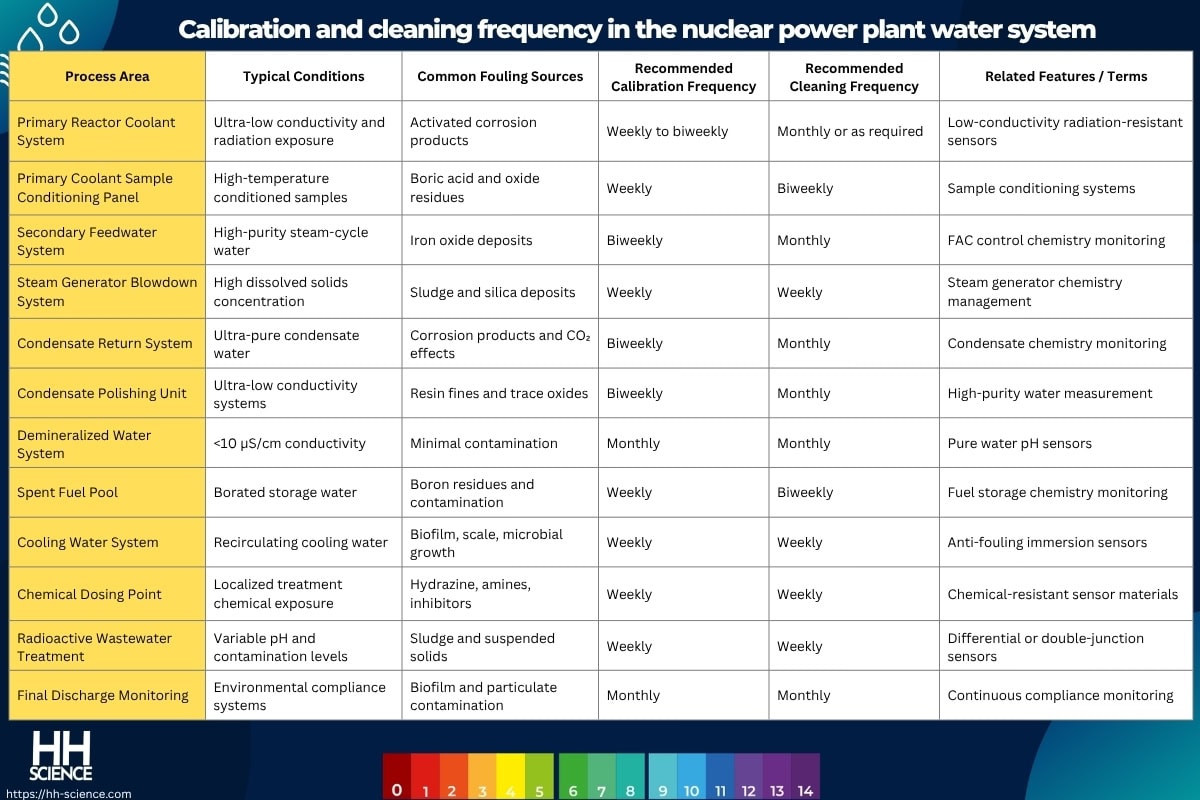

Calibration and cleaning frequency

Calibration and cleaning frequency in nuclear power plant water systems depend on factors such as ultra-low conductivity reactor coolant conditions (<10 µS/cm), radiation exposure, boric acid–lithium chemistry balance, corrosion product contamination, silica deposits, sludge accumulation, cooling water biofouling, and continuous online operation in primary coolant loops, secondary steam cycles, condensate systems, and radioactive wastewater treatment processes. To maintain stable accuracy (typically ±0.05–0.10 pH) and reliable nuclear chemistry control, sensors are routinely calibrated using traceable buffers (pH 4.01, 7.00, 10.01) and cleaned to remove radioactive oxides, crud, silica scale, biofilm deposits, and treatment chemical residues that can destabilize electrode response and reference junction performance.

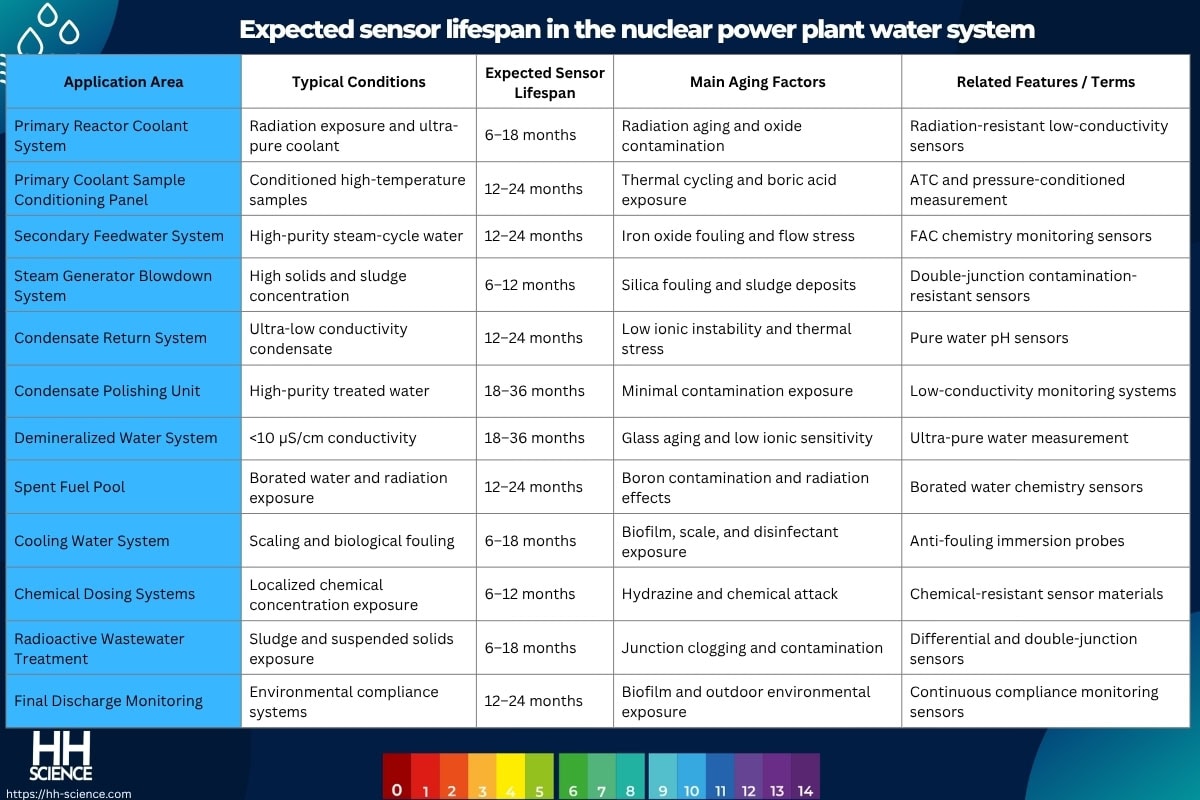

Expected sensor lifespan

Expected pH sensor lifespan in nuclear power plant water systems varies depending on radiation exposure, ultra-low conductivity conditions (<10 µS/cm), operating temperature, pressure cycling, boric acid–lithium chemistry, corrosion product contamination, silica fouling, cooling water biofilm formation, and maintenance quality across reactor coolant systems, steam-cycle applications, cooling water circuits, and radioactive wastewater treatment processes. Sensors operating in clean conditioned sample systems may last several years, while probes exposed to radiation, sludge, high thermal stress, aggressive treatment chemicals, or continuous fouling typically experience accelerated glass aging, reference degradation, junction poisoning, and reduced electrode slope stability.

Trade-offs between accuracy, maintenance, and durability

In nuclear power plant water systems, trade-offs between accuracy, maintenance, and durability occur because pH sensors must operate in ultra-low conductivity coolant environments (<10 µS/cm), radiation-exposed areas, high-temperature and high-pressure sample systems, boric acid–lithium chemistry loops, and contaminated process streams while maintaining highly stable measurements typically within ±0.05–0.10 pH for reactor chemistry and corrosion control. High-accuracy low-conductivity sensors designed for primary coolant and condensate monitoring often use highly sensitive glass membranes, specialized reference systems, and precision temperature compensation that provide superior stability in pure water chemistry but require more frequent calibration, careful sample conditioning, and shorter replacement intervals due to radiation aging, contamination, and thermal stress, whereas more durable differential or double-junction sensors with reinforced reference systems and anti-fouling designs can tolerate sludge, silica deposits, cooling water biofilms, and chemical exposure more effectively with lower maintenance frequency, but may respond more slowly or provide slightly lower sensitivity in critical ultra-pure reactor chemistry applications.

Regulatory or quality considerations in the nuclear power plant water system

Regulatory and quality considerations in nuclear power plant water systems are critical because pH directly affects reactor coolant chemistry stability, corrosion control, stress corrosion cracking (SCC) prevention, fuel cladding protection, steam generator integrity, radioactive corrosion product transport, steam purity, cooling water performance, and radioactive wastewater discharge compliance under high-temperature, high-pressure, and radiation-exposed operating conditions. Maintaining tightly controlled chemistry targets—such as pH 6.9–7.4 at operating temperature for primary reactor coolant systems, pH 8.8–9.8 for secondary feedwater systems, and pH 6.0–9.0 for discharge water—through continuous online monitoring, traceable calibration buffers (pH 4.01, 7.00, 10.01), low-conductivity measurement technologies (<10 µS/cm), radiation-resistant instrumentation, documented chemistry procedures, and automated SCADA/DCS data logging is essential to comply with nuclear safety regulations, environmental discharge permits, OEM reactor chemistry specifications, and long-term operational reliability requirements.

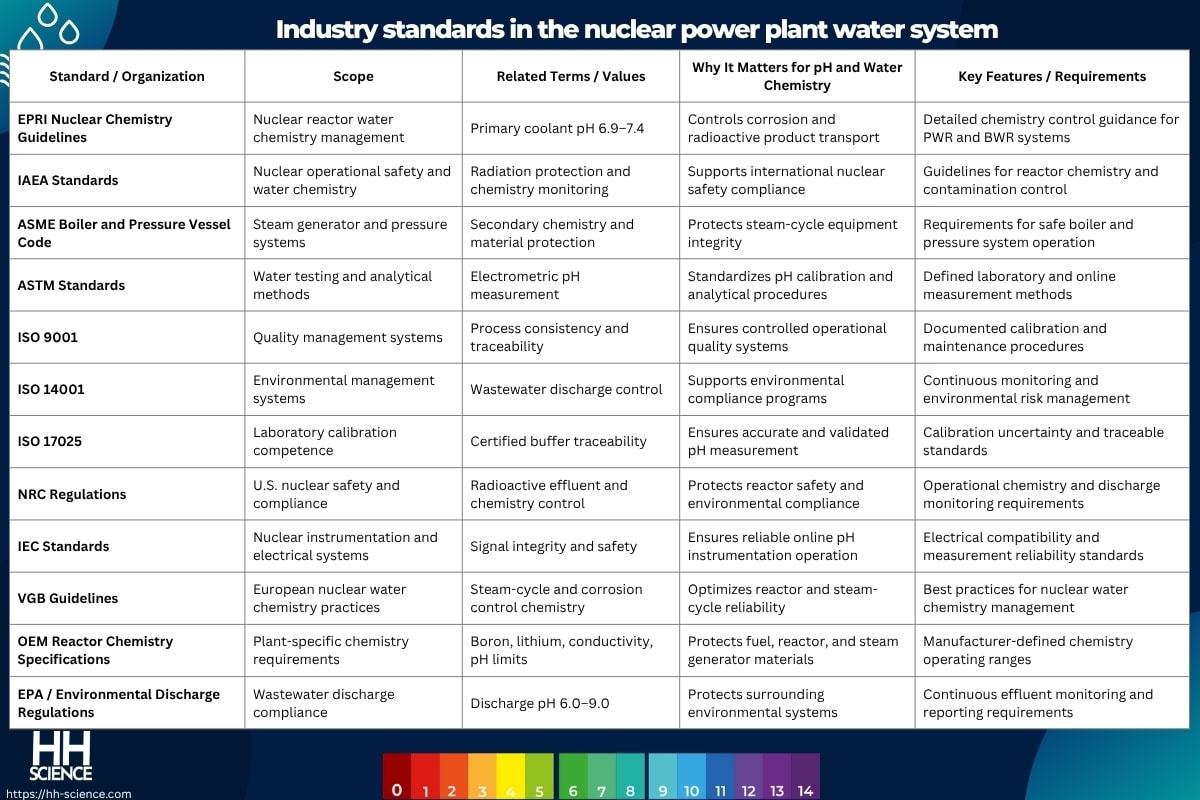

Industry standards in the nuclear power plant water system

Industry standards in nuclear power plant water systems define the required practices for reactor coolant chemistry, steam-cycle water quality, corrosion prevention, radioactive contamination control, steam generator integrity, wastewater discharge compliance, and instrumentation reliability to ensure safe and stable nuclear operation under high-temperature, high-pressure, and radiation-exposed conditions. These standards establish limits and best practices for parameters such as pH, conductivity, dissolved oxygen, boron concentration, lithium concentration, chloride, sulfate, silica, sodium, and corrosion product transport, helping nuclear facilities minimize stress corrosion cracking (SCC), flow-accelerated corrosion (FAC), fuel degradation, radioactive contamination buildup, and environmental compliance risk.

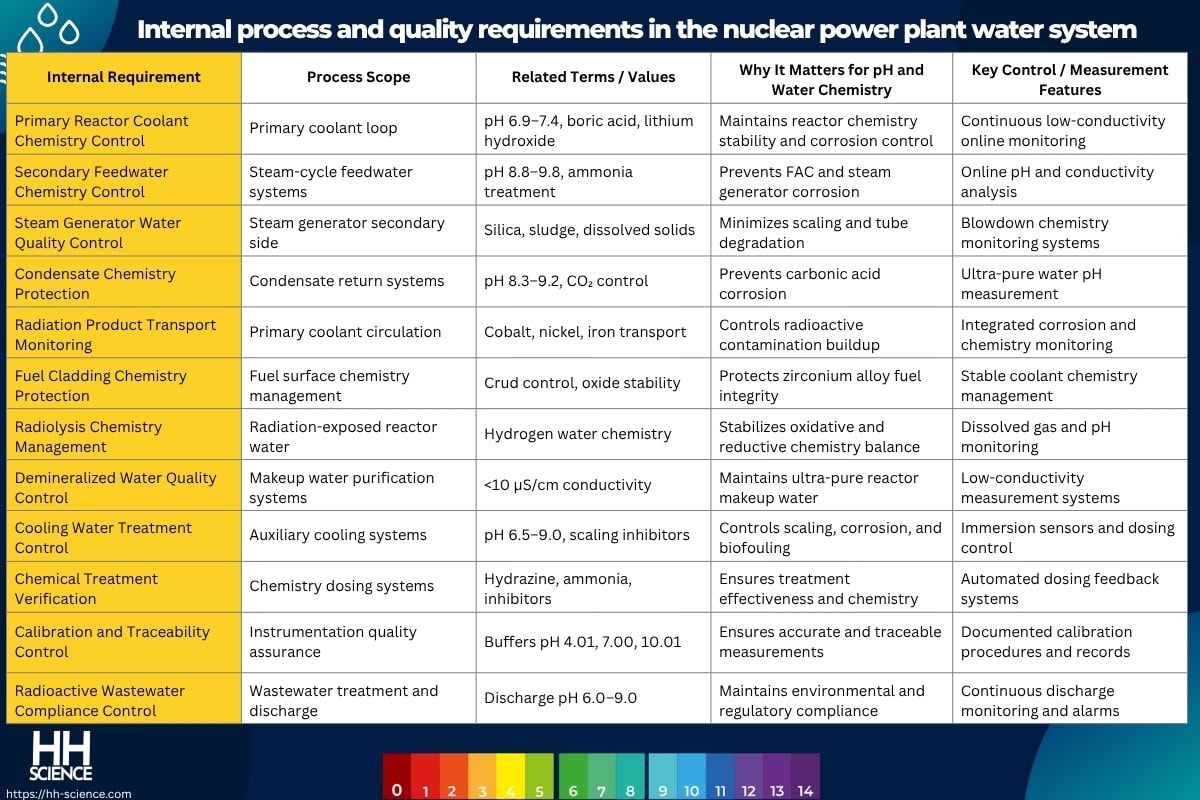

Internal process and quality requirements in the nuclear power plant water system

Internal process and quality requirements in nuclear power plant water systems define how reactor coolant chemistry, steam-cycle purity, boric acid–lithium balance, corrosion control, radioactive contamination transport, condensate quality, cooling water stability, and wastewater neutralization must be continuously monitored and controlled to maintain reactor safety, fuel integrity, steam generator reliability, and long-term operational performance. These requirements establish strict operational targets for parameters such as pH, conductivity, dissolved oxygen, boron concentration, lithium concentration, silica, sodium, chloride, sulfate, and corrosion product transport, ensuring stable chemistry conditions such as pH 6.9–7.4 in primary coolant systems, pH 8.8–9.8 in secondary feedwater systems, and pH 6.0–9.0 for discharge water.

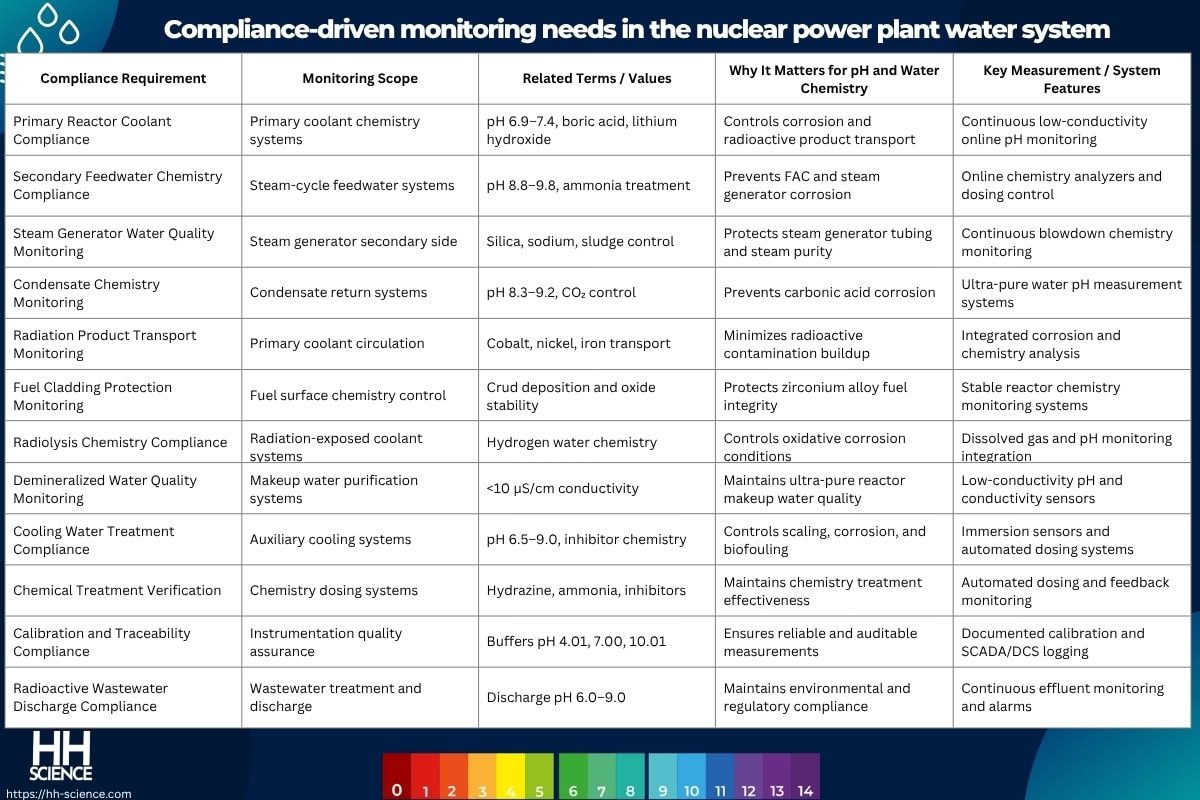

Compliance-driven monitoring needs in the nuclear power plant water system

Compliance-driven monitoring needs in nuclear power plant water systems are required to ensure reactor safety, steam-cycle reliability, corrosion prevention, fuel integrity, radioactive contamination control, environmental discharge compliance, and adherence to nuclear chemistry specifications under high-temperature, high-pressure, and radiation-exposed operating conditions. Continuous monitoring of parameters such as pH, conductivity, dissolved oxygen, boron concentration, lithium concentration, silica, chloride, sulfate, sodium, hydrogen injection chemistry, and radioactive corrosion product transport is essential to maintain tightly controlled conditions including pH 6.9–7.4 in primary reactor coolant systems, pH 8.8–9.8 in secondary feedwater systems, and pH 6.0–9.0 for wastewater discharge, minimizing risks associated with stress corrosion cracking (SCC), flow-accelerated corrosion (FAC), crud deposition, and regulatory non-compliance.

Selecting the right pH measurement approach in the nuclear power plant water system

Selecting the right pH measurement approach in nuclear power plant water systems is critical because applications such as primary reactor coolant chemistry, secondary steam-cycle feedwater treatment, condensate return monitoring, borated water systems, spent fuel pool chemistry, cooling water treatment, and radioactive wastewater neutralization involve ultra-low conductivity conditions (<10 µS/cm), high-temperature and high-pressure sampling environments, radiation exposure, boric acid–lithium chemistry balance, corrosion product contamination, radiolysis effects, and strict nuclear chemistry control requirements. Choosing appropriate technologies—such as low-conductivity combination sensors, differential or double-junction reference systems, radiation-resistant materials, digital smart sensors with automatic temperature compensation (ATC), flow-through sample conditioning assemblies, and chemically resistant electrode designs—ensures stable high-accuracy measurement (typically ±0.05–0.10 pH), reliable corrosion prevention, minimized radioactive contamination transport, improved steam generator and fuel integrity, reduced maintenance exposure in radiation-controlled areas, and compliance with reactor chemistry specifications including pH 6.9–7.4 in primary coolant systems and pH 6.0–9.0 for discharge water.

Decision support for the nuclear power plant water system

Decision support in nuclear power plant water systems evaluates factors such as reactor type (PWR or BWR), coolant conductivity (<10 µS/cm), boric acid–lithium chemistry balance, radiation exposure level, operating temperature and pressure, corrosion risk, crud transport behavior, sample conditioning requirements, and wastewater discharge compliance (pH 6.0–9.0) to determine the most appropriate pH measurement solution. By analyzing these process variables together with target chemistry ranges such as pH 6.9–7.4 for primary reactor coolant systems and pH 8.8–9.8 for secondary feedwater systems, decision support helps nuclear engineers and chemistry specialists select suitable sensor technologies, installation methods, calibration strategies, and maintenance intervals that ensure stable reactor chemistry control, corrosion prevention, and long-term operational safety.

Application-driven measurement strategies

Application-driven measurement strategies align pH monitoring technologies with specific nuclear process conditions including primary reactor coolant chemistry, steam generator water treatment, condensate return monitoring, borated spent fuel pool systems, cooling water circuits, demineralized water production, and radioactive wastewater neutralization, each having unique conductivity, contamination, radiation, pressure, and thermal characteristics. These strategies determine whether low-conductivity pH sensors, differential reference systems, radiation-resistant materials, flow-through sample conditioning assemblies, inline analyzers, immersion probes, or digital smart sensors are required to maintain accurate measurement, minimize contamination-induced drift, improve chemistry stability, and reduce maintenance exposure in radiation-controlled environments.

Linking the nuclear power plant water system  to sensor selection and OEM solutions

Linking nuclear power plant water systems to sensor selection and OEM solutions ensures that pH instrumentation is specifically engineered for harsh nuclear operating conditions involving radiation exposure, ultra-pure water chemistry, boric acid and lithium treatment, high-pressure sample conditioning, corrosion product contamination, thermal cycling, and long-term continuous operation. OEM solutions typically combine radiation-resistant low-conductivity pH sensors, differential or double-junction reference systems, automatic temperature compensation (ATC), digital communication protocols (HART, Modbus, Profibus, Ethernet), sample conditioning panels, chemically resistant materials, and SCADA/DCS integration to provide stable high-accuracy measurement (typically ±0.05–0.10 pH), improved reliability, predictive diagnostics, and regulatory-compliant reactor chemistry management.
