pH in power plants water system: how pH is used, controlled and measured

Why does pH matter in the power plants water system?

pH matters in power plant water systems because it directly affects corrosion control, scale formation, boiler efficiency, steam purity, condensate protection, cooling water performance, chemical treatment effectiveness, equipment lifespan, and environmental compliance throughout high-temperature and high-pressure water cycles.

1. Corrosion control: Proper pH control minimizes acid or alkaline attack on boilers, condensers, pipelines, and turbine components, especially in feedwater systems typically maintained around pH 8.5–9.8.
2. Scale prevention: Maintaining the correct pH reduces precipitation of minerals such as calcium, magnesium, silica, and iron compounds that can form insulating deposits on heat-transfer surfaces.
3. Boiler efficiency: Stable pH improves heat transfer efficiency and reduces energy loss by preventing corrosion products and scaling inside boiler tubes.
4. Steam purity: Correct pH helps maintain low contamination levels in steam systems, protecting turbines from deposits and corrosion-related damage.
5. Condensate system protection: Slightly alkaline condensate conditions reduce dissolved carbon dioxide corrosion and extend the lifespan of return piping and condensate equipment.
6. Cooling water performance: In cooling towers and circulation systems, pH affects biological activity, scaling tendency, corrosion rates, and effectiveness of water treatment chemicals.
7. Chemical treatment effectiveness: Water treatment chemicals such as ammonia, phosphates, oxygen scavengers, and corrosion inhibitors depend on controlled pH conditions for optimal performance.
8. Equipment lifespan: Proper pH management reduces mechanical failure, tube leaks, and maintenance frequency in critical plant infrastructure.
9. Environmental compliance: Wastewater discharge and blowdown streams must typically remain within regulatory ranges such as pH 6.0–9.0 before release to the environment.

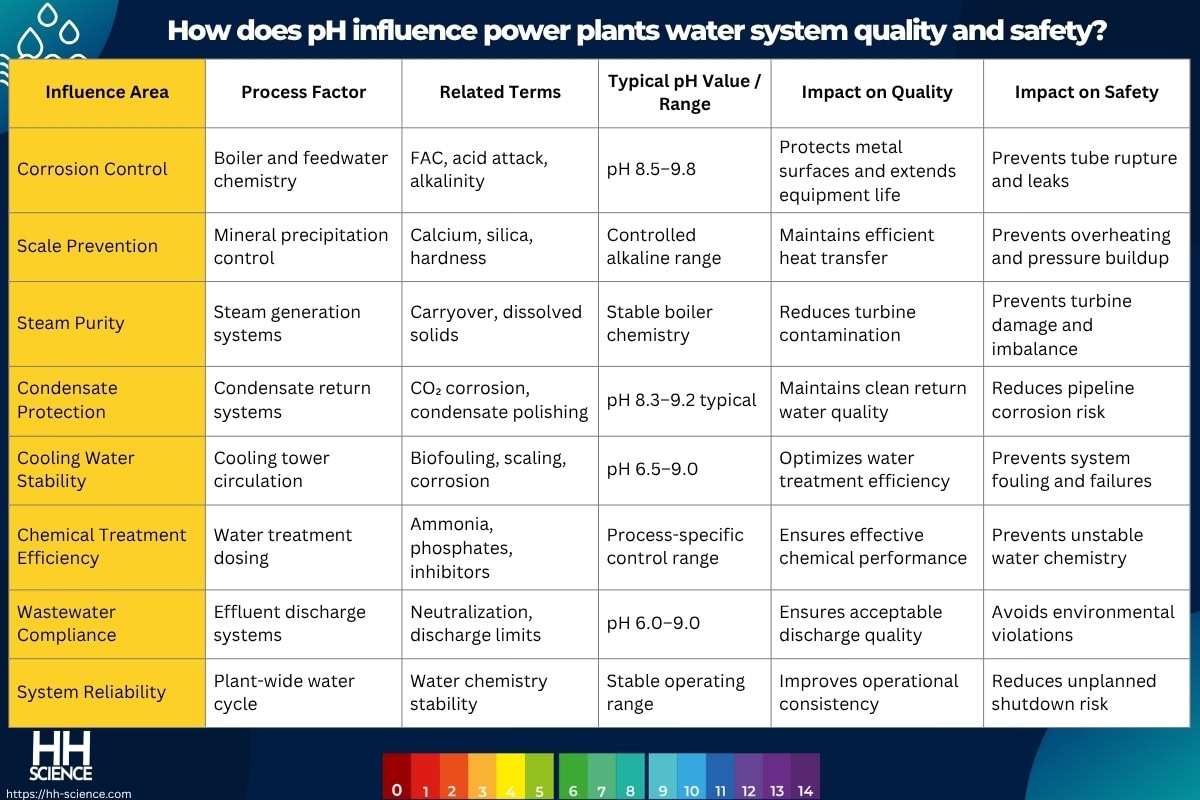

How does pH influence power plants water system quality and safety?

pH influences power plant water system quality and safety because hydrogen ion (H⁺) concentration directly affects corrosion behavior, mineral solubility, chemical treatment efficiency, steam purity, biological growth, and the stability of high-temperature water chemistry throughout boilers, condensers, cooling towers, and wastewater systems. Maintaining controlled pH ranges—such as pH 8.5–9.8 in boiler/feedwater systems and pH 6.0–9.0 for discharge water—ensures efficient heat transfer, protects critical equipment from corrosion or scaling, supports safe plant operation, and maintains compliance with environmental regulations.

Why is the power plants water system sensitive to pH deviations?

Power plant water systems are highly sensitive to pH deviations because water chemistry directly controls the electrochemical stability of metals, solubility of dissolved minerals, steam purity, and effectiveness of treatment chemicals in high-temperature and high-pressure environments such as boilers, condensers, feedwater loops, and cooling systems. Even small deviations outside controlled ranges—such as pH 8.5–9.8 for boiler/feedwater systems or pH 6.0–9.0 for discharge water—can rapidly change corrosion rates, mineral precipitation behavior, and chemical equilibrium, especially under elevated temperatures where reaction kinetics accelerate.

If pH becomes too low, acidic conditions increase flow-accelerated corrosion (FAC), metal dissolution, and carbon dioxide corrosion in condensate systems, potentially leading to tube thinning, leaks, boiler failure, and contamination of steam circuits. If pH becomes too high, excessive alkalinity can promote caustic gouging, scaling, silica deposition, and carryover, reducing heat transfer efficiency and damaging turbines or heat exchangers. Incorrect pH also reduces the effectiveness of treatment chemicals such as ammonia, phosphates, oxygen scavengers, and corrosion inhibitors, leading to unstable water chemistry and increased maintenance. In cooling systems, improper pH can accelerate biofouling, corrosion, or scale formation, while wastewater streams outside regulatory limits (typically pH 6.0–9.0) may result in environmental non-compliance and operational penalties.

Typical pH ranges and control targets in the power plants water system

Typical pH ranges and control targets in power plant water systems are defined by the specific chemistry requirements of boilers, feedwater circuits, condensate return lines, cooling towers, demineralization units, and wastewater treatment systems, where controlled alkalinity and stable ionic balance are necessary to minimize corrosion, scaling, and steam contamination. These targets—commonly including pH 8.5–9.8 for boiler/feedwater systems, pH 8.3–9.2 for condensate systems, and pH 6.0–9.0 for discharge water—are established based on factors such as operating temperature, pressure, metallurgy, chemical treatment programs, dissolved oxygen levels, and regulatory compliance requirements.

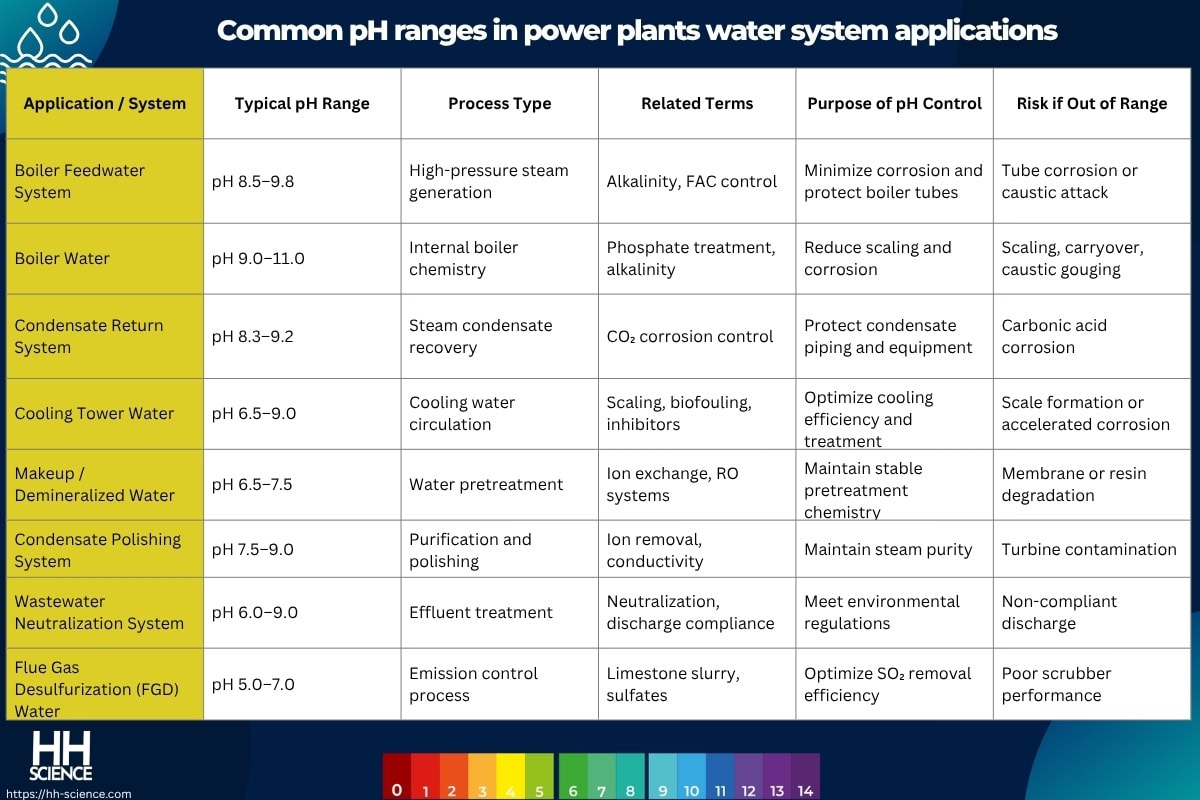

Common pH ranges in power plants water system applications

Common pH ranges in power plant water system applications typically include pH 8.5–9.8 for boiler and feedwater systems, pH 8.3–9.2 for condensate return, pH 6.5–9.0 for cooling water systems, pH 6.0–9.0 for wastewater discharge, and near-neutral ranges for demineralization and makeup water treatment. These ranges are selected to control corrosion, minimize mineral scaling, maintain steam purity, optimize chemical treatment performance, and ensure environmental compliance under high-temperature and high-pressure operating conditions.

Factors that define pH control targets

pH control targets in power plant water systems are defined by operating temperature and pressure, metallurgy, corrosion behavior, scaling tendency, steam purity requirements, dissolved oxygen levels, chemical treatment programs, water source quality, process type, heat transfer efficiency, condensate chemistry, cooling water conditions, wastewater discharge regulations, and equipment design limitations. These factors determine the optimal hydrogen ion (H⁺) balance needed to maintain stable water chemistry, protect critical equipment, and ensure efficient and compliant plant operation.

1. Operating temperature and pressure: High-temperature and high-pressure systems accelerate chemical reactions and corrosion, requiring tightly controlled pH ranges such as pH 8.5–9.8 in feedwater systems.
2. Metallurgy and material compatibility: Different metals and alloys used in boilers, condensers, and pipelines have specific pH ranges that minimize corrosion and material degradation.
3. Corrosion behavior: pH directly affects flow-accelerated corrosion (FAC), acid attack, and caustic corrosion, influencing long-term equipment reliability.
4. Scaling tendency: Mineral precipitation such as calcium carbonate, silica, and iron deposits depends strongly on pH and alkalinity balance.
5. Steam purity requirements: Stable pH control reduces dissolved solids and carryover that can contaminate turbines and steam circuits.
6. Dissolved oxygen levels: Oxygen concentration interacts with pH to influence oxidation reactions and corrosion rates in water systems.
7. Chemical treatment programs: Chemicals such as ammonia, phosphates, oxygen scavengers, and corrosion inhibitors require specific pH conditions for effective performance.
8. Water source quality: Raw water composition, conductivity, hardness, silica, and dissolved salts influence target pH settings in pretreatment and demineralization systems.
9. Process type and system function: Boilers, condensate loops, cooling towers, FGD systems, and wastewater treatment each require different pH targets based on operational chemistry.
10. Heat transfer efficiency: Proper pH minimizes deposits and corrosion products that reduce thermal conductivity and boiler efficiency.
11. Condensate chemistry: Slightly alkaline condensate conditions help prevent carbonic acid corrosion in return systems.
12. Cooling water conditions: Cooling towers require balanced pH to control corrosion, scaling, and biological growth simultaneously.
13. Wastewater discharge regulations: Effluent streams must typically remain within pH 6.0–9.0 to meet environmental compliance standards.
14. Equipment design limitations: Boiler pressure class, turbine sensitivity, and system configuration influence allowable water chemistry conditions and pH targets.

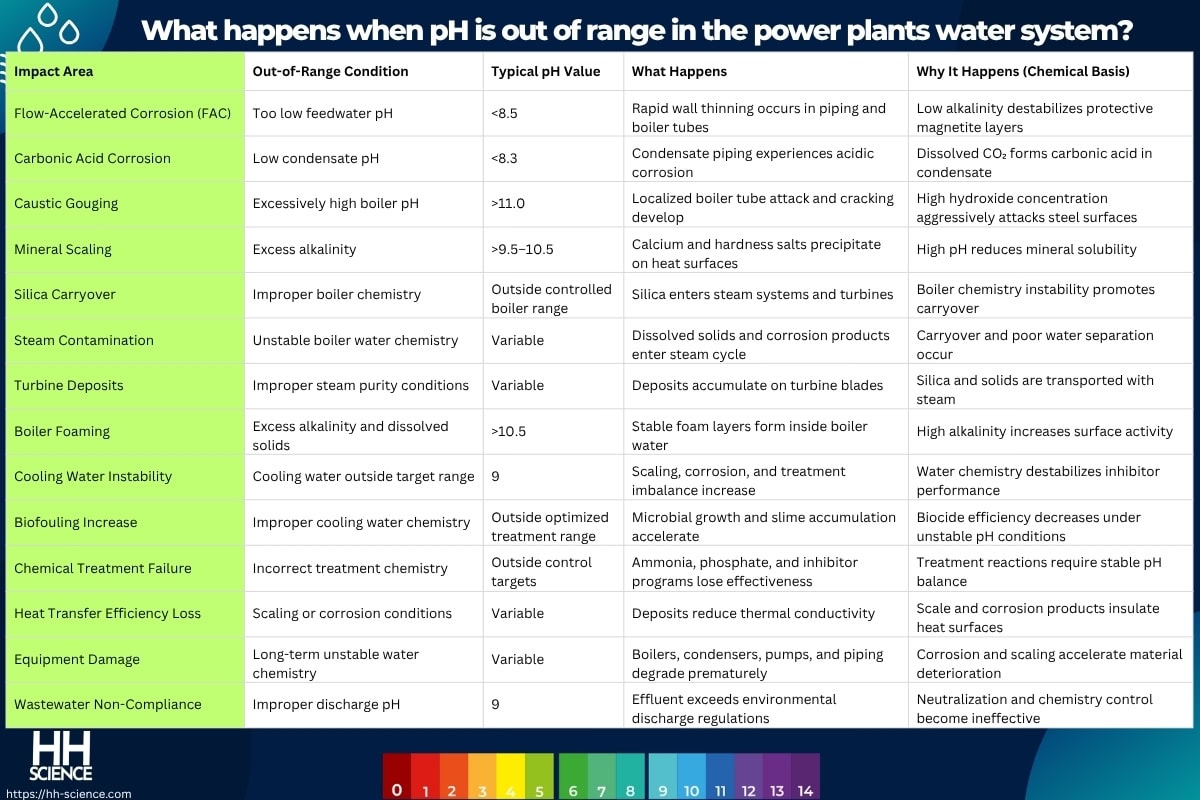

What happens when pH is out of range in the power plants water system?

When pH is out of range in power plant water systems, it can cause accelerated corrosion, mineral scaling, caustic attack, steam contamination, reduced heat transfer efficiency, chemical treatment failure, biofouling, equipment damage, turbine deposits, increased maintenance costs, and environmental non-compliance because hydrogen ion (H⁺) concentration directly controls electrochemical reactions, mineral solubility, alkalinity balance, and water chemistry stability under high-temperature and high-pressure conditions.

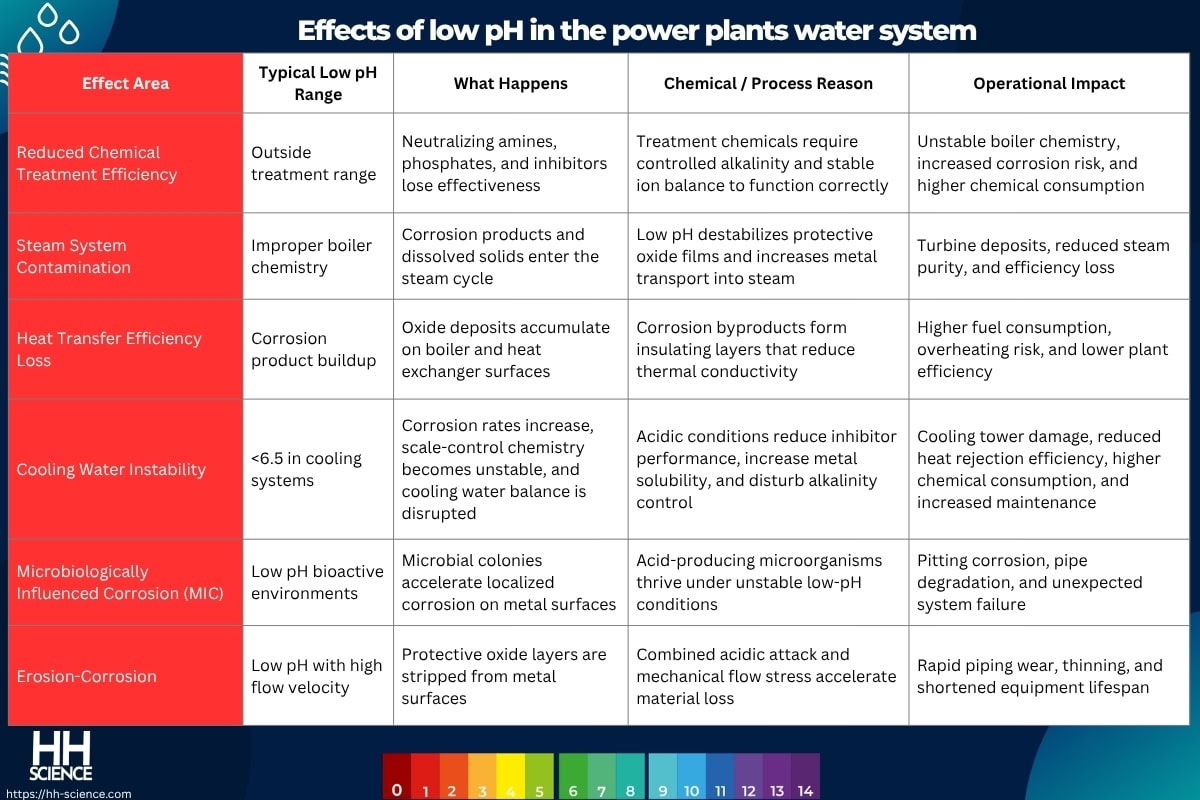

Effects of low pH in the power plants water system

Low pH in power plant water systems can cause flow-accelerated corrosion (FAC), carbonic acid corrosion, metal dissolution, boiler tube damage, condensate line failure, reduced chemical treatment effectiveness, contamination of steam systems, reduced heat transfer efficiency, and wastewater non-compliance because excess hydrogen ion (H⁺) concentration increases electrochemical corrosion reactions and destabilizes water chemistry under high-temperature and high-pressure conditions.

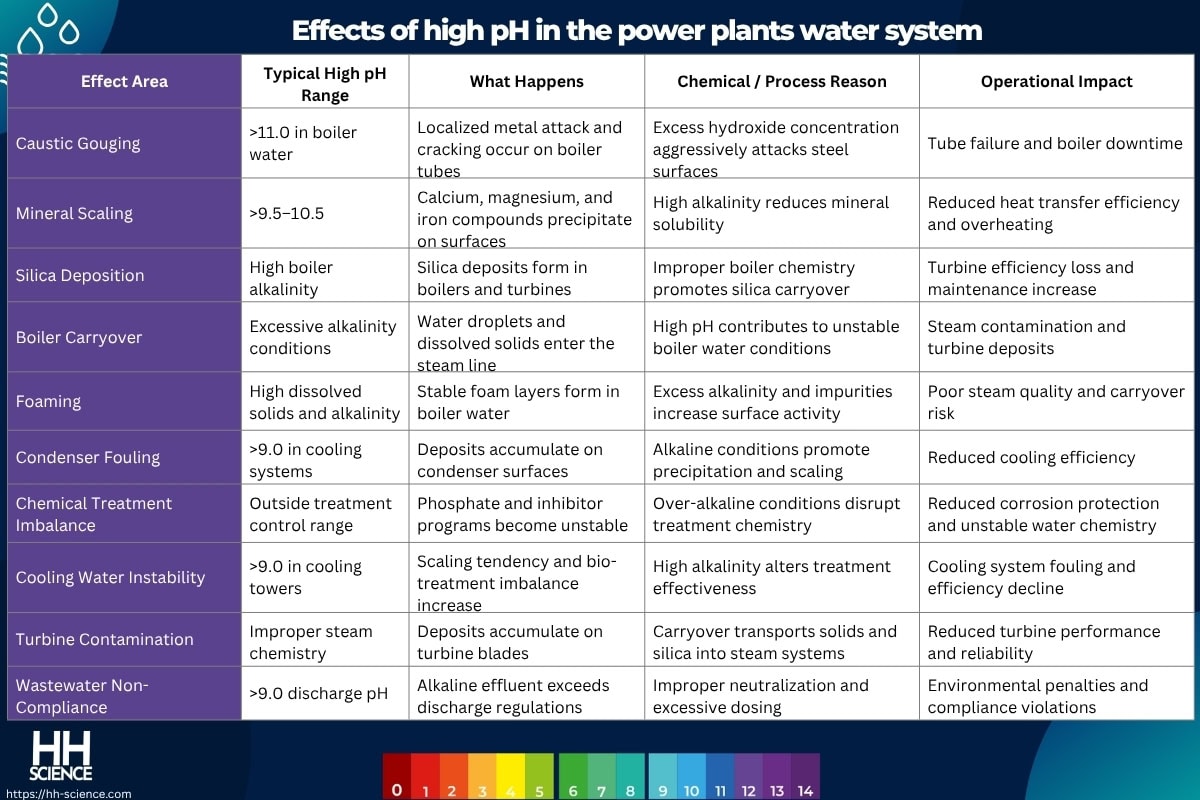

Effects of high pH in the power plants water system

High pH in power plant water systems can cause caustic gouging, mineral scaling, silica deposition, boiler carryover, foaming, reduced heat transfer efficiency, condenser fouling, chemical treatment imbalance, cooling system instability, turbine contamination, and wastewater non-compliance because excessive hydroxide ion (OH⁻) concentration changes mineral solubility, increases alkalinity, destabilizes boiler chemistry, and promotes precipitation and deposition under high-temperature operating conditions.

Operational, quality, and compliance risks

When pH is out of range in power plant water systems, operational stability, water quality, equipment reliability, and regulatory compliance are directly affected because water chemistry controls corrosion rates, mineral solubility, steam purity, and chemical treatment performance across boilers, condensers, cooling towers, and wastewater systems.

1. Operational risks: Incorrect pH can cause flow-accelerated corrosion (FAC), caustic gouging, mineral scaling, silica deposition, foaming, and cooling water instability, resulting in reduced heat transfer efficiency, tube leaks, turbine contamination, higher fuel consumption, and unplanned shutdowns, especially when feedwater falls outside pH 8.5–9.8 or cooling systems move outside pH 6.5–9.0.
2. Quality risks: Improper pH destabilizes treatment chemistry involving ammonia, phosphates, oxygen scavengers, and corrosion inhibitors, leading to poor steam purity, condensate contamination, excessive dissolved metals, and increased carryover of solids into turbines and steam circuits.
3. Compliance risks: Wastewater discharge outside regulatory limits (commonly pH 6.0–9.0) can result in environmental violations, while inadequate monitoring, calibration drift, or unstable water chemistry may also lead to failure to meet plant operating specifications, OEM boiler chemistry guidelines, and environmental reporting requirements.

pH measurement challenges in the power plants water system

pH measurement in power plant water systems presents significant challenges because monitoring points are exposed to high temperatures, high pressures, ultra-low conductivity water, rapid chemistry changes, dissolved gases, scaling, corrosion products, and chemical treatment fluctuations across boilers, feedwater systems, condensate loops, cooling towers, and wastewater treatment units. These conditions—combined with the need for tight control ranges such as pH 8.5–9.8 in feedwater systems, accurate low-conductivity measurement, and continuous operation in harsh industrial environments—require highly stable sensors, precise temperature compensation, contamination-resistant reference systems, and reliable calibration practices to maintain accurate and dependable pH control.

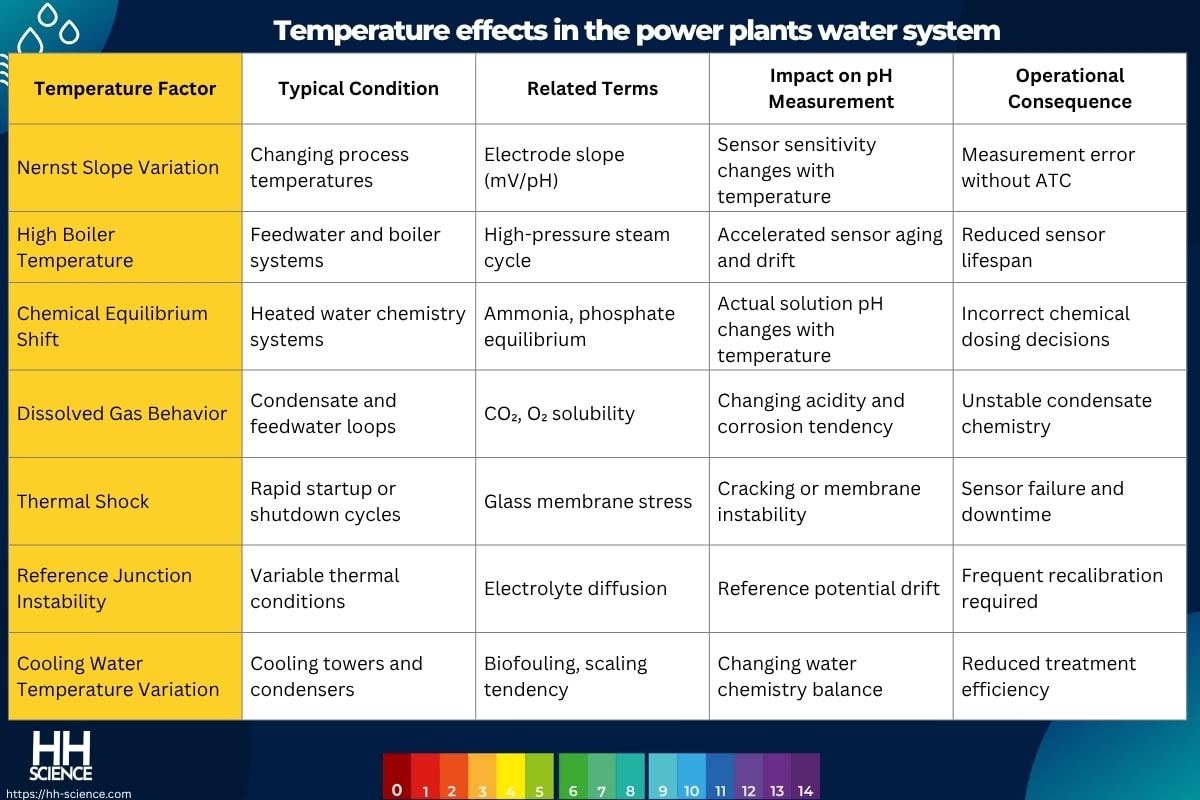

Temperature effects

Temperature effects are a major pH measurement challenge in power plant water systems because water chemistry operates under elevated and continuously changing thermal conditions—often ranging from 25 °C in cooling systems to 200–300 °C equivalent process conditions in boilers and feedwater circuits—where temperature directly influences chemical equilibrium, ion activity, conductivity, and pH electrode response according to the Nernst equation (~59.16 mV/pH at 25 °C). High temperatures accelerate corrosion reactions, alter ammonia and phosphate treatment chemistry, change dissolved gas behavior (CO₂ and O₂), and increase sensor aging, while rapid thermal fluctuations can create measurement drift (often ±0.1–0.3 pH), unstable readings, reference junction stress, and shortened sensor lifespan if proper automatic temperature compensation (ATC) and high-temperature sensor designs are not used.

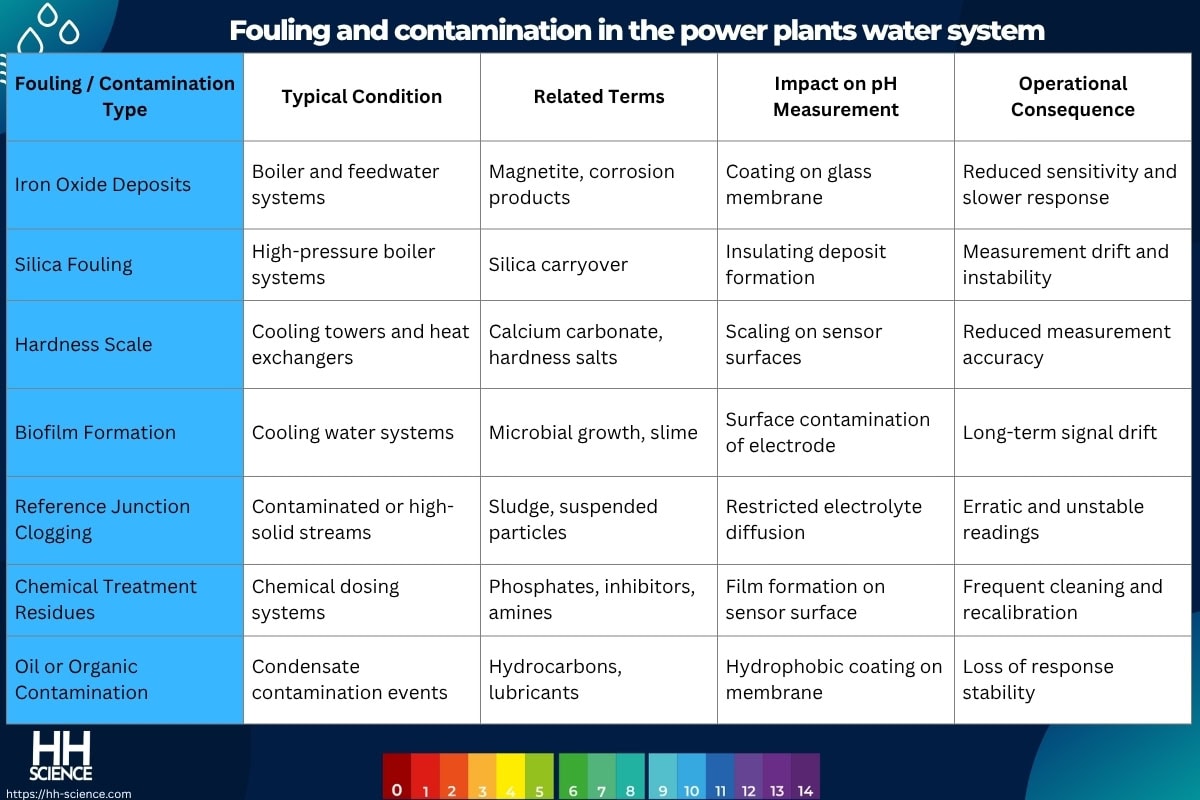

Fouling and contamination

Fouling and contamination are major pH measurement challenges in power plant water systems because boilers, condensate loops, cooling towers, and wastewater systems continuously expose sensors to corrosion products, iron oxides, silica deposits, hardness scale, sludge, biofilms, and chemical treatment residues that can accumulate on the pH glass membrane or clog the reference junction. These deposits interfere with hydrogen ion (H⁺) exchange, increase membrane impedance, restrict reference electrolyte diffusion, and destabilize low-conductivity measurements, resulting in slower response times, measurement drift (often ±0.1–0.3 pH), unstable readings, and reduced sensor lifespan—especially in high-temperature or high-pressure water chemistry environments.

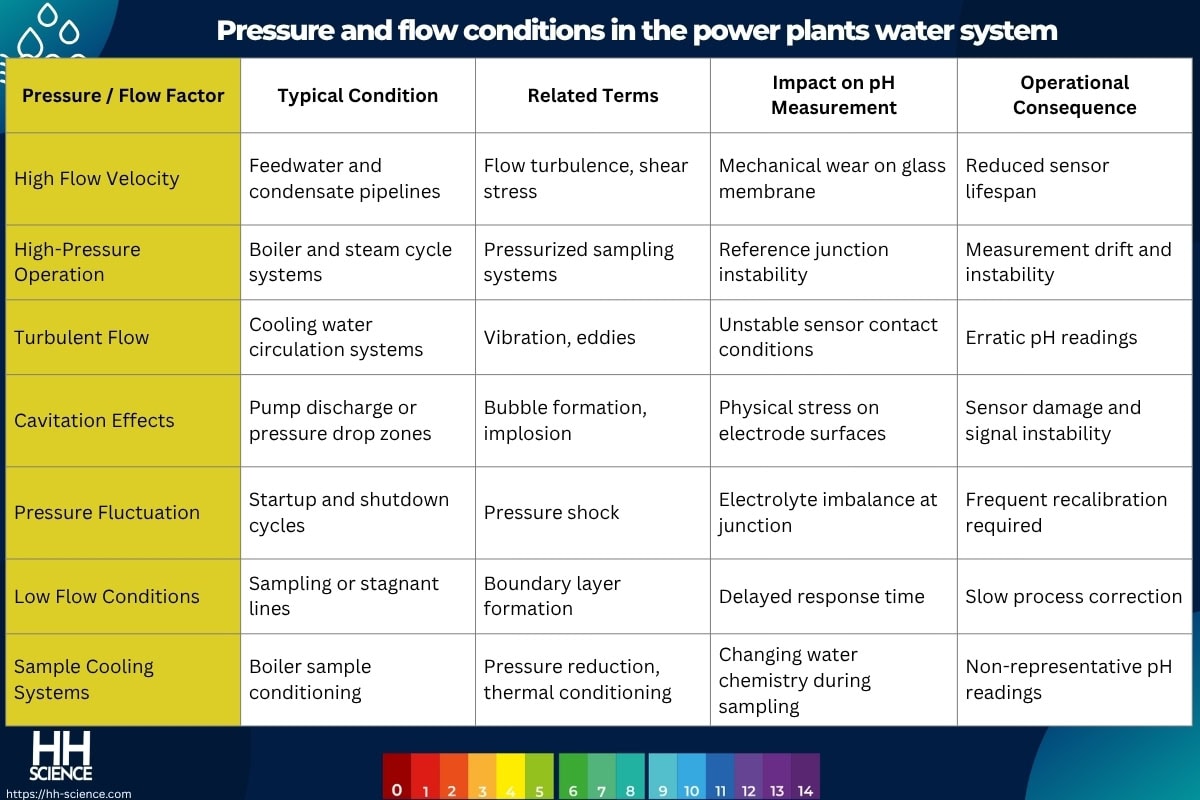

Pressure and flow conditions

Pressure and flow conditions create major pH measurement challenges in power plant water systems because sensors are installed in high-pressure feedwater lines, high-velocity condensate circuits, cooling water loops, and boiler sampling systems where rapid flow, pressure fluctuations, cavitation, and turbulence can affect the stability of the pH electrode and reference junction. These conditions can disturb the diffusion layer around the glass membrane, alter electrolyte flow at the reference junction, introduce vibration and mechanical stress, and cause unstable low-conductivity measurements, resulting in response delays, signal noise, measurement drift (often ±0.1–0.3 pH), and shortened sensor lifespan in continuous high-temperature operations.

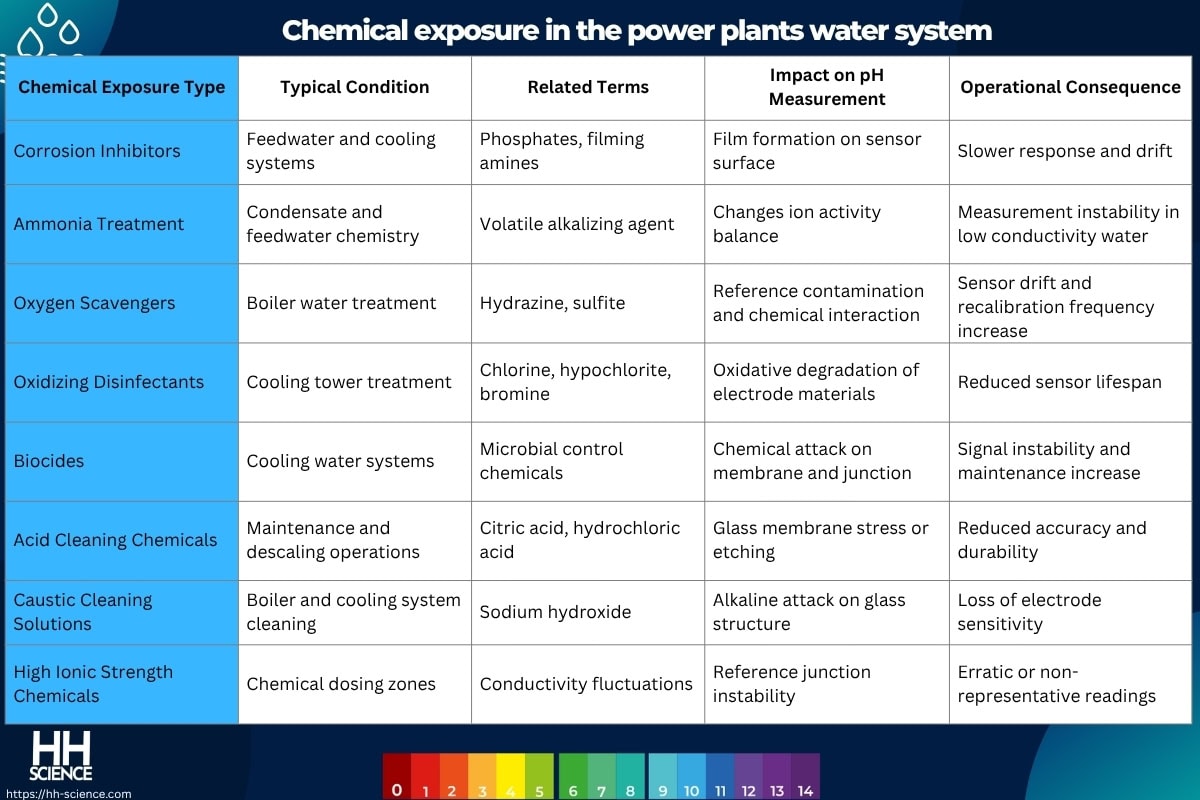

Chemical exposure (disinfectants, corrosion inhibitors)

Chemical exposure is a major pH measurement challenge in power plant water systems because sensors are continuously exposed to corrosion inhibitors, ammonia, phosphates, oxygen scavengers, biocides, oxidizing disinfectants, neutralizing amines, and cleaning chemicals used to control corrosion, scaling, and microbial growth in boilers, condensate loops, cooling towers, and wastewater treatment systems. These chemicals can chemically attack the glass membrane, poison or contaminate the reference junction, alter ion exchange behavior, form insulating films, and destabilize low-conductivity measurements, leading to slope deviation from the theoretical response (~59.16 mV/pH at 25 °C), signal drift (often ±0.1–0.3 pH), slower response, and reduced sensor lifespan under continuous high-temperature operation.

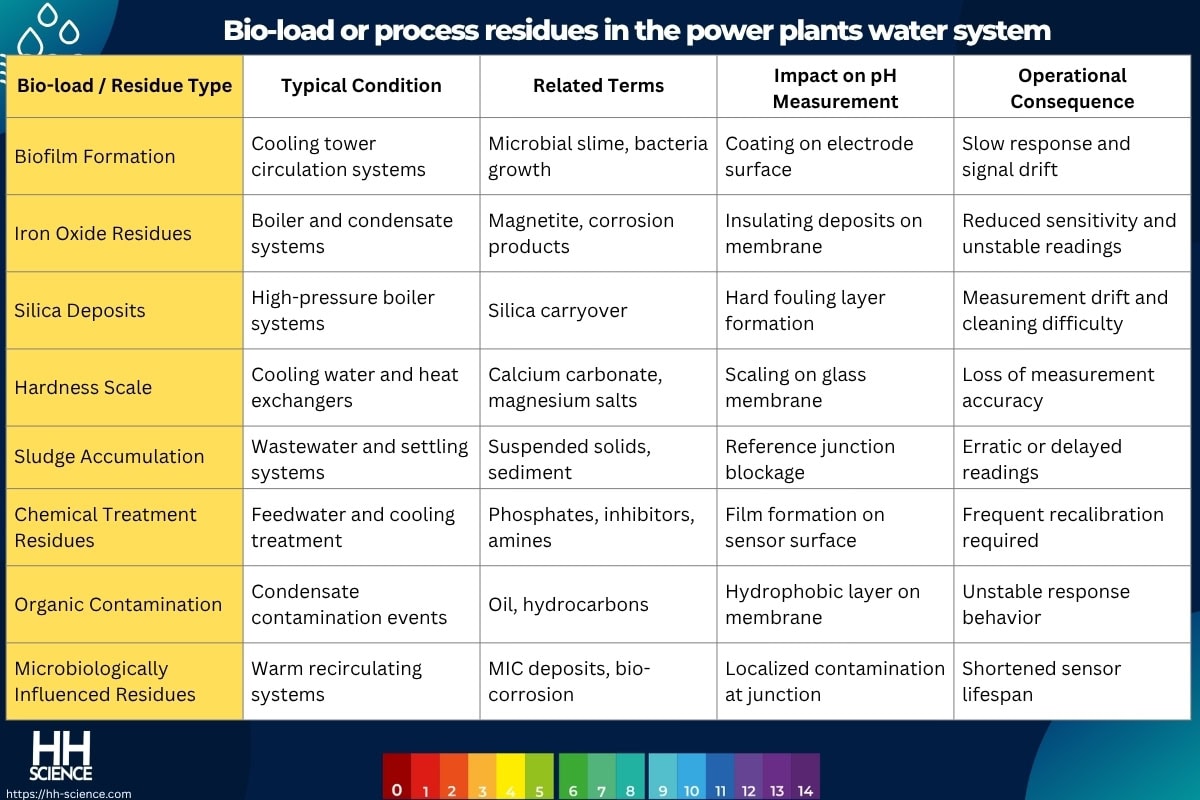

Bio-load or process residues

Bio-load and process residues are significant pH measurement challenges in power plant water systems because cooling towers, wastewater treatment units, condensate systems, and boiler water circuits can accumulate biofilms, sludge, iron oxides, silica deposits, hardness scale, corrosion products, and chemical treatment residues during continuous operation. These contaminants coat the pH glass membrane, clog the reference junction, interfere with hydrogen ion (H⁺) exchange, and destabilize low-conductivity measurements, causing slower response times, signal drift (often ±0.1–0.3 pH), unstable readings, increased calibration frequency, and reduced sensor lifespan—especially in warm recirculating water systems where microbial growth and deposition rates are high.

Common pH sensor types used in power plants water system

Common pH sensor types used in power plant water systems include combination glass electrodes, low-conductivity pH sensors, differential pH sensors, high-temperature and high-pressure pH sensors, digital or smart pH sensors, flow-through sample chamber sensors, double- or triple-junction reference electrodes, and ISFET or solid-state pH sensors for specialized applications. These sensor types are selected to handle challenges such as ultra-low conductivity feedwater, high-temperature boiler chemistry, condensate corrosion control, cooling tower fouling, chemical treatment fluctuations, and continuous online monitoring—typically within ranges such as pH 8.5–9.8 for feedwater systems, pH 8.3–9.2 for condensate systems, and pH 6.0–9.0 for wastewater discharge—while maintaining stable accuracy (commonly ±0.05–0.10 pH) and reliable long-term operation in high-pressure industrial environments.

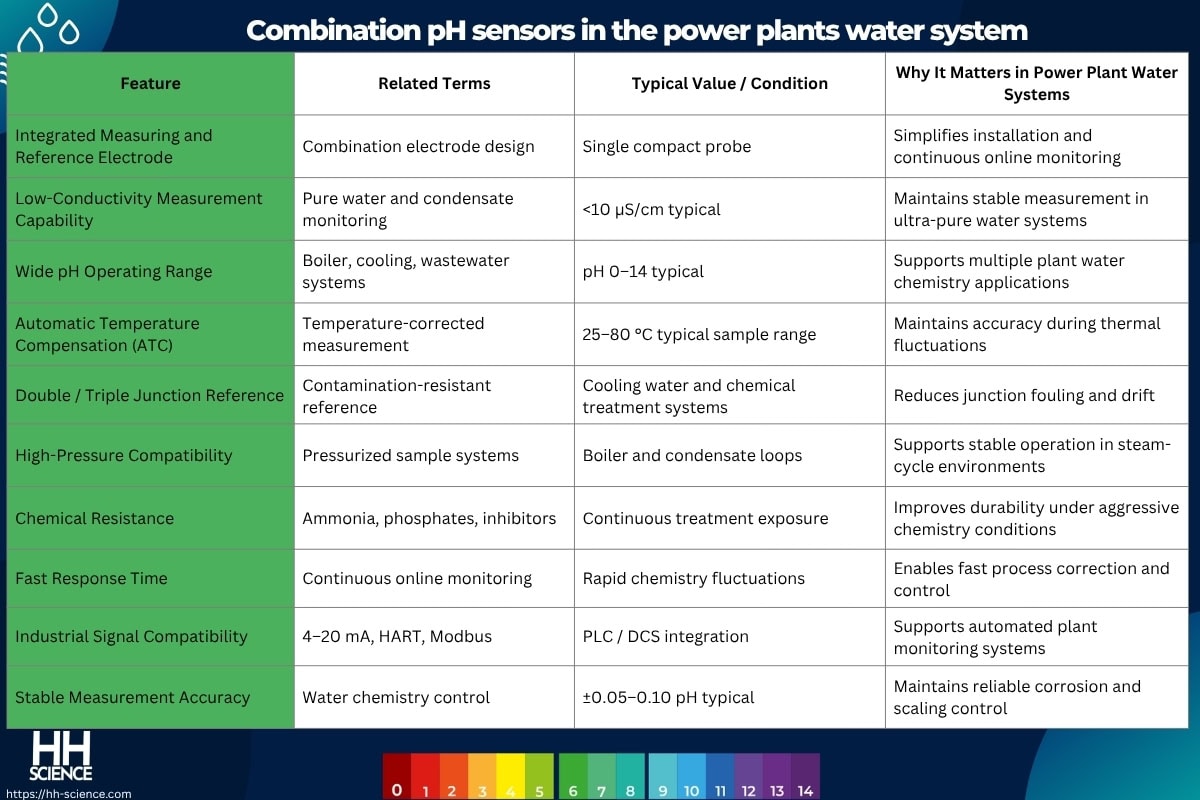

Combination pH sensors

Combination pH sensors are widely used in power plant water systems because they integrate the measuring glass electrode and reference electrode into a single compact assembly, allowing stable and continuous pH monitoring in applications such as boiler feedwater, condensate return, cooling water, and wastewater treatment. Their design supports critical power industry requirements including low-conductivity measurement, resistance to chemical treatment exposure, automatic temperature compensation (ATC), high-pressure operation, and stable accuracy (typically ±0.05–0.10 pH) across controlled ranges such as pH 8.5–9.8 for feedwater systems and pH 6.0–9.0 for discharge water.

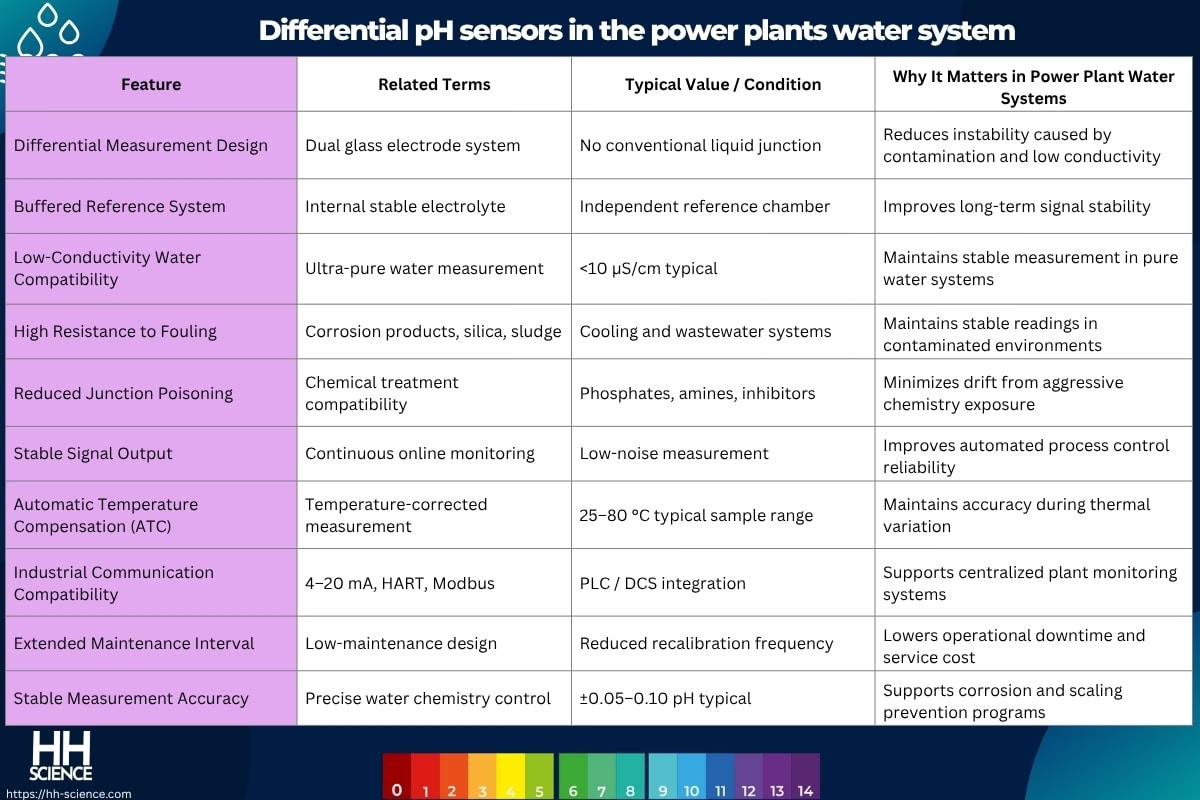

Differential pH sensors

Differential pH sensors are highly suitable for power plant water systems because they provide stable measurements in applications where conventional reference junctions are vulnerable to contamination from corrosion products, chemical treatment residues, sludge, biofilms, silica deposits, and low-conductivity water conditions. By using a differential measurement design with two glass electrodes and an internally buffered reference system instead of a traditional flowing junction, these sensors reduce drift, improve stability in ultra-pure water and chemically treated systems, and maintain reliable accuracy (typically ±0.05–0.10 pH) across boiler feedwater, condensate return, cooling water, and wastewater applications.

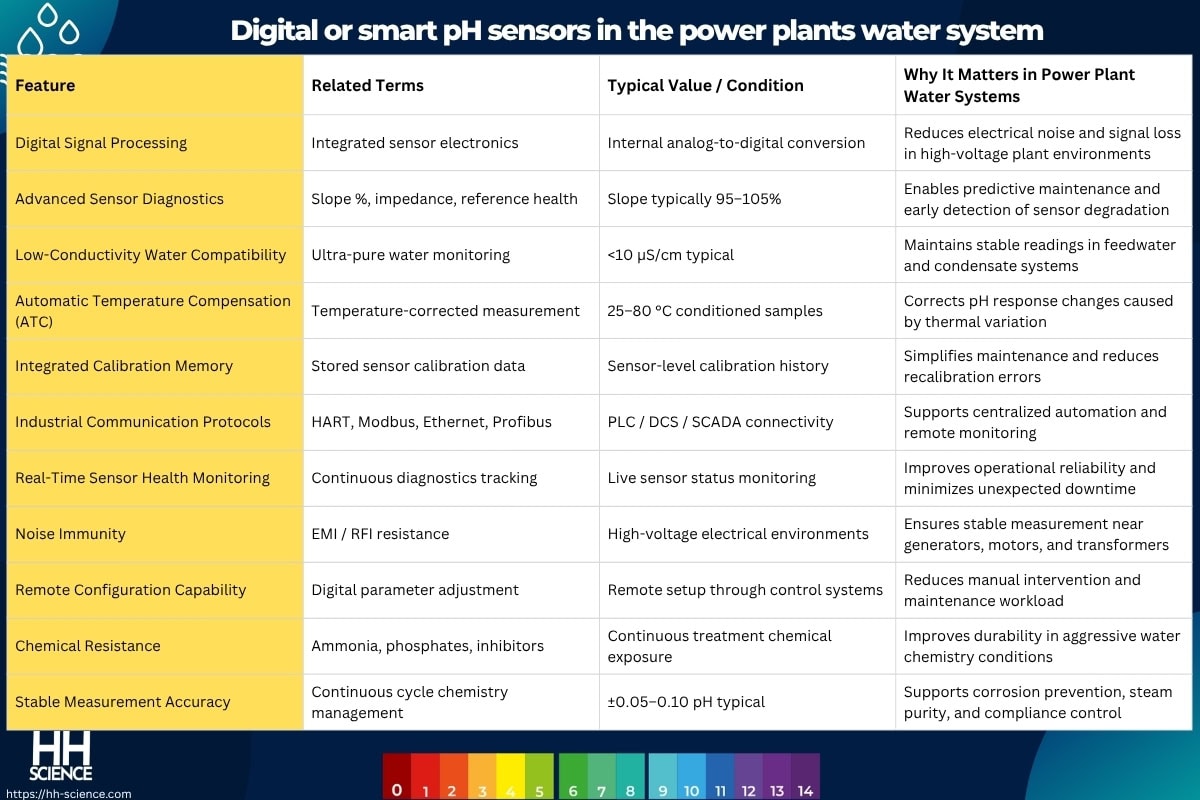

Digital or smart pH sensors

Digital or smart pH sensors are highly suitable for power plant water systems because they provide stable, low-noise, and diagnostics-driven measurements in applications involving ultra-low conductivity water, high-temperature feedwater chemistry, cooling tower treatment, and continuous online monitoring across boilers, condensate systems, and wastewater units. By converting the signal into digital form inside the sensor, they reduce interference from long cable runs and electrically noisy environments, while enabling advanced diagnostics such as slope monitoring, glass impedance tracking, predictive maintenance, automatic temperature compensation (ATC), and integration with PLC/DCS/SCADA systems to maintain accurate water chemistry control (typically ±0.05–0.10 pH).

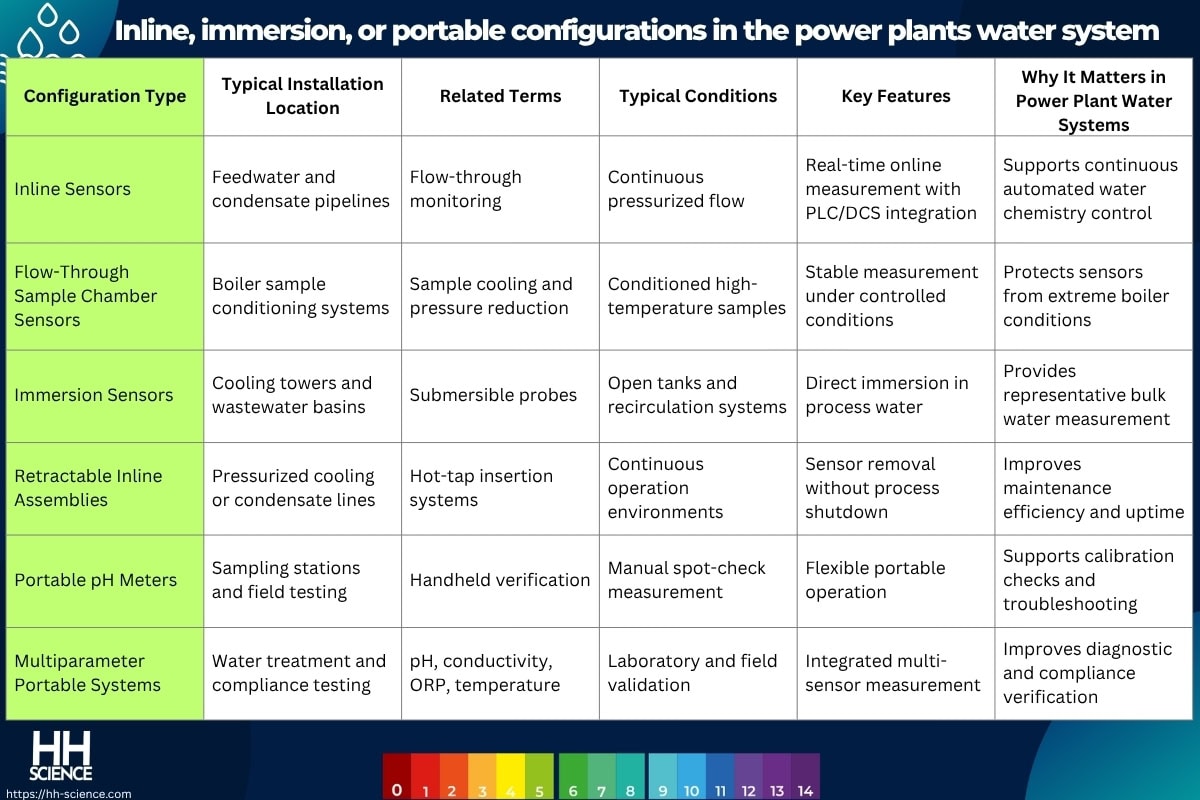

Inline, immersion, or portable configurations

Inline, immersion, and portable pH sensor configurations are all used in power plant water systems because different process stages—such as boiler feedwater loops, condensate return systems, cooling towers, demineralization units, and wastewater treatment—require specific installation methods based on pressure, temperature, flow conditions, accessibility, and monitoring objectives. Inline configurations support continuous automated monitoring in pressurized pipelines, immersion sensors provide stable measurement in tanks and open basins, and portable meters are used for spot-check verification, calibration confirmation, and troubleshooting to maintain accurate water chemistry control within ranges such as pH 8.5–9.8 for feedwater systems and pH 6.0–9.0 for discharge water.

Installation and maintenance considerations in power plants water system

Installation and maintenance considerations in power plant water systems are critical because pH sensors must operate reliably in environments involving high temperatures, pressurized sampling systems, ultra-low conductivity water (<10 µS/cm), chemical treatment exposure, rapid flow conditions, and continuous online monitoring across boilers, condensate loops, cooling towers, demineralization units, and wastewater treatment systems. Proper installation in representative sampling locations with controlled flow, pressure reduction, and sample cooling—combined with regular calibration using certified buffers (pH 4.01, 7.00, 10.01), cleaning to remove iron oxides, silica, scale, or biofilm deposits, and maintenance of reference junction integrity and automatic temperature compensation (ATC)—ensures stable measurement accuracy (typically ±0.05–0.10 pH), reliable corrosion and scaling control, and long-term operational stability.

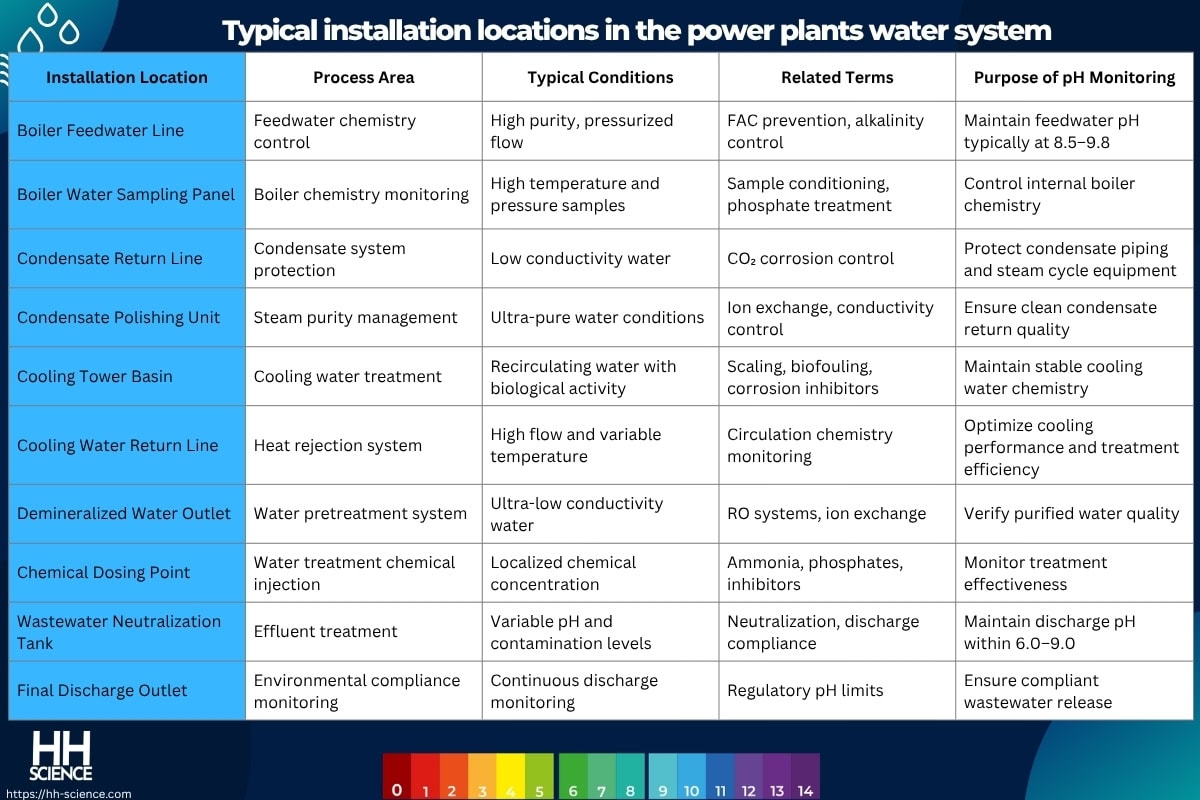

Typical installation locations

Typical pH sensor installation locations in power plant water systems are selected at critical process points where water chemistry directly affects corrosion control, scaling prevention, steam purity, cooling efficiency, and environmental compliance. These locations include boiler feedwater systems, condensate return lines, cooling tower circuits, sample conditioning panels, demineralized water systems, wastewater treatment units, and discharge outlets, each requiring specific sensor configurations based on pressure, conductivity, temperature, flow stability, and contamination risk.

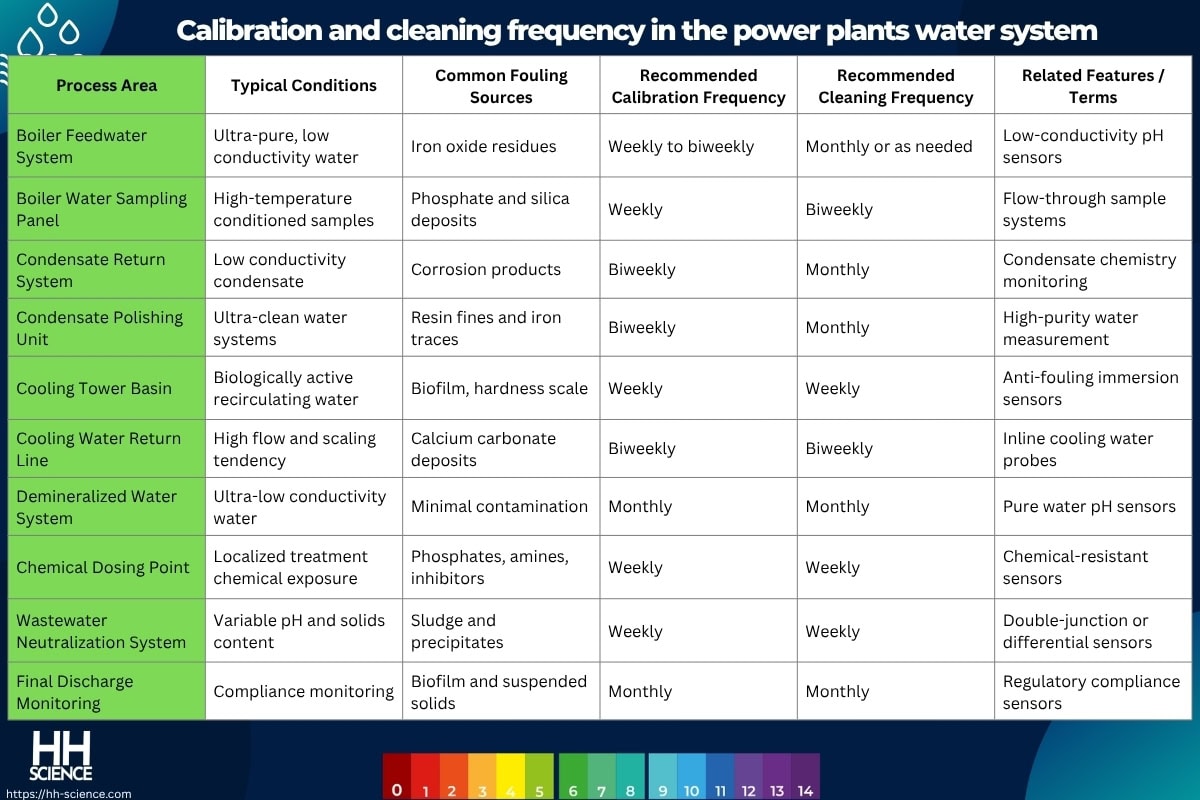

Calibration and cleaning frequency

Calibration and cleaning frequency in power plant water systems depend on factors such as ultra-low conductivity water, high-temperature operation, chemical treatment exposure, corrosion products, silica scaling, cooling tower biofouling, and continuous online monitoring requirements across boiler, condensate, cooling, and wastewater systems. To maintain stable accuracy (typically ±0.05–0.10 pH) and reliable corrosion or scaling control, sensors are routinely calibrated using certified buffers (pH 4.01, 7.00, 10.01) and cleaned to remove deposits such as magnetite, silica, hardness scale, biofilm, and treatment chemical residues.

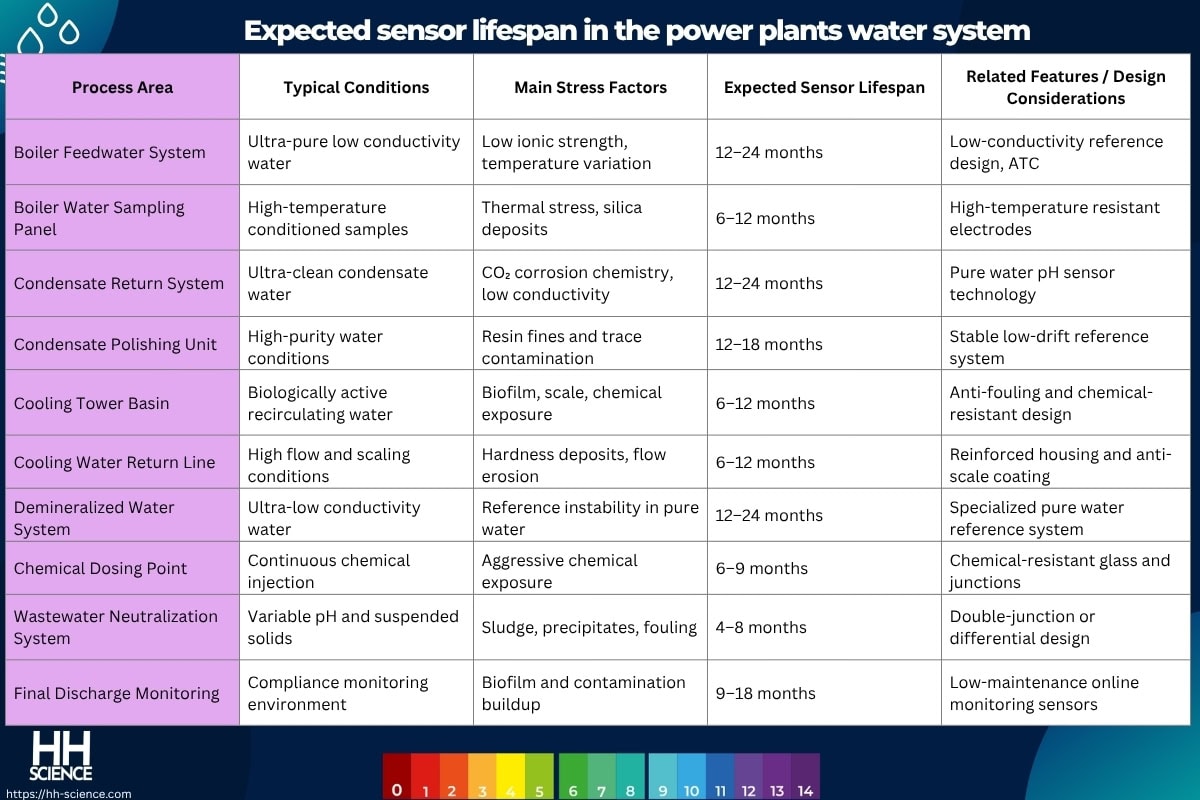

Expected sensor lifespan

Expected pH sensor lifespan in power plant water systems depends on exposure to high temperature, ultra-low conductivity water, chemical treatment programs, pressure fluctuations, corrosion products, silica scaling, cooling water fouling, and continuous online operation across boiler, condensate, cooling, and wastewater systems. These operating conditions affect glass membrane aging, reference junction stability, electrode slope retention (ideally 95–105% of 59.16 mV/pH at 25 °C), and overall sensor drift, making features such as low-conductivity reference designs, double-junction systems, chemical-resistant materials, and automatic temperature compensation (ATC) essential for extending service life and maintaining stable accuracy (typically ±0.05–0.10 pH).

Trade-offs between accuracy, maintenance, and durability

In power plant water systems, trade-offs between accuracy, maintenance, and durability occur because pH sensors must measure ultra-low conductivity water (<10 µS/cm), high-temperature samples, chemically treated streams, and contaminated cooling or wastewater systems while maintaining tight control ranges such as pH 8.5–9.8 for feedwater systems and measurement accuracy typically around ±0.05–0.10 pH. High-accuracy sensors designed for pure water and precise boiler chemistry control often use highly sensitive low-impedance glass membranes and specialized reference systems that require more frequent calibration and careful maintenance, whereas more durable sensors with reinforced housings, double-junction references, anti-fouling coatings, and chemical-resistant materials provide longer service life and lower maintenance frequency but may respond more slowly or offer slightly reduced sensitivity in critical ultra-pure water applications.

Regulatory or quality considerations in the power plants water system

Regulatory and quality considerations in power plant water systems are critical because pH directly affects boiler chemistry stability, corrosion control, steam purity, cooling water treatment efficiency, wastewater discharge compliance, and the long-term reliability of high-value equipment such as boilers, turbines, condensers, and heat exchangers operating under high-temperature and high-pressure conditions. Maintaining tightly controlled ranges—such as pH 8.5–9.8 for feedwater systems, pH 8.3–9.2 for condensate systems, and pH 6.0–9.0 for wastewater discharge—through continuous monitoring, certified calibration buffers (pH 4.01, 7.00, 10.01), low-conductivity measurement techniques, and traceable data logging ensures compliance with environmental regulations, OEM boiler chemistry guidelines, and plant quality standards while minimizing corrosion, scaling, carryover, and operational risk.

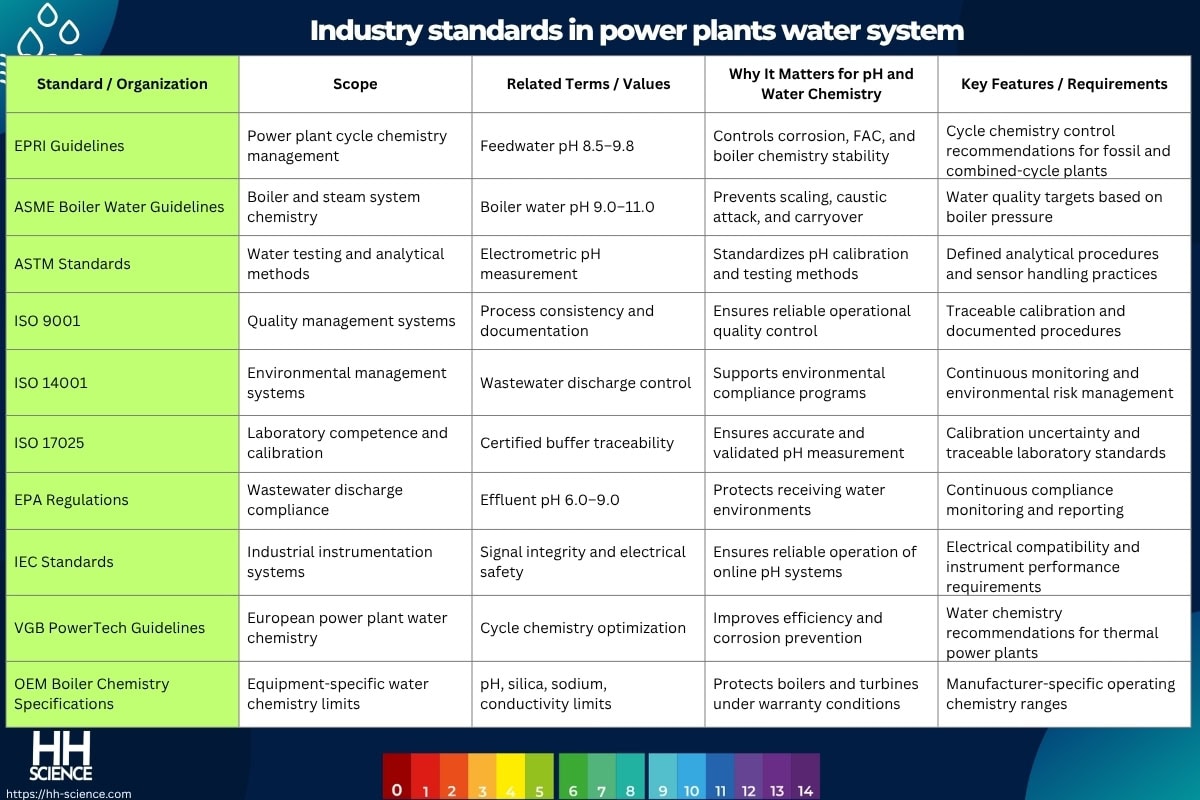

Industry standards in power plants water system

Industry standards in power plant water systems define the required practices for boiler water chemistry, feedwater quality, condensate protection, cooling water treatment, wastewater discharge, instrumentation calibration, and environmental compliance to ensure safe, efficient, and reliable power generation. These standards establish limits and best practices for parameters such as pH, conductivity, dissolved oxygen, silica, phosphate, sodium, and corrosion control, helping operators maintain stable water chemistry, prevent equipment damage, and comply with regulatory and OEM operational requirements.

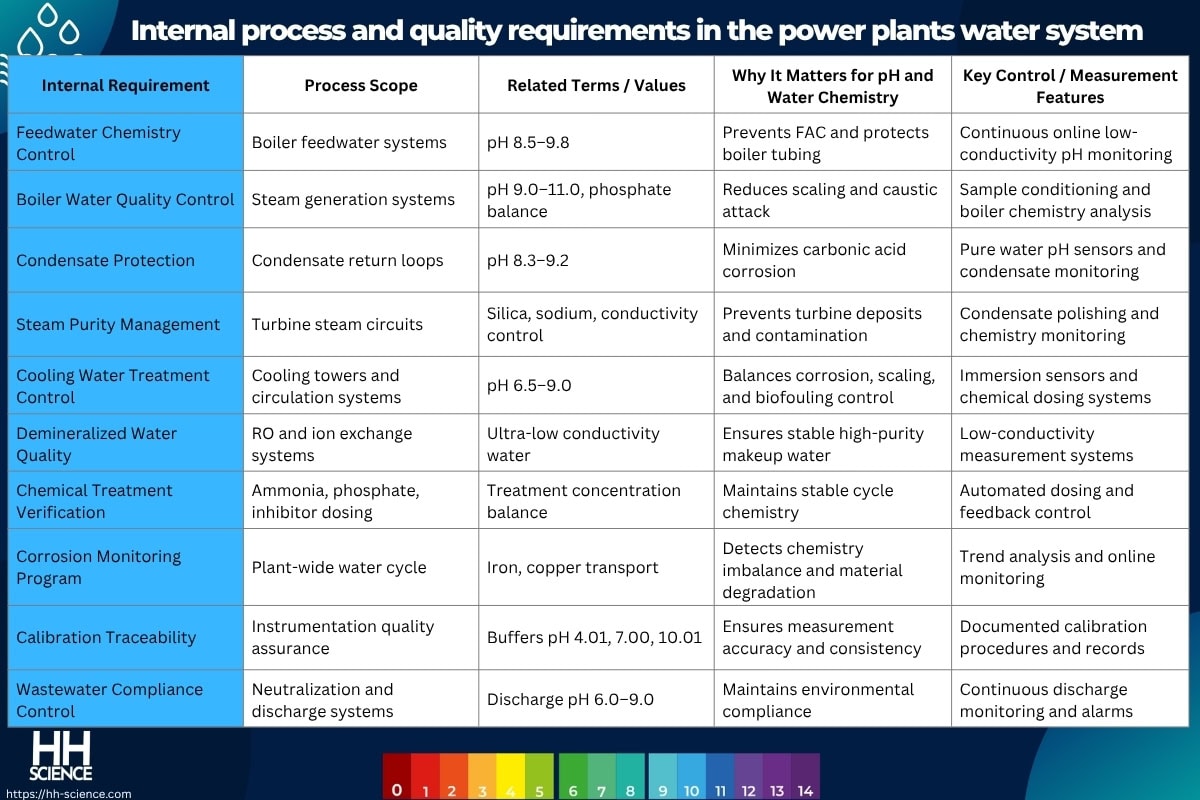

Internal process and quality requirements in the power plants water system

Internal process and quality requirements in power plant water systems define how pH, conductivity, dissolved oxygen, silica, alkalinity, and chemical treatment performance must be monitored and controlled throughout boilers, feedwater loops, condensate systems, cooling towers, demineralization units, and wastewater treatment processes. These requirements are established to maintain stable cycle chemistry, minimize flow-accelerated corrosion (FAC), prevent scaling and carryover, protect turbine and boiler components, ensure efficient heat transfer, and maintain compliance with plant operating specifications and environmental discharge limits such as pH 6.0–9.0.

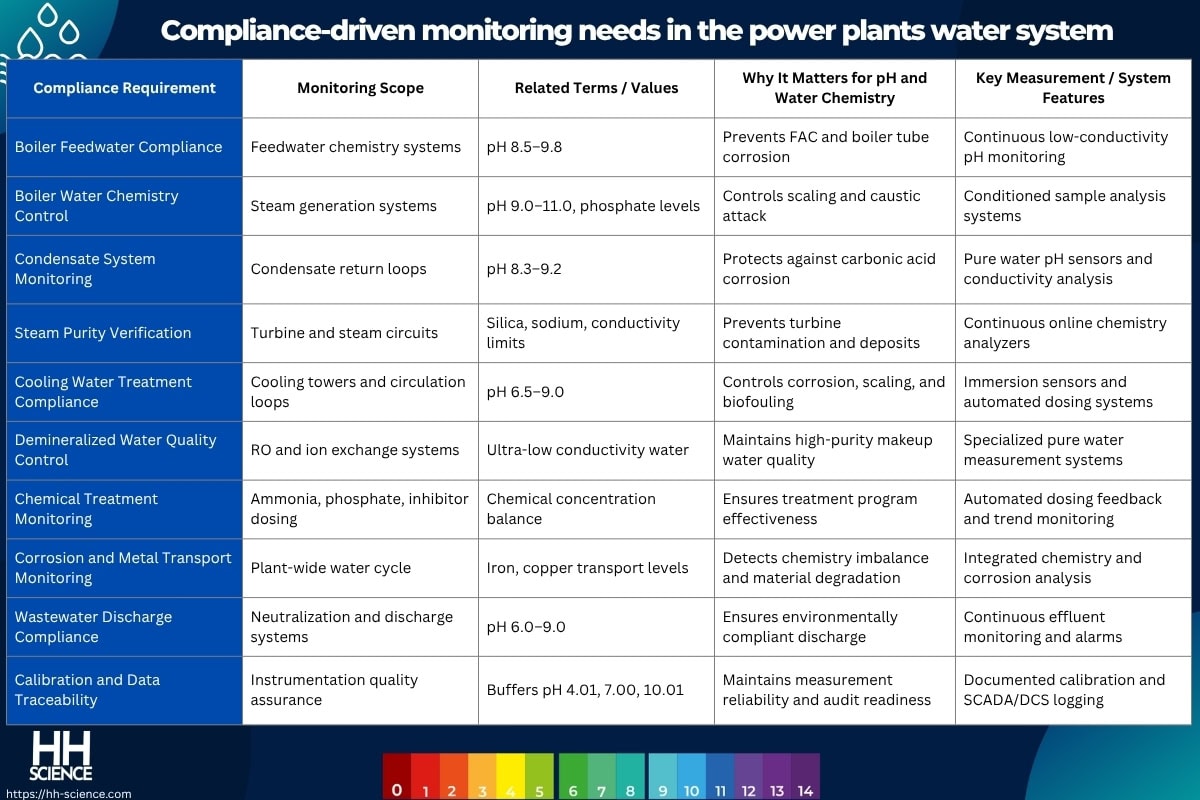

Compliance-driven monitoring needs in the power plants water system

Compliance-driven monitoring needs in power plant water systems are required to ensure safe boiler operation, corrosion prevention, steam purity, cooling water stability, wastewater discharge compliance, and adherence to environmental, operational, and OEM chemistry standards across the entire water–steam cycle. Continuous monitoring of parameters such as pH, conductivity, dissolved oxygen, silica, sodium, phosphate, and chemical treatment balance is essential to maintain controlled ranges like pH 8.5–9.8 for feedwater systems and pH 6.0–9.0 for discharge water, preventing equipment damage, operational instability, and regulatory violations.

Selecting the right pH measurement approach in the power plants water system

Selecting the right pH measurement approach in power plant water systems is critical because applications such as boiler feedwater, condensate return, cooling water treatment, demineralized water production, and wastewater neutralization involve ultra-low conductivity conditions (<10 µS/cm), high temperatures and pressures, chemical treatment exposure, dissolved gases, corrosion products, and continuous online monitoring requirements that directly affect measurement stability and water chemistry control. Choosing appropriate technologies—such as low-conductivity pH sensors, differential or double-junction reference systems, digital smart sensors with automatic temperature compensation (ATC), flow-through sample conditioning assemblies, and chemically resistant sensor materials—ensures accurate measurement (typically ±0.05–0.10 pH), reliable corrosion and scaling prevention, stable steam purity management, reduced maintenance, and compliance with operational targets such as pH 8.5–9.8 for feedwater systems and pH 6.0–9.0 for discharge water.

Decision support for the power plants water system

Decision support in power plant water systems evaluates factors such as boiler pressure class, feedwater conductivity (<10 µS/cm), operating temperature, chemical treatment program, corrosion risk, scaling tendency, sample conditioning requirements, and discharge compliance limits (pH 6.0–9.0) to determine the most suitable pH measurement approach. By analyzing these process conditions alongside target chemistry ranges such as pH 8.5–9.8 for feedwater systems and pH 8.3–9.2 for condensate systems, decision support helps engineers select the correct sensor technology, installation configuration, maintenance interval, and automation strategy to ensure stable and reliable water chemistry control.

Application-driven measurement strategies

Application-driven measurement strategies align pH monitoring methods with specific power plant water cycle processes including boiler feedwater treatment, condensate return protection, cooling tower chemistry, demineralized water production, and wastewater neutralization, each having different conductivity, pressure, temperature, and contamination characteristics. These strategies define whether low-conductivity sensors, differential reference systems, flow-through sample chambers, immersion probes, or digital smart analyzers are required, ensuring accurate measurement, minimized drift, improved corrosion prevention, and optimized treatment chemical performance under continuous operating conditions.

Linking power plants water system  to sensor selection and OEM solutions

Linking power plant water systems to sensor selection and OEM solutions ensures that pH instrumentation is specifically engineered for harsh industrial environments involving high temperatures, pressurized sample lines, ultra-pure water, silica contamination, corrosion products, and chemical treatment exposure. OEM solutions typically combine specialized low-conductivity pH sensors, automatic temperature compensation (ATC), double-junction or differential reference systems, sample conditioning panels, digital communication protocols (HART, Modbus, Ethernet), and chemically resistant materials to provide long-term stability, reduced maintenance, and reliable integration with plant PLC/DCS/SCADA systems for continuous water chemistry management.
